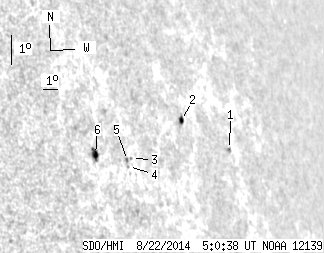

SDO HMI 2014-08-22 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.85 | 17.28 | 6.05 | 18.17 | 15.50 | 52.83 | 62.66 | 283.93 | 0.8823 | 130.9 | 96.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-22 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 2.32 | 14.73 | 58.53 | 68.36 | 283.10 | 0.9247 | -444.0 | -346.3 | |
| 2.52 | 5.04 | 2.89 | 5.76 | 15.98 | 55.46 | 65.29 | 284.43 | 0.9036 | -434.1 | -267.0 | |
| 0.00 | 0.72 | 0.00 | 0.73 | 15.21 | 51.49 | 61.32 | 283.58 | 0.8729 | 215.0 | 161.2 | |
| 0.00 | 1.08 | 0.00 | 1.08 | 14.99 | 51.18 | 61.01 | 283.33 | 0.8703 | 542.0 | 469.2 | |
| 0.00 | 1.71 | 0.00 | 1.71 | 15.18 | 51.21 | 61.04 | 283.54 | 0.8706 | 566.0 | 465.5 | |
| 3.33 | 6.93 | 3.16 | 6.57 | 15.56 | 49.35 | 59.19 | 284.02 | 0.8548 | 535.1 | 386.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
