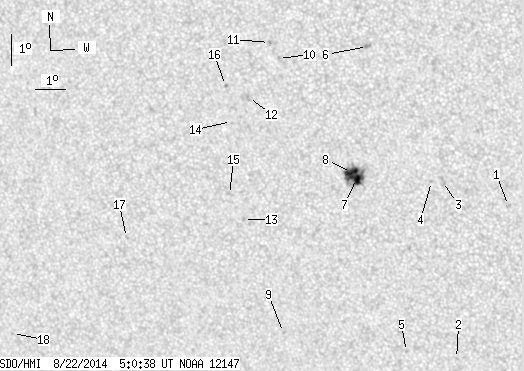

SDO HMI 2014-08-22 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.41 | 61.36 | 11.03 | 33.32 | -9.50 | 332.75 | -17.42 | 133.38 | 0.4082 | 715.1 | 486.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-22 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.16 | 0.00 | 1.15 | -10.30 | 338.15 | -12.02 | 145.12 | 0.3597 | 799.0 | 591.5 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -15.28 | 336.22 | -13.95 | 148.19 | 0.4429 | 707.0 | 485.3 | |
| 0.00 | 3.96 | 0.00 | 2.11 | -9.59 | 336.09 | -14.07 | 139.53 | 0.3710 | 399.0 | 543.6 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -9.60 | 335.74 | -14.42 | 138.85 | 0.3748 | 704.0 | 519.2 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -15.10 | 334.61 | -15.56 | 145.09 | 0.4544 | 634.0 | 454.9 | |
| 0.00 | 2.88 | 0.00 | 1.52 | -5.43 | 333.87 | -16.30 | 126.87 | 0.3507 | 980.0 | 849.2 | |
| 11.60 | 34.90 | 6.27 | 18.86 | -9.59 | 333.35 | -16.82 | 134.41 | 0.4010 | 1082.9 | 521.1 | |
| 8.81 | -7.00 | 4.76 | -7.00 | -9.40 | 333.20 | -16.97 | 133.81 | 0.4007 | 1093.9 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -14.63 | 330.60 | -19.57 | 138.08 | 0.4871 | -696.0 | -599.8 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -5.91 | 331.00 | -19.16 | 123.47 | 0.3930 | 827.0 | 684.9 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -5.43 | 330.73 | -19.43 | 122.05 | 0.3925 | 871.0 | 691.1 | |
| 0.00 | 2.70 | 0.00 | 1.47 | -7.17 | 329.98 | -20.19 | 124.63 | 0.4179 | 732.0 | 619.3 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -11.03 | 329.58 | -20.59 | 131.10 | 0.4599 | 810.0 | 642.9 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -7.95 | 329.38 | -20.78 | 125.34 | 0.4326 | 260.0 | 378.5 | |
| 0.00 | 2.07 | 0.00 | 1.15 | -10.26 | 329.17 | -20.99 | 129.23 | 0.4570 | 645.0 | 457.7 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -6.83 | 329.24 | -20.92 | 122.98 | 0.4245 | 889.0 | 765.1 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -11.80 | 325.59 | -24.58 | 127.34 | 0.5141 | -661.0 | -505.8 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -15.14 | 321.18 | -28.98 | 127.70 | 0.5933 | -567.0 | -485.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
