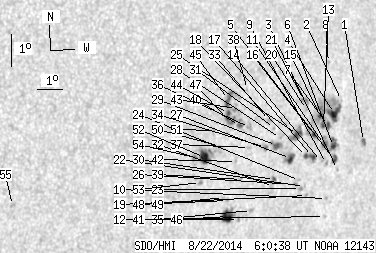

SDO HMI 2014-08-22 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.01 | 239.03 | 46.70 | 164.03 | -4.87 | 31.87 | 42.25 | 255.45 | 0.6941 | 171.8 | 220.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-22 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.17 | 2.97 | 0.85 | 2.16 | -5.13 | 35.28 | 45.66 | 256.36 | 0.7353 | 675.2 | 491.5 | |
| 0.00 | 0.90 | 0.00 | 0.64 | -3.77 | 34.22 | 44.60 | 257.83 | 0.7191 | 327.0 | 252.9 | |
| 0.00 | 1.08 | 0.00 | 0.77 | -5.90 | 34.23 | 44.61 | 254.96 | 0.7256 | 412.0 | 343.8 | |
| 9.17 | 56.13 | 6.50 | 39.51 | -4.14 | 33.95 | 44.33 | 257.23 | 0.7169 | 687.0 | 531.0 | |
| 2.52 | 4.68 | 1.80 | 3.34 | -5.58 | 34.06 | 44.45 | 255.34 | 0.7227 | 491.0 | 392.2 | |
| 2.07 | 18.17 | 1.47 | 12.89 | -5.17 | 33.98 | 44.37 | 255.86 | 0.7205 | 589.0 | 543.8 | |
| 1.89 | -4.00 | 1.33 | -4.00 | -4.49 | 33.72 | 44.10 | 256.68 | 0.7153 | 697.6 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.82 | -2.54 | 33.60 | 43.98 | 259.31 | 0.7083 | 458.0 | 423.8 | |
| 0.00 | 1.71 | 0.00 | 1.21 | -5.67 | 33.73 | 44.11 | 255.09 | 0.7191 | 556.0 | 501.8 | |
| 0.00 | 1.08 | 0.00 | 0.77 | -6.77 | 33.85 | 44.23 | 253.67 | 0.7241 | 614.0 | 476.9 | |
| 2.16 | -6.00 | 1.53 | -6.00 | -5.07 | 33.59 | 43.97 | 255.85 | 0.7156 | 823.1 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.77 | -7.33 | 33.83 | 44.21 | 252.92 | 0.7258 | 482.0 | 434.9 | |
| 2.52 | -4.00 | 1.77 | -4.00 | -4.44 | 33.50 | 43.88 | 256.67 | 0.7125 | 885.9 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.32 | -5.59 | 33.51 | 43.89 | 255.12 | 0.7163 | 600.0 | 553.6 | |
| 1.98 | -4.00 | 1.39 | -4.00 | -4.15 | 33.35 | 43.73 | 257.01 | 0.7099 | 964.4 | 999999 | |
| 1.89 | 6.75 | 1.32 | 4.72 | -4.72 | 33.14 | 43.52 | 256.16 | 0.7091 | 838.0 | 693.6 | |
| 2.52 | 6.84 | 1.77 | 4.79 | -5.40 | 33.11 | 43.50 | 255.23 | 0.7110 | 821.3 | 652.4 | |
| 1.44 | -17.00 | 1.01 | -17.00 | -5.38 | 32.86 | 43.24 | 255.16 | 0.7079 | 792.9 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.70 | -6.60 | 32.98 | 43.36 | 253.55 | 0.7135 | 462.0 | 337.5 | |
| 0.00 | 1.17 | 0.00 | 0.81 | -3.92 | 32.75 | 43.13 | 257.13 | 0.7019 | 691.0 | 620.2 | |
| 0.00 | 4.05 | 0.00 | 2.80 | -3.63 | 32.65 | 43.03 | 257.49 | 0.6999 | 785.0 | 670.8 | |
| 0.00 | 1.08 | 0.00 | 0.76 | -6.31 | 32.86 | 43.25 | 253.90 | 0.7111 | 422.0 | 436.9 | |
| 0.00 | 1.98 | 0.00 | 1.39 | -6.36 | 32.70 | 43.08 | 253.77 | 0.7094 | 654.0 | 534.0 | |
| 0.00 | 0.54 | 0.00 | 0.38 | -6.10 | 32.63 | 43.02 | 254.08 | 0.7077 | 676.0 | 583.0 | |
| 4.68 | 11.42 | 3.24 | 7.90 | -4.66 | 32.42 | 42.81 | 255.98 | 0.7004 | 903.5 | 696.2 | |
| 0.00 | 1.35 | 0.00 | 0.94 | -6.21 | 32.48 | 42.86 | 253.87 | 0.7062 | 820.0 | 695.5 | |
| 4.41 | 10.43 | 3.05 | 7.21 | -5.38 | 32.19 | 42.57 | 254.90 | 0.7000 | 826.8 | 536.8 | |
| 0.00 | 0.72 | 0.00 | 0.49 | -4.73 | 31.73 | 42.11 | 255.63 | 0.6921 | 746.0 | 649.6 | |
| 2.79 | 6.21 | 1.91 | 4.24 | -4.93 | 31.58 | 41.96 | 255.29 | 0.6910 | 873.3 | 697.2 | |
| 0.81 | 3.51 | 0.56 | 2.41 | -5.98 | 31.58 | 41.97 | 253.83 | 0.6948 | 837.9 | 721.6 | |
| 0.00 | 1.08 | 0.00 | 0.73 | -4.39 | 31.46 | 41.84 | 256.00 | 0.6877 | 769.0 | 560.8 | |
| 0.00 | 0.99 | 0.00 | 0.68 | -6.20 | 31.56 | 41.95 | 253.52 | 0.6953 | 670.0 | 635.9 | |
| 0.00 | 1.80 | 0.00 | 1.22 | -4.13 | 31.23 | 41.62 | 256.29 | 0.6841 | 353.0 | 298.2 | |
| 0.00 | 3.33 | 0.00 | 2.26 | -4.95 | 31.13 | 41.51 | 255.08 | 0.6856 | 849.0 | 701.1 | |
| 0.00 | 2.34 | 0.00 | 1.59 | -6.88 | 30.73 | 41.11 | 252.23 | 0.6878 | 166.0 | 123.3 | |
| 0.00 | 3.42 | 0.00 | 2.29 | -4.28 | 30.43 | 40.81 | 255.77 | 0.6747 | -534.0 | -310.5 | |
| 0.00 | 1.53 | 0.00 | 1.03 | -4.90 | 30.47 | 40.86 | 254.90 | 0.6774 | 346.0 | 293.7 | |
| 0.00 | 0.63 | 0.00 | 0.42 | -3.10 | 30.29 | 40.67 | 257.42 | 0.6690 | -460.0 | -392.6 | |
| 0.00 | 0.99 | 0.00 | 0.66 | -5.87 | 30.23 | 40.61 | 253.42 | 0.6779 | -464.0 | -376.6 | |
| 1.26 | 5.13 | 0.84 | 3.41 | -4.18 | 30.02 | 40.41 | 255.75 | 0.6693 | -538.8 | -341.2 | |
| 0.00 | 1.53 | 0.00 | 1.03 | -7.12 | 30.23 | 40.61 | 251.67 | 0.6827 | -589.0 | -486.4 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -5.29 | 29.98 | 40.36 | 254.13 | 0.6727 | 681.0 | 479.4 | |
| 0.00 | 4.23 | 0.00 | 2.80 | -3.65 | 29.87 | 40.25 | 256.47 | 0.6656 | -508.0 | -451.3 | |
| 1.17 | 9.98 | 0.77 | 6.59 | -3.78 | 29.56 | 39.94 | 256.16 | 0.6621 | -989.1 | -766.2 | |
| 4.05 | 10.88 | 2.66 | 7.17 | -3.34 | 29.54 | 39.92 | 256.78 | 0.6603 | -855.2 | -589.1 | |
| 9.17 | 13.76 | 6.15 | 9.23 | -6.99 | 29.77 | 40.15 | 251.64 | 0.6767 | -821.4 | -495.7 | |
| 1.53 | -44.00 | 1.01 | -44.00 | -3.93 | 29.53 | 39.91 | 255.92 | 0.6622 | -987.1 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.72 | -6.48 | 29.72 | 40.11 | 252.33 | 0.6741 | -584.0 | -453.5 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -6.38 | 29.55 | 39.94 | 252.40 | 0.6716 | -709.0 | -570.9 | |
| 0.00 | 1.08 | 0.00 | 0.71 | -4.77 | 29.30 | 39.69 | 254.60 | 0.6624 | -405.0 | -232.9 | |
| 0.00 | 0.63 | 0.00 | 0.41 | -4.26 | 29.03 | 39.42 | 255.24 | 0.6571 | -630.0 | -580.9 | |
| 8.81 | 19.43 | 5.77 | 12.73 | -5.07 | 28.69 | 39.07 | 253.91 | 0.6558 | -818.9 | -422.4 | |
| 0.00 | 1.89 | 0.00 | 1.24 | -5.83 | 28.59 | 38.98 | 252.74 | 0.6575 | -648.0 | -569.8 | |
| 0.00 | 2.97 | 0.00 | 1.93 | -5.04 | 28.30 | 38.68 | 253.78 | 0.6507 | -886.0 | -796.3 | |
| 0.00 | 2.16 | 0.00 | 1.30 | -6.03 | 21.55 | 31.93 | 248.58 | 0.5672 | -824.0 | -608.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
