SDO HMI 2014-08-22 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.49 | 408.38 | 36.62 | 203.55 | 9.13 | 343.74 | -5.88 | 68.87 | 0.1092 | -833.4 | -402.8 | |
|
previous
or next observation for the same group /

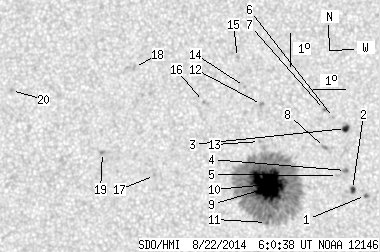

back to the solar disc SDO HMI 2014-08-22 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.36 | 1.62 | 0.18 | 0.80 | 8.74 | 346.69 | -2.92 | 57.96 | 0.0597 | 1145.5 | 915.7 | |
| 1.89 | 3.06 | 0.94 | 1.52 | 8.92 | 346.29 | -3.32 | 58.77 | 0.0673 | 1166.4 | 891.4 | |
| 3.15 | 4.86 | 1.57 | 2.42 | 10.77 | 346.06 | -3.56 | 42.28 | 0.0910 | 1042.6 | 631.9 | |
| 0.00 | 2.52 | 0.00 | 1.25 | 9.50 | 346.07 | -3.54 | 53.70 | 0.0760 | 1186.0 | 938.9 | |
| 0.00 | 1.71 | 0.00 | 0.85 | 9.34 | 345.83 | -3.79 | 57.12 | 0.0780 | 867.0 | 659.8 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 11.10 | 345.69 | -3.93 | 42.73 | 0.0996 | 841.0 | 645.5 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 11.35 | 345.40 | -4.21 | 43.07 | 0.1060 | 852.0 | 684.9 | |
| 0.00 | 2.16 | 0.00 | 1.07 | 10.19 | 345.42 | -4.20 | 51.67 | 0.0923 | 1010.0 | 830.4 | |
| 3.24 | 377.87 | 1.61 | 188.32 | 9.12 | 344.23 | -5.39 | 67.46 | 0.1009 | -1230.2 | -468.1 | |
| 64.49 | -9.00 | 32.14 | -9.00 | 9.05 | 343.71 | -5.91 | 69.80 | 0.1089 | -1526.3 | 999999 | |
| 0.36 | -9.00 | 0.18 | -9.00 | 7.90 | 343.66 | -5.96 | 80.44 | 0.1047 | -642.5 | 999999 | |
| 0.00 | 1.98 | 0.00 | 0.99 | 11.48 | 343.44 | -6.17 | 52.88 | 0.1328 | -1057.0 | -881.0 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 10.35 | 343.40 | -6.21 | 60.52 | 0.1229 | -760.0 | -558.1 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 12.02 | 342.90 | -6.71 | 52.01 | 0.1458 | -890.0 | -619.8 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 12.90 | 342.66 | -6.96 | 48.44 | 0.1585 | -961.0 | -723.4 | |
| 0.00 | 0.72 | 0.00 | 0.36 | 11.55 | 341.63 | -7.98 | 59.11 | 0.1593 | -743.0 | -622.0 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 9.27 | 340.17 | -9.45 | 75.38 | 0.1682 | 896.0 | 743.2 | |
| 0.00 | 2.16 | 0.00 | 1.09 | 12.54 | 339.44 | -10.18 | 60.05 | 0.2001 | 789.0 | 673.9 | |
| 0.00 | 1.80 | 0.00 | 0.91 | 9.94 | 338.52 | -11.10 | 73.97 | 0.1981 | 971.0 | 769.9 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 11.75 | 335.57 | -14.05 | 69.82 | 0.2544 | 855.0 | 619.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
