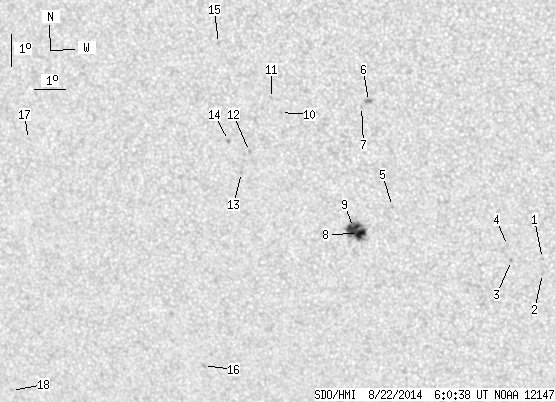

SDO HMI 2014-08-22 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.27 | 47.14 | 9.31 | 25.45 | -8.90 | 332.71 | -16.90 | 133.19 | 0.3963 | 755.9 | 559.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-22 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.38 | -10.20 | 339.18 | -10.44 | 148.65 | 0.3443 | 785.0 | 635.4 | |
| 0.00 | 1.44 | 0.00 | 0.76 | -10.67 | 339.16 | -10.46 | 149.32 | 0.3511 | 699.0 | 591.8 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -10.28 | 338.20 | -11.42 | 146.45 | 0.3540 | 890.0 | 746.5 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -9.81 | 338.09 | -11.53 | 145.44 | 0.3486 | 759.0 | 619.0 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -8.68 | 334.50 | -15.11 | 135.81 | 0.3714 | 776.0 | 598.3 | |
| 0.00 | 2.79 | 0.00 | 1.47 | -5.42 | 333.86 | -15.76 | 127.78 | 0.3435 | 975.0 | 856.7 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -5.58 | 333.63 | -15.98 | 127.74 | 0.3481 | 677.0 | 542.6 | |
| 10.70 | 27.52 | 5.77 | 14.82 | -9.57 | 333.38 | -16.24 | 135.38 | 0.3943 | 1125.4 | 712.4 | |
| 6.57 | -8.00 | 3.54 | -8.00 | -9.38 | 333.23 | -16.39 | 134.78 | 0.3939 | 1124.1 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -5.86 | 331.04 | -18.58 | 124.19 | 0.3848 | 887.0 | 705.6 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -5.43 | 330.76 | -18.86 | 122.87 | 0.3847 | 910.0 | 688.1 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -7.12 | 329.98 | -19.63 | 125.28 | 0.4102 | 876.0 | 723.9 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -7.78 | 329.69 | -19.93 | 126.19 | 0.4202 | 820.0 | 715.4 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -6.80 | 329.31 | -20.30 | 123.74 | 0.4161 | 865.0 | 795.9 | |
| 0.00 | 1.89 | 0.00 | 1.02 | -3.80 | 329.10 | -20.52 | 117.07 | 0.3945 | 809.0 | 484.0 | |
| 0.00 | 1.80 | 0.00 | 1.03 | -14.01 | 327.97 | -21.65 | 134.29 | 0.5022 | -771.0 | -581.4 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -7.10 | 322.62 | -27.00 | 117.00 | 0.5076 | -695.0 | -611.5 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -15.18 | 321.17 | -28.45 | 128.25 | 0.5877 | -604.0 | -536.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
