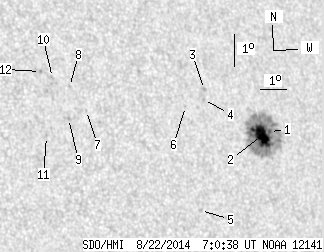

SDO HMI 2014-08-22 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.21 | 129.71 | 14.99 | 83.30 | 16.45 | 28.24 | 39.17 | 287.57 | 0.6374 | -574.0 | -309.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-22 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.35 | 117.20 | 0.88 | 75.71 | 16.46 | 29.04 | 39.97 | 287.34 | 0.6477 | -359.7 | -354.2 | |
| 21.86 | -1.00 | 14.11 | -1.00 | 16.36 | 28.69 | 39.62 | 287.27 | 0.6430 | -1089.7 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.97 | 17.93 | 26.76 | 37.69 | 290.25 | 0.6222 | -680.0 | -592.7 | |
| 0.00 | 1.17 | 0.00 | 0.74 | 17.63 | 26.64 | 37.57 | 289.81 | 0.6199 | -650.0 | -547.5 | |
| 0.00 | 1.98 | 0.00 | 1.22 | 14.26 | 25.78 | 36.71 | 284.56 | 0.6009 | -588.0 | -460.0 | |
| 0.00 | 0.99 | 0.00 | 0.62 | 17.47 | 25.88 | 36.81 | 289.79 | 0.6096 | -707.0 | -537.2 | |
| 0.00 | 0.90 | 0.00 | 0.54 | 17.60 | 22.06 | 32.99 | 291.41 | 0.5596 | 565.0 | 433.1 | |
| 0.00 | 0.99 | 0.00 | 0.59 | 18.38 | 21.58 | 32.51 | 292.98 | 0.5561 | 680.0 | 552.3 | |
| 0.00 | 1.17 | 0.00 | 0.69 | 17.40 | 21.34 | 32.27 | 291.37 | 0.5492 | 734.0 | 611.6 | |
| 0.00 | 1.44 | 0.00 | 0.85 | 18.70 | 21.00 | 31.93 | 293.80 | 0.5497 | 579.0 | 524.6 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 16.90 | 20.42 | 31.35 | 290.87 | 0.5348 | 703.0 | 608.4 | |
| 0.00 | 1.26 | 0.00 | 0.74 | 18.91 | 20.60 | 31.53 | 294.38 | 0.5452 | 713.0 | 602.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
