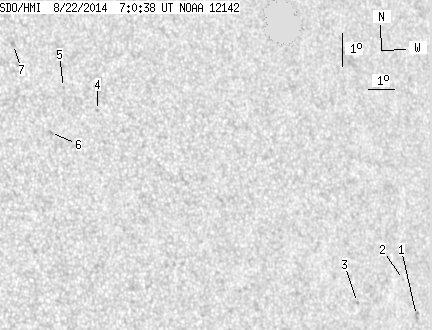

SDO HMI 2014-08-22 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.98 | 0.00 | 6.80 | 11.46 | 25.24 | 36.17 | 281.12 | 0.5907 | 176.3 | 94.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-22 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.88 | 0.00 | 1.96 | 7.05 | 32.63 | 43.55 | 272.93 | 0.6870 | -523.0 | -415.7 | |
| 0.00 | 0.81 | 0.00 | 0.55 | 8.18 | 32.22 | 43.15 | 274.56 | 0.6814 | -479.0 | -399.6 | |
| 0.00 | 0.99 | 0.00 | 0.65 | 7.64 | 30.24 | 41.17 | 273.67 | 0.6561 | -634.0 | -522.3 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 14.17 | 21.13 | 32.06 | 285.60 | 0.5364 | 694.0 | 579.2 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 14.95 | 20.01 | 30.94 | 287.42 | 0.5226 | 699.0 | 553.3 | |
| 0.00 | 1.89 | 0.00 | 1.09 | 13.61 | 19.33 | 30.26 | 285.09 | 0.5093 | 758.0 | 565.2 | |
| 0.00 | 2.61 | 0.00 | 1.50 | 16.37 | 18.42 | 29.35 | 290.81 | 0.5050 | 719.0 | 535.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
