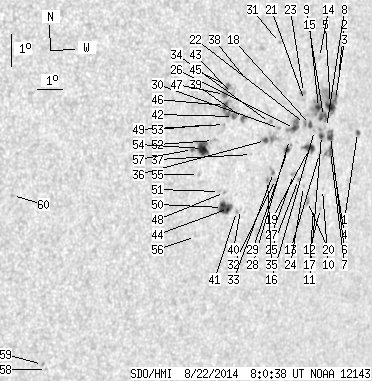

SDO HMI 2014-08-22 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.77 | 229.32 | 46.67 | 160.66 | -4.98 | 31.98 | 43.46 | 255.74 | 0.7090 | 140.3 | 269.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-22 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.26 | 2.61 | 0.94 | 1.94 | -5.13 | 35.25 | 46.72 | 256.71 | 0.7474 | 554.6 | 410.4 | |
| 0.00 | 0.54 | 0.00 | 0.39 | -3.32 | 34.27 | 45.75 | 258.80 | 0.7312 | 484.0 | 402.3 | |
| 2.43 | 57.93 | 1.76 | 41.64 | -4.02 | 34.18 | 45.66 | 257.84 | 0.7321 | 455.3 | 499.4 | |
| 0.00 | 1.35 | 0.00 | 0.99 | -6.04 | 34.28 | 45.75 | 255.20 | 0.7391 | 415.0 | 317.4 | |
| 5.58 | -3.00 | 4.03 | -3.00 | -4.21 | 33.98 | 45.46 | 257.51 | 0.7303 | 717.3 | 999999 | |
| 3.96 | 6.84 | 2.88 | 4.97 | -5.15 | 34.06 | 45.53 | 256.29 | 0.7339 | 485.3 | 385.7 | |
| 2.61 | 7.29 | 1.90 | 5.30 | -5.62 | 34.10 | 45.58 | 255.69 | 0.7358 | 500.0 | 494.4 | |
| 0.00 | 0.63 | 0.00 | 0.46 | -4.85 | 33.85 | 45.33 | 256.62 | 0.7307 | 336.0 | 392.4 | |
| 4.14 | -3.00 | 2.98 | -3.00 | -4.50 | 33.70 | 45.17 | 257.04 | 0.7279 | 818.8 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.53 | -6.78 | 33.88 | 45.36 | 254.08 | 0.7370 | 521.0 | 487.6 | |
| 1.89 | 6.84 | 1.36 | 4.93 | -5.08 | 33.66 | 45.14 | 256.24 | 0.7291 | 821.6 | 698.3 | |
| 0.00 | 0.99 | 0.00 | 0.72 | -7.37 | 33.86 | 45.34 | 253.31 | 0.7388 | 528.0 | 429.6 | |
| 0.00 | 1.35 | 0.00 | 0.98 | -5.64 | 33.62 | 45.10 | 255.49 | 0.7304 | 522.0 | 491.9 | |
| 0.00 | 1.53 | 0.00 | 1.09 | -2.66 | 33.41 | 44.89 | 259.43 | 0.7194 | 456.0 | 388.3 | |
| 2.52 | -3.00 | 1.80 | -3.00 | -4.20 | 33.46 | 44.93 | 257.36 | 0.7242 | 954.9 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.71 | -4.90 | 33.34 | 44.82 | 256.38 | 0.7249 | 723.0 | 646.4 | |
| 0.00 | 0.72 | 0.00 | 0.52 | -7.34 | 33.56 | 45.03 | 253.22 | 0.7352 | 435.0 | 387.4 | |
| 1.71 | 2.97 | 1.22 | 2.12 | -4.70 | 33.15 | 44.63 | 256.58 | 0.7221 | 796.3 | 682.5 | |
| 4.95 | 9.26 | 3.54 | 6.63 | -5.44 | 33.17 | 44.65 | 255.59 | 0.7246 | 773.2 | 527.7 | |
| 0.00 | 2.70 | 0.00 | 1.95 | -7.10 | 33.27 | 44.74 | 253.43 | 0.7311 | 599.0 | 508.3 | |
| 0.00 | 1.08 | 0.00 | 0.76 | -3.93 | 32.84 | 44.32 | 257.52 | 0.7161 | 803.0 | 677.5 | |
| 0.00 | 2.52 | 0.00 | 1.79 | -4.64 | 32.89 | 44.37 | 256.57 | 0.7189 | 704.0 | 590.3 | |
| 0.00 | 2.70 | 0.00 | 1.90 | -3.68 | 32.78 | 44.26 | 257.84 | 0.7147 | 796.0 | 707.0 | |
| 0.00 | 0.90 | 0.00 | 0.65 | -6.61 | 33.04 | 44.51 | 253.99 | 0.7268 | 453.0 | 417.3 | |
| 0.00 | 1.26 | 0.00 | 0.90 | -6.37 | 32.79 | 44.27 | 254.21 | 0.7233 | 603.0 | 529.1 | |
| 2.88 | 11.06 | 2.03 | 7.80 | -4.76 | 32.47 | 43.95 | 256.26 | 0.7143 | 815.0 | 740.6 | |
| 0.00 | 2.79 | 0.00 | 1.98 | -6.20 | 32.56 | 44.04 | 254.36 | 0.7200 | 819.0 | 639.8 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -5.09 | 32.29 | 43.77 | 255.75 | 0.7131 | 708.0 | 672.7 | |
| 2.43 | 4.77 | 1.71 | 3.36 | -5.42 | 32.23 | 43.71 | 255.28 | 0.7136 | 821.9 | 631.5 | |
| 0.00 | 1.44 | 0.00 | 1.00 | -4.71 | 31.84 | 43.31 | 256.11 | 0.7066 | 828.0 | 736.5 | |
| 0.00 | 0.99 | 0.00 | 0.68 | -2.05 | 31.69 | 43.17 | 259.76 | 0.6971 | 503.0 | 426.2 | |
| 0.00 | 1.26 | 0.00 | 0.88 | -6.29 | 31.81 | 43.29 | 253.95 | 0.7115 | 639.0 | 583.0 | |
| 0.45 | 3.15 | 0.32 | 2.20 | -6.06 | 31.70 | 43.18 | 254.21 | 0.7094 | 792.6 | 704.0 | |
| 0.00 | 2.16 | 0.00 | 1.49 | -4.48 | 31.40 | 42.88 | 256.26 | 0.7006 | 346.0 | 463.5 | |
| 0.00 | 2.25 | 0.00 | 1.57 | -6.29 | 31.47 | 42.95 | 253.81 | 0.7075 | 837.0 | 701.6 | |
| 1.80 | 11.15 | 1.25 | 7.75 | -5.03 | 31.28 | 42.75 | 255.46 | 0.7009 | 908.7 | 718.5 | |
| 0.00 | 0.63 | 0.00 | 0.43 | -5.42 | 30.73 | 42.20 | 254.71 | 0.6956 | 725.0 | 582.7 | |
| 0.00 | 0.90 | 0.00 | 0.61 | -3.07 | 30.37 | 41.84 | 257.88 | 0.6836 | -570.0 | -460.8 | |
| 1.53 | 4.05 | 1.04 | 2.75 | -4.27 | 30.31 | 41.79 | 256.16 | 0.6867 | -537.6 | -282.1 | |
| 0.00 | 0.72 | 0.00 | 0.50 | -7.10 | 30.44 | 41.92 | 252.27 | 0.6983 | -212.0 | -259.1 | |
| 0.00 | 1.53 | 0.00 | 1.05 | -7.15 | 30.28 | 41.76 | 252.13 | 0.6966 | -527.0 | -479.7 | |
| 1.08 | 15.02 | 0.73 | 10.10 | -4.17 | 29.90 | 41.37 | 256.14 | 0.6813 | -562.8 | -651.2 | |
| 0.00 | 1.35 | 0.00 | 0.91 | -3.46 | 29.81 | 41.29 | 257.13 | 0.6780 | -567.0 | -492.9 | |
| 4.05 | 13.22 | 2.77 | 9.03 | -7.03 | 29.94 | 41.42 | 252.15 | 0.6921 | -714.6 | -476.5 | |
| 1.35 | 7.65 | 0.90 | 5.12 | -3.22 | 29.60 | 41.08 | 257.39 | 0.6746 | -784.3 | -696.9 | |
| 2.52 | -42.00 | 1.69 | -42.00 | -3.81 | 29.55 | 41.03 | 256.53 | 0.6758 | -938.4 | 999999 | |
| 1.26 | -45.00 | 0.84 | -45.00 | -3.46 | 29.49 | 40.97 | 257.01 | 0.6739 | -886.6 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.92 | -6.51 | 29.72 | 41.20 | 252.77 | 0.6875 | -497.0 | -423.5 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -4.39 | 29.55 | 41.02 | 255.69 | 0.6777 | -541.0 | -473.1 | |
| 5.85 | -44.00 | 3.98 | -44.00 | -6.98 | 29.69 | 41.17 | 252.11 | 0.6889 | -832.6 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.49 | -6.47 | 29.51 | 40.99 | 252.75 | 0.6848 | -652.0 | -509.1 | |
| 0.00 | 2.88 | 0.00 | 1.93 | -4.85 | 29.13 | 40.61 | 254.87 | 0.6742 | -476.0 | -278.7 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -4.35 | 28.98 | 40.46 | 255.54 | 0.6705 | -740.0 | -567.7 | |
| 9.71 | 15.02 | 6.46 | 10.00 | -5.07 | 28.71 | 40.19 | 254.39 | 0.6697 | -783.2 | -487.2 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -5.86 | 28.61 | 40.09 | 253.20 | 0.6715 | -542.0 | -491.1 | |
| 0.00 | 0.90 | 0.00 | 0.61 | -7.80 | 28.69 | 40.16 | 250.50 | 0.6802 | -580.0 | -418.5 | |
| 0.81 | 2.25 | 0.54 | 1.49 | -5.06 | 28.31 | 39.79 | 254.22 | 0.6647 | -847.7 | -731.3 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -11.59 | 23.38 | 34.86 | 242.09 | 0.6358 | -653.0 | -445.1 | |
| 0.00 | 1.35 | 0.00 | 0.86 | -11.42 | 23.20 | 34.68 | 242.21 | 0.6327 | -512.0 | -503.6 | |
| 0.00 | 1.26 | 0.00 | 0.77 | -5.99 | 21.54 | 33.02 | 249.34 | 0.5813 | -803.0 | -603.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
