SDO HMI 2014-08-22 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.48 | 413.60 | 32.57 | 205.78 | 9.19 | 343.69 | -4.83 | 64.52 | 0.0931 | -741.3 | -413.7 | |
|
previous
or next observation for the same group /

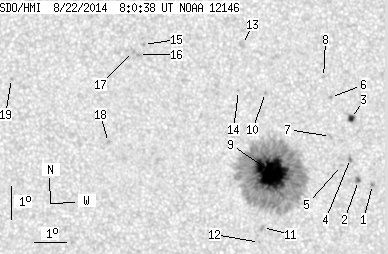

back to the solar disc SDO HMI 2014-08-22 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.76 | 8.71 | 346.80 | -1.73 | 43.86 | 0.0431 | 1141.0 | 911.5 | |
| 0.99 | 2.79 | 0.49 | 1.38 | 8.83 | 346.37 | -2.16 | 48.32 | 0.0500 | 1259.9 | 1004.5 | |
| 2.97 | 4.68 | 1.47 | 2.32 | 10.71 | 346.14 | -2.38 | 31.78 | 0.0779 | 970.0 | 657.0 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 9.50 | 346.12 | -2.40 | 42.77 | 0.0612 | 1060.0 | 950.3 | |
| 0.00 | 1.62 | 0.00 | 0.80 | 9.29 | 345.84 | -2.68 | 48.35 | 0.0620 | 757.0 | 583.7 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 11.35 | 345.49 | -3.04 | 33.98 | 0.0933 | 989.0 | 654.3 | |
| 0.00 | 2.25 | 0.00 | 1.12 | 10.16 | 345.50 | -3.03 | 42.65 | 0.0770 | 937.0 | 619.9 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 11.96 | 345.26 | -3.26 | 32.41 | 0.1043 | 724.0 | 502.1 | |
| 61.52 | 381.20 | 30.61 | 189.64 | 9.06 | 343.69 | -4.83 | 65.81 | 0.0916 | -1543.1 | -481.4 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 11.49 | 343.47 | -5.05 | 47.28 | 0.1180 | -981.0 | -830.4 | |
| 0.00 | 1.98 | 0.00 | 0.98 | 7.39 | 343.43 | -5.09 | 84.62 | 0.0888 | -983.0 | -722.4 | |
| 0.00 | 0.81 | 0.00 | 0.40 | 6.93 | 343.34 | -5.18 | 89.78 | 0.0900 | 672.0 | 483.0 | |
| 0.00 | 3.69 | 0.00 | 1.85 | 12.94 | 342.72 | -5.80 | 43.12 | 0.1447 | -851.0 | -666.8 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 11.54 | 342.63 | -5.89 | 51.23 | 0.1296 | -711.0 | -522.2 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 12.90 | 339.62 | -8.90 | 55.11 | 0.1847 | 958.0 | 791.6 | |
| 0.00 | 1.89 | 0.00 | 0.95 | 12.59 | 339.47 | -9.05 | 56.94 | 0.1840 | 1000.0 | 844.9 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 12.68 | 339.31 | -9.21 | 56.97 | 0.1871 | 754.0 | 649.8 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 9.90 | 338.62 | -9.90 | 72.52 | 0.1784 | 910.0 | 778.8 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 11.77 | 335.49 | -13.03 | 68.42 | 0.2384 | 807.0 | 645.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
