SDO HMI 2014-08-22 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.80 | 422.13 | 34.70 | 209.83 | 9.08 | 343.76 | -4.22 | 62.49 | 0.0829 | -857.8 | -402.5 | |
|
previous
or next observation for the same group /

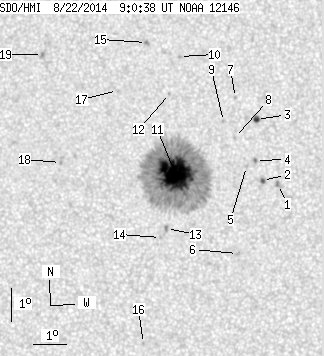

back to the solar disc SDO HMI 2014-08-22 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.33 | 0.00 | 1.65 | 8.71 | 346.86 | -1.11 | 31.81 | 0.0366 | 914.0 | 728.6 | |
| 1.17 | 2.25 | 0.58 | 1.11 | 8.83 | 346.37 | -1.60 | 39.91 | 0.0433 | 1196.3 | 973.8 | |
| 2.61 | 3.96 | 1.30 | 1.97 | 10.68 | 346.18 | -1.80 | 25.23 | 0.0726 | 1079.6 | 772.8 | |
| 0.00 | 2.16 | 0.00 | 1.07 | 9.44 | 346.15 | -1.82 | 35.68 | 0.0540 | 1138.0 | 915.5 | |
| 0.00 | 1.71 | 0.00 | 0.85 | 9.25 | 345.88 | -2.10 | 41.74 | 0.0545 | 881.0 | 623.9 | |
| 0.00 | 2.25 | 0.00 | 1.11 | 6.61 | 345.61 | -2.36 | 97.73 | 0.0415 | -905.0 | -752.6 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 11.35 | 345.53 | -2.45 | 28.55 | 0.0880 | 934.0 | 683.9 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 10.13 | 345.50 | -2.47 | 37.24 | 0.0704 | 951.0 | 658.9 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 10.62 | 345.16 | -2.81 | 36.88 | 0.0808 | 702.0 | 565.7 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 12.59 | 343.77 | -4.20 | 35.91 | 0.1224 | -939.0 | -769.7 | |
| 66.02 | 388.74 | 32.82 | 193.24 | 9.03 | 343.70 | -4.28 | 63.45 | 0.0827 | -1504.3 | -461.5 | |
| 0.00 | 0.81 | 0.00 | 0.40 | 11.46 | 343.48 | -4.49 | 44.14 | 0.1108 | -885.0 | -744.4 | |
| 0.00 | 2.61 | 0.00 | 1.30 | 7.36 | 343.44 | -4.54 | 84.38 | 0.0792 | -973.0 | -728.1 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 7.09 | 343.25 | -4.72 | 87.92 | 0.0821 | 839.0 | 630.1 | |
| 0.00 | 2.25 | 0.00 | 1.12 | 13.00 | 342.74 | -5.24 | 39.96 | 0.1391 | -939.0 | -817.3 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 3.87 | 342.76 | -5.22 | 120.35 | 0.1056 | 883.0 | 642.1 | |
| 0.00 | 0.81 | 0.00 | 0.40 | 11.53 | 341.86 | -6.11 | 52.25 | 0.1325 | -801.0 | -646.7 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 9.32 | 340.14 | -7.84 | 72.39 | 0.1418 | 894.0 | 771.9 | |
| 0.00 | 2.43 | 0.00 | 1.22 | 12.60 | 339.49 | -8.48 | 55.25 | 0.1760 | 1086.0 | 894.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
