SDO HMI 2014-08-22 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.05 | 134.56 | 13.91 | 88.11 | 16.55 | 27.90 | 40.48 | 287.45 | 0.6541 | -461.0 | -239.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-22 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

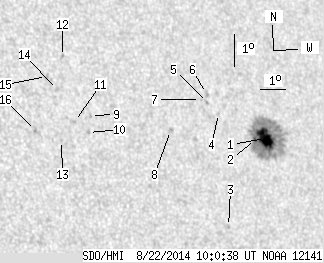

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.70 | 113.77 | 13.02 | 75.28 | 16.38 | 28.71 | 41.29 | 286.94 | 0.6640 | -1065.6 | -310.6 | |
| 1.35 | -1.00 | 0.89 | -1.00 | 16.38 | 28.29 | 40.87 | 287.03 | 0.6588 | -1041.0 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.86 | 13.82 | 26.59 | 39.17 | 283.41 | 0.6328 | -639.0 | -547.8 | |
| 0.00 | 1.08 | 0.00 | 0.70 | 17.29 | 26.99 | 39.56 | 288.72 | 0.6444 | -546.0 | -418.8 | |
| 0.00 | 1.53 | 0.00 | 0.98 | 17.66 | 26.63 | 39.20 | 289.38 | 0.6407 | -722.0 | -616.4 | |
| 0.00 | 2.61 | 0.00 | 1.68 | 17.93 | 26.66 | 39.24 | 289.80 | 0.6419 | -646.0 | -541.5 | |
| 0.00 | 0.36 | 0.00 | 0.23 | 17.77 | 26.37 | 38.94 | 289.63 | 0.6378 | -425.0 | -486.5 | |
| 0.00 | 1.71 | 0.00 | 1.07 | 16.91 | 24.94 | 37.51 | 288.69 | 0.6173 | -541.0 | -514.5 | |
| 0.00 | 1.35 | 0.00 | 0.82 | 17.58 | 21.94 | 34.52 | 290.78 | 0.5800 | 581.0 | 490.5 | |
| 0.00 | 1.44 | 0.00 | 0.87 | 17.07 | 21.76 | 34.33 | 289.98 | 0.5758 | 639.0 | 531.8 | |
| 0.00 | 1.53 | 0.00 | 0.92 | 17.44 | 21.30 | 33.87 | 290.79 | 0.5709 | 739.0 | 629.0 | |
| 0.00 | 1.44 | 0.00 | 0.87 | 19.47 | 21.29 | 33.87 | 294.21 | 0.5783 | 576.0 | 462.0 | |
| 0.00 | 0.63 | 0.00 | 0.38 | 16.89 | 20.69 | 33.26 | 290.07 | 0.5609 | 723.0 | 658.3 | |
| 0.00 | 1.98 | 0.00 | 1.19 | 18.46 | 20.87 | 33.44 | 292.71 | 0.5688 | 672.0 | 567.5 | |
| 0.00 | 2.16 | 0.00 | 1.30 | 18.89 | 20.54 | 33.12 | 293.59 | 0.5662 | 737.0 | 621.7 | |
| 0.00 | 1.62 | 0.00 | 0.96 | 17.26 | 19.78 | 32.35 | 291.09 | 0.5498 | 785.0 | 699.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
