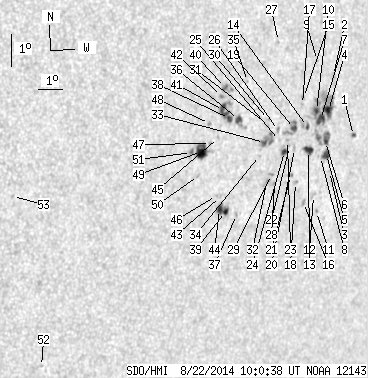

SDO HMI 2014-08-22 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.51 | 235.86 | 46.45 | 168.47 | -4.91 | 32.02 | 44.59 | 256.25 | 0.7220 | 118.2 | 283.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-22 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.17 | 2.16 | 0.89 | 1.64 | -5.18 | 35.27 | 47.85 | 257.01 | 0.7600 | 562.3 | 433.5 | |
| 0.00 | 3.06 | 0.00 | 2.26 | -3.23 | 34.22 | 46.79 | 259.23 | 0.7431 | 32.0 | 160.4 | |
| 0.00 | 0.81 | 0.00 | 0.61 | -6.20 | 34.30 | 46.87 | 255.38 | 0.7522 | 356.0 | 259.9 | |
| 6.30 | 71.41 | 4.65 | 52.55 | -4.29 | 34.07 | 46.64 | 257.78 | 0.7442 | 659.5 | 493.7 | |
| 4.23 | 6.39 | 3.14 | 4.75 | -5.66 | 34.11 | 46.68 | 256.01 | 0.7484 | 574.3 | 383.1 | |
| 1.98 | -4.00 | 1.47 | -4.00 | -5.25 | 34.02 | 46.59 | 256.52 | 0.7462 | 480.6 | 999999 | |
| 5.76 | -4.00 | 4.23 | -4.00 | -4.54 | 33.73 | 46.31 | 257.35 | 0.7410 | 803.8 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.46 | -5.69 | 33.84 | 46.42 | 255.88 | 0.7456 | 336.0 | 461.7 | |
| 0.00 | 1.17 | 0.00 | 0.85 | -2.70 | 33.48 | 46.06 | 259.72 | 0.7333 | 607.0 | 457.8 | |
| 2.16 | -4.00 | 1.58 | -4.00 | -4.24 | 33.53 | 46.11 | 257.68 | 0.7379 | 937.8 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.61 | -7.41 | 33.87 | 46.45 | 253.67 | 0.7511 | 545.0 | 458.8 | |
| 0.00 | 2.88 | 0.00 | 2.14 | -6.89 | 33.67 | 46.24 | 254.27 | 0.7473 | 517.0 | 428.9 | |
| 4.68 | 6.92 | 3.42 | 5.07 | -5.46 | 33.29 | 45.86 | 256.00 | 0.7386 | 777.8 | 613.3 | |
| 1.26 | 5.58 | 0.92 | 4.05 | -4.71 | 33.18 | 45.75 | 256.95 | 0.7351 | 777.4 | 655.2 | |
| 0.00 | 1.35 | 0.00 | 0.97 | -3.79 | 32.93 | 45.51 | 258.09 | 0.7297 | 736.0 | 672.0 | |
| 0.00 | 2.70 | 0.00 | 1.99 | -7.07 | 33.25 | 45.82 | 253.88 | 0.7432 | 646.0 | 450.8 | |
| 0.00 | 0.99 | 0.00 | 0.71 | -4.00 | 32.90 | 45.48 | 257.80 | 0.7300 | 829.0 | 633.5 | |
| 0.00 | 1.26 | 0.00 | 0.92 | -6.41 | 32.82 | 45.39 | 254.58 | 0.7362 | 416.0 | 408.1 | |
| 2.52 | 12.05 | 1.81 | 8.67 | -4.72 | 32.61 | 45.18 | 256.75 | 0.7286 | 846.1 | 626.4 | |
| 0.00 | 2.52 | 0.00 | 1.82 | -5.34 | 32.67 | 45.24 | 255.94 | 0.7311 | 443.0 | 375.9 | |
| 0.00 | 2.52 | 0.00 | 1.83 | -6.17 | 32.58 | 45.15 | 254.81 | 0.7327 | 836.0 | 593.5 | |
| 0.00 | 0.63 | 0.00 | 0.45 | -5.26 | 32.44 | 45.02 | 255.97 | 0.7283 | 690.0 | 552.4 | |
| 0.00 | 1.35 | 0.00 | 0.97 | -5.07 | 32.34 | 44.91 | 256.19 | 0.7265 | 744.0 | 622.5 | |
| 2.34 | 4.23 | 1.68 | 3.04 | -5.40 | 32.24 | 44.81 | 255.71 | 0.7264 | 789.2 | 610.1 | |
| 0.00 | 1.17 | 0.00 | 0.83 | -5.03 | 31.99 | 44.56 | 256.11 | 0.7224 | 719.0 | 606.9 | |
| 0.00 | 2.43 | 0.00 | 1.73 | -4.72 | 31.92 | 44.50 | 256.51 | 0.7206 | 824.0 | 643.2 | |
| 0.00 | 0.72 | 0.00 | 0.51 | -1.97 | 31.77 | 44.34 | 260.22 | 0.7111 | 533.0 | 445.8 | |
| 0.00 | 1.08 | 0.00 | 0.77 | -6.36 | 31.90 | 44.48 | 254.31 | 0.7256 | 715.0 | 646.0 | |
| 0.00 | 1.80 | 0.00 | 1.28 | -6.07 | 31.75 | 44.32 | 254.64 | 0.7228 | 921.0 | 749.8 | |
| 0.00 | 1.17 | 0.00 | 0.82 | -4.34 | 31.47 | 44.04 | 256.87 | 0.7141 | 748.0 | 632.0 | |
| 0.00 | 0.99 | 0.00 | 0.70 | -4.53 | 31.48 | 44.05 | 256.62 | 0.7148 | 716.0 | 566.4 | |
| 0.00 | 3.51 | 0.00 | 2.50 | -6.30 | 31.56 | 44.13 | 254.26 | 0.7214 | 758.0 | 653.5 | |
| 2.16 | 12.95 | 1.52 | 9.16 | -5.04 | 31.35 | 43.92 | 255.88 | 0.7149 | 936.8 | 717.9 | |
| 0.00 | 1.17 | 0.00 | 0.82 | -5.43 | 31.17 | 43.75 | 255.29 | 0.7140 | 665.0 | 579.0 | |
| 0.00 | 0.72 | 0.00 | 0.50 | -3.09 | 30.50 | 43.08 | 258.28 | 0.6988 | -476.0 | -451.8 | |
| 2.97 | 8.99 | 2.05 | 6.22 | -4.23 | 30.20 | 42.77 | 256.57 | 0.6986 | -505.1 | -158.9 | |
| 0.00 | 1.35 | 0.00 | 0.95 | -7.19 | 30.39 | 42.96 | 252.59 | 0.7109 | -569.0 | -439.5 | |
| 2.70 | 16.28 | 1.85 | 11.13 | -4.17 | 29.82 | 42.39 | 256.52 | 0.6938 | -611.6 | -576.7 | |
| 2.34 | 11.24 | 1.63 | 7.81 | -7.06 | 29.91 | 42.49 | 252.57 | 0.7048 | -664.9 | -546.5 | |
| 1.08 | 6.84 | 0.73 | 4.66 | -3.19 | 29.60 | 42.17 | 257.82 | 0.6881 | -732.3 | -559.4 | |
| 6.12 | -38.00 | 4.17 | -38.00 | -3.90 | 29.55 | 42.13 | 256.81 | 0.6897 | -881.7 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.10 | -3.46 | 29.45 | 42.02 | 257.39 | 0.6870 | -853.0 | -759.3 | |
| 0.00 | 1.26 | 0.00 | 0.87 | -6.57 | 29.65 | 42.23 | 253.13 | 0.7000 | -448.0 | -441.9 | |
| 3.69 | -39.00 | 2.56 | -39.00 | -6.98 | 29.65 | 42.23 | 252.58 | 0.7015 | -823.3 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.11 | -4.72 | 29.40 | 41.98 | 255.60 | 0.6905 | -490.0 | -344.1 | |
| 0.00 | 0.90 | 0.00 | 0.62 | -6.53 | 29.48 | 42.06 | 253.12 | 0.6978 | -523.0 | -514.0 | |
| 0.00 | 1.35 | 0.00 | 0.92 | -4.88 | 29.09 | 41.66 | 255.25 | 0.6872 | -534.0 | -385.1 | |
| 0.00 | 1.62 | 0.00 | 1.10 | -4.26 | 29.00 | 41.58 | 256.10 | 0.6841 | -782.0 | -581.3 | |
| 11.42 | 16.82 | 7.73 | 11.39 | -5.10 | 28.74 | 41.31 | 254.81 | 0.6837 | -765.7 | -261.5 | |
| 0.00 | 1.35 | 0.00 | 0.92 | -5.84 | 28.68 | 41.25 | 253.74 | 0.6856 | -510.0 | -456.7 | |
| 0.63 | 2.16 | 0.42 | 1.45 | -5.10 | 28.33 | 40.91 | 254.65 | 0.6787 | -872.4 | -774.9 | |
| 0.00 | 0.72 | 0.00 | 0.47 | -11.40 | 23.16 | 35.74 | 242.95 | 0.6451 | -710.0 | -579.6 | |
| 0.00 | 1.26 | 0.00 | 0.77 | -5.94 | 21.50 | 34.07 | 250.05 | 0.5950 | -701.0 | -530.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
