SDO HMI 2014-08-22 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.13 | 48.22 | 11.26 | 25.68 | -9.08 | 333.33 | -14.09 | 138.78 | 0.3676 | 815.8 | 520.5 | |
|
previous
or next observation for the same group /

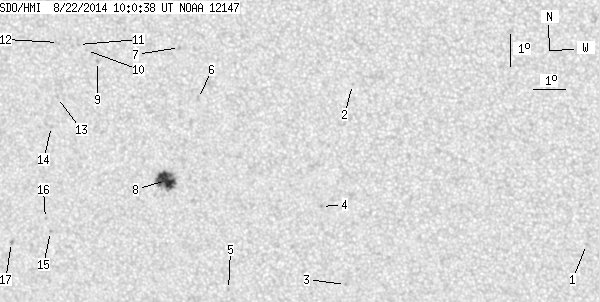

back to the solar disc SDO HMI 2014-08-22 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.47 | -11.34 | 346.46 | -0.96 | 177.00 | 0.3154 | 847.0 | 645.3 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -6.36 | 339.32 | -8.11 | 148.50 | 0.2695 | 855.0 | 617.4 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -12.69 | 338.94 | -8.49 | 156.71 | 0.3659 | 767.0 | 579.1 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -10.21 | 338.27 | -9.16 | 151.89 | 0.3340 | 953.0 | 774.0 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -12.93 | 335.23 | -12.20 | 148.58 | 0.3968 | -622.0 | -470.5 | |
| 0.00 | 2.16 | 0.00 | 1.13 | -6.90 | 334.52 | -12.90 | 136.80 | 0.3253 | 766.0 | 622.8 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -5.32 | 333.97 | -13.46 | 132.06 | 0.3135 | 956.0 | 736.9 | |
| 21.13 | 29.68 | 11.26 | 15.81 | -9.50 | 333.39 | -14.04 | 139.44 | 0.3695 | 1075.2 | 659.3 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -5.84 | 331.37 | -16.06 | 128.19 | 0.3516 | 875.0 | 646.2 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -5.51 | 331.03 | -16.39 | 126.86 | 0.3526 | 819.0 | 612.9 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -5.33 | 330.78 | -16.64 | 126.03 | 0.3542 | 925.0 | 737.7 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -5.29 | 330.15 | -17.28 | 124.90 | 0.3622 | 674.0 | 475.5 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -7.00 | 330.05 | -17.37 | 128.47 | 0.3801 | 868.0 | 685.6 | |
| 0.00 | 1.80 | 0.00 | 0.97 | -7.92 | 329.82 | -17.60 | 129.94 | 0.3924 | 777.0 | 556.5 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -11.25 | 329.60 | -17.82 | 135.59 | 0.4307 | 760.0 | 596.7 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -10.84 | 329.47 | -17.96 | 134.69 | 0.4277 | 741.0 | 592.8 | |
| 0.00 | 1.44 | 0.00 | 0.80 | -11.65 | 328.30 | -19.12 | 134.22 | 0.4495 | -830.0 | -717.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
