SDO HMI 2014-08-22 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.57 | 232.15 | 47.12 | 167.00 | -5.01 | 31.86 | 44.98 | 256.26 | 0.7268 | 85.4 | 274.1 | |
|
previous
or next observation for the same group /

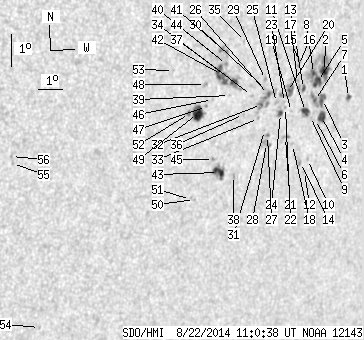

back to the solar disc SDO HMI 2014-08-22 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.35 | 2.79 | 1.04 | 2.14 | -5.19 | 35.27 | 48.40 | 257.16 | 0.7660 | 508.6 | 327.5 | |
| 7.01 | 47.03 | 5.24 | 34.97 | -4.28 | 34.10 | 47.22 | 257.98 | 0.7506 | 648.5 | 484.6 | |
| 3.87 | 15.20 | 2.90 | 11.35 | -5.14 | 34.08 | 47.21 | 256.85 | 0.7528 | 455.1 | 557.2 | |
| 5.40 | 8.81 | 4.06 | 6.63 | -5.67 | 34.09 | 47.22 | 256.17 | 0.7544 | 547.7 | 340.1 | |
| 5.40 | -2.00 | 4.01 | -2.00 | -4.56 | 33.81 | 46.93 | 257.52 | 0.7481 | 794.8 | 999999 | |
| 0.00 | 1.53 | 0.00 | 1.14 | -5.74 | 33.83 | 46.95 | 256.00 | 0.7517 | 473.0 | 417.7 | |
| 1.08 | -3.00 | 0.80 | -3.00 | -5.14 | 33.72 | 46.85 | 256.74 | 0.7488 | 830.1 | 999999 | |
| 1.62 | -2.00 | 1.20 | -2.00 | -4.30 | 33.61 | 46.73 | 257.80 | 0.7451 | 929.8 | 999999 | |
| 0.00 | 1.44 | 0.00 | 1.07 | -5.63 | 33.59 | 46.72 | 256.07 | 0.7487 | 451.0 | 449.2 | |
| 0.00 | 0.99 | 0.00 | 0.74 | -6.96 | 33.62 | 46.74 | 254.35 | 0.7530 | 515.0 | 442.0 | |
| 4.14 | 7.10 | 3.06 | 5.26 | -5.45 | 33.35 | 46.48 | 256.22 | 0.7455 | 802.0 | 618.4 | |
| 0.00 | 0.81 | 0.00 | 0.61 | -7.33 | 33.53 | 46.65 | 253.85 | 0.7532 | 437.0 | 417.9 | |
| 1.35 | 4.68 | 0.99 | 3.44 | -4.72 | 33.20 | 46.32 | 257.11 | 0.7417 | 755.7 | 655.2 | |
| 0.00 | 1.71 | 0.00 | 1.27 | -7.03 | 33.31 | 46.43 | 254.16 | 0.7498 | 570.0 | 491.8 | |
| 0.00 | 1.89 | 0.00 | 1.38 | -3.87 | 32.95 | 46.08 | 258.17 | 0.7365 | 766.0 | 649.9 | |
| 0.00 | 0.81 | 0.00 | 0.59 | -3.99 | 32.92 | 46.04 | 258.00 | 0.7364 | 808.0 | 709.9 | |
| 0.00 | 1.35 | 0.00 | 0.99 | -4.45 | 32.91 | 46.03 | 257.38 | 0.7376 | 692.0 | 549.4 | |
| 0.00 | 1.17 | 0.00 | 0.86 | -6.43 | 32.88 | 46.01 | 254.78 | 0.7432 | 558.0 | 392.3 | |
| 0.00 | 0.99 | 0.00 | 0.72 | -5.39 | 32.73 | 45.85 | 256.08 | 0.7383 | 592.0 | 490.0 | |
| 0.00 | 11.51 | 0.00 | 8.37 | -4.75 | 32.49 | 45.62 | 256.85 | 0.7337 | 757.0 | 671.2 | |
| 0.00 | 2.79 | 0.00 | 2.04 | -6.18 | 32.55 | 45.67 | 254.98 | 0.7386 | 647.0 | 558.5 | |
| 0.00 | 0.81 | 0.00 | 0.59 | -5.25 | 32.45 | 45.57 | 256.18 | 0.7347 | 629.0 | 513.2 | |
| 0.00 | 0.63 | 0.00 | 0.46 | -5.09 | 32.39 | 45.52 | 256.37 | 0.7335 | 753.0 | 663.4 | |
| 1.71 | 4.68 | 1.24 | 3.39 | -5.41 | 32.25 | 45.37 | 255.89 | 0.7329 | 804.5 | 604.6 | |
| 0.00 | 2.25 | 0.00 | 1.62 | -5.05 | 32.04 | 45.17 | 256.29 | 0.7294 | 728.0 | 629.9 | |
| 1.17 | 17.45 | 0.84 | 12.47 | -4.77 | 31.67 | 44.80 | 256.54 | 0.7243 | 927.1 | 721.8 | |
| 0.00 | 1.53 | 0.00 | 1.10 | -6.05 | 31.75 | 44.87 | 254.87 | 0.7291 | 875.0 | 714.2 | |
| 0.00 | 5.40 | 0.00 | 3.89 | -6.30 | 31.73 | 44.86 | 254.53 | 0.7297 | 615.0 | 668.4 | |
| 0.00 | 1.62 | 0.00 | 1.15 | -4.30 | 31.51 | 44.63 | 257.13 | 0.7209 | 760.0 | 594.1 | |
| 0.00 | 1.26 | 0.00 | 0.90 | -4.61 | 31.53 | 44.65 | 256.72 | 0.7221 | 741.0 | 618.0 | |
| 0.00 | 0.72 | 0.00 | 0.52 | -5.88 | 31.60 | 44.73 | 255.04 | 0.7269 | 616.0 | 512.1 | |
| 0.54 | -26.00 | 0.39 | -26.00 | -5.06 | 31.40 | 44.52 | 256.06 | 0.7219 | 997.7 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.71 | -5.48 | 31.31 | 44.43 | 255.46 | 0.7222 | 702.0 | 612.4 | |
| 0.00 | 1.26 | 0.00 | 0.89 | -4.74 | 30.94 | 44.07 | 256.33 | 0.7156 | 158.0 | 170.5 | |
| 0.00 | 0.54 | 0.00 | 0.38 | -3.04 | 30.58 | 43.70 | 258.54 | 0.7063 | -323.0 | -359.7 | |
| 0.00 | 0.90 | 0.00 | 0.63 | -5.30 | 30.65 | 43.77 | 255.47 | 0.7139 | 652.0 | 583.7 | |
| 3.87 | 26.44 | 2.69 | 18.31 | -4.27 | 30.19 | 43.31 | 256.71 | 0.7052 | -498.1 | -359.3 | |
| 0.00 | 1.44 | 0.00 | 1.02 | -7.18 | 30.42 | 43.54 | 252.85 | 0.7176 | -510.0 | -369.5 | |
| 0.00 | 0.81 | 0.00 | 0.56 | -4.66 | 30.01 | 43.13 | 256.11 | 0.7042 | -238.0 | -166.0 | |
| 0.00 | 2.07 | 0.00 | 1.43 | -3.69 | 29.82 | 42.94 | 257.39 | 0.6989 | -588.0 | -500.3 | |
| 0.00 | 6.11 | 0.00 | 4.21 | -3.24 | 29.67 | 42.79 | 257.96 | 0.6958 | -642.0 | -602.4 | |
| 8.81 | -37.00 | 6.07 | -37.00 | -3.98 | 29.63 | 42.75 | 256.92 | 0.6975 | -818.4 | 999999 | |
| 6.92 | 14.12 | 4.85 | 9.89 | -7.03 | 29.77 | 42.90 | 252.79 | 0.7095 | -740.3 | -487.4 | |
| 0.00 | 1.62 | 0.00 | 1.11 | -3.44 | 29.43 | 42.55 | 257.60 | 0.6935 | -906.0 | -724.8 | |
| 0.00 | 1.44 | 0.00 | 1.00 | -6.60 | 29.52 | 42.64 | 253.26 | 0.7050 | -751.0 | -515.1 | |
| 0.00 | 0.90 | 0.00 | 0.62 | -4.73 | 29.30 | 42.43 | 255.76 | 0.6960 | -501.0 | -440.6 | |
| 0.00 | 0.99 | 0.00 | 0.68 | -4.92 | 29.07 | 42.20 | 255.40 | 0.6938 | -508.0 | -441.6 | |
| 0.00 | 1.89 | 0.00 | 1.29 | -4.23 | 28.98 | 42.11 | 256.33 | 0.6905 | -781.0 | -555.9 | |
| 10.70 | 14.39 | 7.31 | 9.82 | -5.11 | 28.72 | 41.84 | 255.00 | 0.6901 | -778.5 | -472.2 | |
| 0.00 | 0.99 | 0.00 | 0.69 | -7.80 | 28.86 | 41.99 | 251.36 | 0.7018 | -432.0 | -433.6 | |
| 0.00 | 0.36 | 0.00 | 0.25 | -7.78 | 28.70 | 41.82 | 251.30 | 0.6998 | -538.0 | -464.2 | |
| 0.63 | 1.98 | 0.43 | 1.34 | -5.08 | 28.39 | 41.51 | 254.91 | 0.6860 | -853.0 | -780.3 | |
| 0.00 | 0.72 | 0.00 | 0.48 | -3.69 | 27.65 | 40.77 | 256.60 | 0.6722 | -607.0 | -540.5 | |
| 0.00 | 0.81 | 0.00 | 0.53 | -11.38 | 23.18 | 36.31 | 243.36 | 0.6517 | -501.0 | -482.2 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -6.11 | 21.59 | 34.71 | 250.16 | 0.6041 | -512.0 | -436.7 | |
| 0.00 | 1.44 | 0.00 | 0.89 | -5.89 | 21.53 | 34.66 | 250.47 | 0.6024 | -624.0 | -451.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
