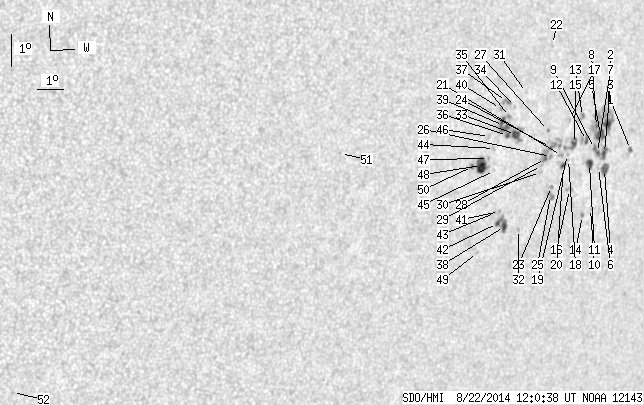

SDO HMI 2014-08-22 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.74 | 235.69 | 48.41 | 171.41 | -4.95 | 31.92 | 45.60 | 256.54 | 0.7337 | 80.9 | 266.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-22 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.99 | 2.88 | 0.77 | 2.23 | -5.19 | 35.27 | 48.95 | 257.34 | 0.7720 | 559.6 | 312.7 | |
| 4.68 | 53.23 | 3.53 | 40.02 | -4.28 | 34.13 | 47.80 | 258.16 | 0.7571 | 675.3 | 459.3 | |
| 3.60 | 16.45 | 2.72 | 12.42 | -5.17 | 34.07 | 47.75 | 256.99 | 0.7589 | 479.1 | 522.7 | |
| 4.86 | 7.91 | 3.69 | 6.02 | -5.70 | 34.13 | 47.80 | 256.33 | 0.7610 | 544.4 | 305.6 | |
| 6.83 | -2.00 | 5.14 | -2.00 | -4.59 | 33.84 | 47.51 | 257.67 | 0.7547 | 780.7 | 999999 | |
| 0.00 | 1.89 | 0.00 | 1.43 | -5.61 | 33.85 | 47.52 | 256.35 | 0.7576 | 595.0 | 483.5 | |
| 1.08 | -3.00 | 0.81 | -3.00 | -5.14 | 33.75 | 47.43 | 256.93 | 0.7553 | 814.2 | 999999 | |
| 0.81 | -2.00 | 0.61 | -2.00 | -4.32 | 33.64 | 47.31 | 257.95 | 0.7517 | 929.4 | 999999 | |
| 0.99 | -3.00 | 0.74 | -3.00 | -5.00 | 33.61 | 47.28 | 257.06 | 0.7532 | 819.5 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.95 | -6.86 | 33.63 | 47.31 | 254.68 | 0.7589 | 454.0 | 423.8 | |
| 3.87 | 6.11 | 2.90 | 4.58 | -5.45 | 33.42 | 47.10 | 256.42 | 0.7525 | 819.7 | 611.3 | |
| 1.53 | 6.56 | 1.14 | 4.87 | -4.72 | 33.22 | 46.89 | 257.31 | 0.7481 | 742.8 | 584.9 | |
| 0.00 | 3.06 | 0.00 | 2.26 | -3.96 | 32.98 | 46.65 | 258.23 | 0.7434 | 721.0 | 691.4 | |
| 0.00 | 1.98 | 0.00 | 1.49 | -7.05 | 33.30 | 46.97 | 254.32 | 0.7558 | 615.0 | 490.5 | |
| 3.42 | 8.99 | 2.52 | 6.61 | -4.76 | 32.69 | 46.36 | 257.08 | 0.7423 | 793.3 | 646.3 | |
| 0.00 | 3.06 | 0.00 | 2.26 | -6.18 | 32.61 | 46.28 | 255.20 | 0.7455 | 616.0 | 570.8 | |
| 0.00 | 1.44 | 0.00 | 1.05 | -4.00 | 32.41 | 46.08 | 258.00 | 0.7369 | 563.0 | 445.6 | |
| 0.00 | 0.81 | 0.00 | 0.60 | -5.24 | 32.47 | 46.14 | 256.38 | 0.7411 | 642.0 | 528.1 | |
| 0.00 | 0.81 | 0.00 | 0.59 | -5.08 | 32.41 | 46.08 | 256.57 | 0.7400 | 678.0 | 623.6 | |
| 1.53 | 3.60 | 1.12 | 2.63 | -5.40 | 32.26 | 45.94 | 256.09 | 0.7393 | 780.0 | 580.6 | |
| 0.00 | 2.25 | 0.00 | 1.64 | -5.08 | 32.15 | 45.82 | 256.48 | 0.7370 | 821.0 | 670.6 | |
| 0.00 | 1.62 | 0.00 | 1.15 | -1.61 | 31.55 | 45.22 | 260.95 | 0.7208 | 207.0 | 298.9 | |
| 0.00 | 1.44 | 0.00 | 1.05 | -6.01 | 31.80 | 45.47 | 255.13 | 0.7359 | 798.0 | 698.4 | |
| 0.90 | 19.96 | 0.65 | 14.43 | -4.79 | 31.64 | 45.31 | 256.69 | 0.7303 | 888.1 | 674.6 | |
| 0.00 | 5.66 | 0.00 | 4.13 | -6.29 | 31.79 | 45.46 | 254.76 | 0.7366 | 794.0 | 654.2 | |
| 0.00 | 1.71 | 0.00 | 1.24 | -5.07 | 31.66 | 45.34 | 256.33 | 0.7314 | 743.0 | 652.6 | |
| 0.00 | 1.26 | 0.00 | 0.91 | -4.26 | 31.51 | 45.18 | 257.37 | 0.7273 | 723.0 | 643.6 | |
| 1.53 | -24.00 | 1.10 | -24.00 | -5.12 | 31.45 | 45.12 | 256.20 | 0.7291 | 890.1 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.84 | -5.32 | 31.30 | 44.97 | 255.87 | 0.7279 | 813.0 | 669.2 | |
| 0.00 | 1.44 | 0.00 | 1.04 | -5.53 | 31.27 | 44.95 | 255.58 | 0.7283 | 633.0 | 572.8 | |
| 0.00 | 0.81 | 0.00 | 0.57 | -3.00 | 30.49 | 44.16 | 258.75 | 0.7117 | -488.0 | -426.7 | |
| 0.00 | 1.17 | 0.00 | 0.84 | -7.24 | 30.51 | 44.19 | 253.03 | 0.7252 | -503.0 | -435.3 | |
| 5.21 | 28.77 | 3.66 | 20.11 | -4.26 | 30.10 | 43.77 | 256.89 | 0.7106 | -493.6 | -321.1 | |
| 0.00 | 0.90 | 0.00 | 0.63 | -3.39 | 30.04 | 43.72 | 258.07 | 0.7074 | -376.0 | -317.4 | |
| 0.00 | 1.80 | 0.00 | 1.25 | -3.68 | 29.81 | 43.48 | 257.59 | 0.7054 | -594.0 | -519.8 | |
| 1.35 | -33.00 | 0.94 | -33.00 | -4.26 | 29.76 | 43.43 | 256.77 | 0.7066 | -647.9 | 999999 | |
| 0.00 | 4.41 | 0.00 | 3.06 | -3.20 | 29.65 | 43.33 | 258.20 | 0.7022 | -617.0 | -615.4 | |
| 3.60 | 12.14 | 2.55 | 8.59 | -7.09 | 29.90 | 43.57 | 252.98 | 0.7176 | -639.3 | -535.0 | |
| 6.38 | -33.00 | 4.44 | -33.00 | -3.93 | 29.57 | 43.24 | 257.16 | 0.7034 | -858.6 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.87 | -3.40 | 29.41 | 43.09 | 257.85 | 0.6998 | -724.0 | -715.9 | |
| 0.00 | 1.08 | 0.00 | 0.76 | -6.60 | 29.63 | 43.31 | 253.53 | 0.7128 | -530.0 | -407.2 | |
| 1.53 | -38.00 | 1.08 | -38.00 | -6.97 | 29.59 | 43.26 | 253.02 | 0.7136 | -814.4 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.82 | -6.62 | 29.47 | 43.14 | 253.44 | 0.7109 | -715.0 | -552.9 | |
| 0.00 | 1.35 | 0.00 | 0.93 | -4.62 | 29.24 | 42.92 | 256.09 | 0.7015 | -672.0 | -526.1 | |
| 0.00 | 0.63 | 0.00 | 0.44 | -5.30 | 29.30 | 42.97 | 255.17 | 0.7044 | -321.0 | -277.4 | |
| 0.00 | 1.98 | 0.00 | 1.36 | -4.22 | 29.01 | 42.68 | 256.55 | 0.6974 | -837.0 | -614.3 | |
| 0.00 | 1.26 | 0.00 | 0.87 | -4.91 | 29.01 | 42.69 | 255.61 | 0.6997 | -385.0 | -347.9 | |
| 11.15 | 15.37 | 7.68 | 10.59 | -5.10 | 28.74 | 42.41 | 255.24 | 0.6970 | -767.8 | -419.2 | |
| 0.00 | 1.08 | 0.00 | 0.75 | -7.81 | 28.85 | 42.53 | 251.57 | 0.7082 | -472.0 | -441.9 | |
| 0.90 | 1.89 | 0.62 | 1.29 | -5.10 | 28.37 | 42.04 | 255.10 | 0.6925 | -827.2 | -719.0 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -4.28 | 23.10 | 36.77 | 254.06 | 0.6231 | -622.0 | -472.1 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -11.02 | 11.85 | 25.52 | 234.94 | 0.5187 | -617.0 | -493.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
