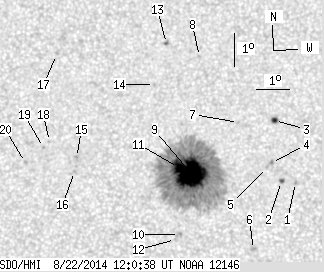

SDO HMI 2014-08-22 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.28 | 424.50 | 32.39 | 210.69 | 9.04 | 343.69 | -2.64 | 63.44 | 0.0595 | -730.3 | -398.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-22 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.71 | 8.73 | 346.93 | 0.60 | 341.63 | 0.0332 | 886.0 | 644.6 | |
| 0.81 | 1.89 | 0.40 | 0.94 | 8.77 | 346.50 | 0.18 | 354.60 | 0.0322 | 1083.9 | 882.9 | |
| 2.07 | 3.33 | 1.03 | 1.65 | 10.62 | 346.29 | -0.04 | 0.57 | 0.0645 | 925.3 | 756.4 | |
| 0.00 | 1.80 | 0.00 | 0.89 | 9.34 | 346.20 | -0.13 | 3.08 | 0.0423 | 1080.0 | 854.2 | |
| 0.00 | 1.26 | 0.00 | 0.62 | 9.19 | 346.07 | -0.25 | 6.35 | 0.0398 | 814.0 | 628.8 | |
| 0.00 | 2.34 | 0.00 | 1.16 | 6.71 | 345.64 | -0.68 | 108.75 | 0.0126 | -992.0 | -795.7 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 10.56 | 345.18 | -1.15 | 17.31 | 0.0665 | 813.0 | 594.3 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 12.56 | 343.96 | -2.37 | 22.32 | 0.1066 | -952.0 | -693.4 | |
| 52.42 | 395.70 | 26.01 | 196.38 | 8.97 | 343.77 | -2.56 | 50.98 | 0.0570 | -1437.0 | -448.4 | |
| 0.00 | 2.70 | 0.00 | 1.34 | 7.15 | 343.38 | -2.94 | 85.55 | 0.0514 | -331.0 | -181.0 | |
| 9.98 | -9.00 | 4.95 | -9.00 | 9.19 | 343.34 | -2.99 | 52.55 | 0.0651 | -1289.1 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 7.00 | 343.26 | -3.07 | 88.57 | 0.0534 | 764.0 | 535.3 | |
| 0.00 | 1.98 | 0.00 | 0.99 | 12.95 | 342.93 | -3.40 | 28.80 | 0.1204 | -1024.0 | -815.9 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 11.70 | 342.57 | -3.75 | 37.57 | 0.1056 | -722.0 | -512.6 | |
| 0.00 | 2.16 | 0.00 | 1.08 | 9.46 | 340.19 | -6.14 | 66.99 | 0.1151 | 1005.0 | 803.5 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 9.04 | 340.14 | -6.19 | 70.66 | 0.1134 | 835.0 | 630.5 | |
| 0.00 | 0.54 | 0.00 | 0.27 | 12.59 | 339.50 | -6.82 | 49.43 | 0.1533 | 605.0 | 623.2 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 9.94 | 339.35 | -6.98 | 66.02 | 0.1316 | 776.0 | 632.3 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 9.75 | 339.16 | -7.16 | 67.82 | 0.1333 | 809.0 | 628.1 | |
| 0.00 | 1.71 | 0.00 | 0.85 | 9.29 | 338.62 | -7.71 | 72.34 | 0.1396 | 853.0 | 673.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
