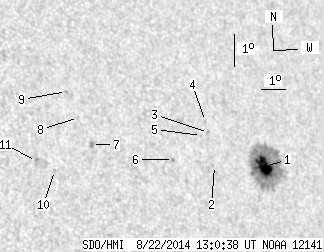

SDO HMI 2014-08-22 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.88 | 129.20 | 12.79 | 86.93 | 16.50 | 28.14 | 42.37 | 286.96 | 0.6774 | -598.6 | -262.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-22 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.88 | 115.61 | 12.79 | 78.43 | 16.39 | 28.72 | 42.95 | 286.64 | 0.6845 | -1036.0 | -313.4 | |
| 0.00 | 0.45 | 0.00 | 0.30 | 16.59 | 26.64 | 40.87 | 287.35 | 0.6592 | -580.0 | -570.4 | |
| 0.00 | 1.17 | 0.00 | 0.77 | 17.61 | 26.67 | 40.89 | 288.88 | 0.6617 | -753.0 | -623.8 | |
| 0.00 | 1.08 | 0.00 | 0.71 | 17.96 | 26.64 | 40.86 | 289.40 | 0.6621 | -699.0 | -637.8 | |
| 0.00 | 0.90 | 0.00 | 0.59 | 17.55 | 26.35 | 40.58 | 288.85 | 0.6577 | -713.0 | -601.3 | |
| 0.00 | 1.17 | 0.00 | 0.75 | 16.90 | 25.02 | 39.25 | 288.21 | 0.6395 | -765.0 | -657.3 | |
| 0.00 | 2.79 | 0.00 | 1.72 | 17.59 | 21.89 | 36.11 | 290.23 | 0.6010 | 650.0 | 563.7 | |
| 0.00 | 0.54 | 0.00 | 0.33 | 18.46 | 21.58 | 35.81 | 291.75 | 0.5997 | 467.0 | 366.5 | |
| 0.00 | 1.08 | 0.00 | 0.67 | 19.29 | 21.31 | 35.54 | 293.20 | 0.5991 | 462.0 | 332.1 | |
| 0.00 | 1.44 | 0.00 | 0.87 | 16.90 | 20.29 | 34.52 | 289.62 | 0.5778 | 702.0 | 618.5 | |
| 0.00 | 2.97 | 0.00 | 1.79 | 17.22 | 19.67 | 33.89 | 290.40 | 0.5704 | 837.0 | 668.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
