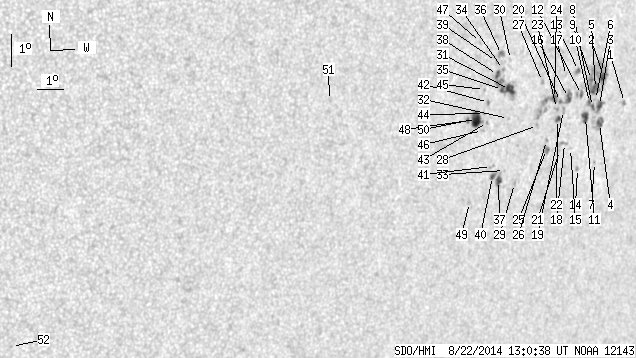

SDO HMI 2014-08-22 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.87 | 226.41 | 46.03 | 166.39 | -4.97 | 32.02 | 46.25 | 256.73 | 0.7412 | 95.6 | 256.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-22 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.71 | 0.00 | 1.34 | -5.18 | 35.28 | 49.50 | 257.52 | 0.7779 | 640.0 | 533.9 | |
| 4.58 | 49.26 | 3.51 | 37.47 | -4.27 | 34.21 | 48.44 | 258.35 | 0.7641 | 630.2 | 484.2 | |
| 3.69 | 14.47 | 2.83 | 11.05 | -5.16 | 34.11 | 48.34 | 257.19 | 0.7653 | 438.7 | 500.5 | |
| 2.34 | 12.50 | 1.80 | 9.60 | -5.72 | 34.17 | 48.40 | 256.49 | 0.7675 | 549.1 | 432.6 | |
| 6.20 | -2.00 | 4.72 | -2.00 | -4.61 | 33.88 | 48.10 | 257.81 | 0.7613 | 785.8 | 999999 | |
| 0.00 | 1.44 | 0.00 | 1.10 | -4.95 | 33.91 | 48.13 | 257.39 | 0.7625 | 534.0 | 437.2 | |
| 0.00 | 0.99 | 0.00 | 0.76 | -6.93 | 34.09 | 48.32 | 254.94 | 0.7700 | 644.0 | 483.0 | |
| 0.72 | -3.00 | 0.55 | -3.00 | -5.16 | 33.79 | 48.02 | 257.09 | 0.7618 | 810.9 | 999999 | |
| 0.99 | -2.00 | 0.75 | -2.00 | -4.31 | 33.67 | 47.89 | 258.13 | 0.7582 | 922.2 | 999999 | |
| 1.08 | -3.00 | 0.82 | -3.00 | -5.02 | 33.64 | 47.87 | 257.22 | 0.7598 | 815.8 | 999999 | |
| 4.41 | 6.74 | 3.34 | 5.11 | -5.47 | 33.50 | 47.73 | 256.59 | 0.7595 | 787.5 | 603.5 | |
| 1.17 | 4.67 | 0.88 | 3.51 | -4.74 | 33.25 | 47.48 | 257.46 | 0.7547 | 772.6 | 616.5 | |
| 1.26 | 2.79 | 0.94 | 2.08 | -3.98 | 33.05 | 47.28 | 258.38 | 0.7505 | 756.4 | 646.9 | |
| 0.00 | 1.80 | 0.00 | 1.37 | -7.04 | 33.33 | 47.55 | 254.54 | 0.7621 | 644.0 | 495.5 | |
| 0.00 | 0.90 | 0.00 | 0.68 | -6.38 | 32.93 | 47.15 | 255.24 | 0.7558 | 523.0 | 465.6 | |
| 3.51 | 29.22 | 2.61 | 21.47 | -4.78 | 32.67 | 46.89 | 257.23 | 0.7483 | 794.5 | 701.6 | |
| 0.00 | 0.81 | 0.00 | 0.60 | -4.09 | 32.52 | 46.75 | 258.09 | 0.7448 | 638.0 | 530.8 | |
| 0.00 | 2.52 | 0.00 | 1.88 | -6.20 | 32.64 | 46.86 | 255.37 | 0.7520 | 696.0 | 582.9 | |
| 0.00 | 2.70 | 0.00 | 2.00 | -5.16 | 32.48 | 46.71 | 256.66 | 0.7473 | 553.0 | 541.1 | |
| 0.54 | -16.00 | 0.40 | -16.00 | -4.87 | 32.32 | 46.55 | 256.99 | 0.7446 | 675.2 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.54 | -6.40 | 32.44 | 46.66 | 255.05 | 0.7504 | 500.0 | 405.8 | |
| 1.80 | 2.97 | 1.33 | 2.20 | -5.42 | 32.24 | 46.46 | 256.25 | 0.7453 | 751.5 | 642.7 | |
| 0.00 | 1.98 | 0.00 | 1.46 | -5.07 | 32.16 | 46.39 | 256.68 | 0.7434 | 747.0 | 734.9 | |
| 2.43 | -16.00 | 1.78 | -16.00 | -4.75 | 32.04 | 46.27 | 257.06 | 0.7412 | 892.1 | 999999 | |
| 0.00 | 4.14 | 0.00 | 3.05 | -6.32 | 31.85 | 46.07 | 254.95 | 0.7436 | 791.0 | 704.9 | |
| 0.00 | 1.17 | 0.00 | 0.86 | -6.03 | 31.82 | 46.04 | 255.31 | 0.7423 | 699.0 | 614.9 | |
| 0.00 | 2.16 | 0.00 | 1.57 | -4.18 | 31.47 | 45.70 | 257.64 | 0.7330 | 678.0 | 574.2 | |
| 0.00 | 1.80 | 0.00 | 1.31 | -5.53 | 31.37 | 45.59 | 255.81 | 0.7357 | 696.0 | 594.4 | |
| 0.00 | 0.90 | 0.00 | 0.65 | -7.26 | 30.56 | 44.79 | 253.24 | 0.7321 | -301.0 | -378.0 | |
| 0.00 | 1.35 | 0.00 | 0.95 | -3.37 | 30.04 | 44.26 | 258.26 | 0.7139 | -279.0 | -252.7 | |
| 7.10 | 26.79 | 5.03 | 18.89 | -4.30 | 30.05 | 44.28 | 257.01 | 0.7168 | -430.8 | -450.0 | |
| 0.00 | 0.99 | 0.00 | 0.70 | -5.20 | 30.08 | 44.31 | 255.80 | 0.7199 | 514.0 | 536.9 | |
| 0.00 | 0.90 | 0.00 | 0.64 | -6.81 | 30.08 | 44.30 | 253.64 | 0.7251 | -240.0 | -166.0 | |
| 0.00 | 1.44 | 0.00 | 1.01 | -3.66 | 29.76 | 43.98 | 257.78 | 0.7114 | -634.0 | -524.7 | |
| 2.16 | -31.00 | 1.52 | -31.00 | -4.27 | 29.76 | 43.98 | 256.94 | 0.7132 | -638.6 | 999999 | |
| 0.00 | 4.49 | 0.00 | 3.15 | -3.19 | 29.65 | 43.87 | 258.40 | 0.7087 | -689.0 | -628.2 | |
| 3.60 | 10.97 | 2.57 | 7.83 | -7.10 | 29.86 | 44.08 | 253.17 | 0.7235 | -616.7 | -448.7 | |
| 2.25 | -31.00 | 1.57 | -31.00 | -3.79 | 29.51 | 43.74 | 257.52 | 0.7088 | -875.5 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.26 | -3.38 | 29.44 | 43.67 | 258.06 | 0.7068 | -646.0 | -592.7 | |
| 1.71 | -37.00 | 1.22 | -37.00 | -6.96 | 29.58 | 43.81 | 253.26 | 0.7199 | -779.5 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.47 | -6.64 | 29.50 | 43.73 | 253.65 | 0.7178 | -596.0 | -496.9 | |
| 0.00 | 1.80 | 0.00 | 1.26 | -4.63 | 29.19 | 43.41 | 256.26 | 0.7075 | -575.0 | -485.5 | |
| 0.00 | 1.17 | 0.00 | 0.82 | -5.25 | 29.20 | 43.42 | 255.42 | 0.7096 | -288.0 | -225.9 | |
| 0.00 | 1.08 | 0.00 | 0.75 | -4.95 | 29.05 | 43.27 | 255.76 | 0.7069 | -519.0 | -387.8 | |
| 0.00 | 1.08 | 0.00 | 0.75 | -4.21 | 28.99 | 43.22 | 256.76 | 0.7038 | -779.0 | -707.1 | |
| 0.00 | 1.44 | 0.00 | 1.01 | -5.48 | 29.01 | 43.23 | 255.03 | 0.7081 | -477.0 | -367.7 | |
| 0.00 | 1.17 | 0.00 | 0.80 | -2.74 | 28.74 | 42.97 | 258.73 | 0.6965 | -649.0 | -459.8 | |
| 10.43 | 14.29 | 7.24 | 9.93 | -5.11 | 28.73 | 42.95 | 255.42 | 0.7035 | -787.0 | -469.5 | |
| 0.00 | 1.62 | 0.00 | 1.14 | -7.69 | 28.70 | 42.93 | 251.91 | 0.7123 | -685.0 | -500.2 | |
| 0.90 | 2.16 | 0.62 | 1.49 | -5.11 | 28.35 | 42.58 | 255.28 | 0.6990 | -840.8 | -751.4 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -4.05 | 22.80 | 37.02 | 254.52 | 0.6254 | -365.0 | -387.4 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -11.02 | 11.88 | 26.11 | 235.55 | 0.5258 | -636.0 | -505.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
