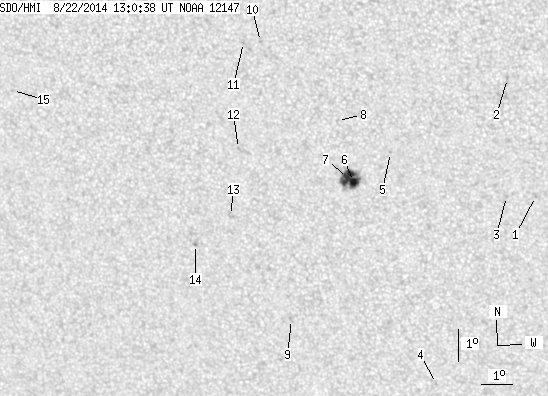

SDO HMI 2014-08-22 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.77 | 48.48 | 10.98 | 25.77 | -9.64 | 332.89 | -12.88 | 142.36 | 0.3612 | 669.2 | 365.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-22 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.52 | -9.95 | 339.23 | -6.54 | 158.82 | 0.3120 | 714.0 | 540.5 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -6.25 | 338.44 | -7.34 | 150.80 | 0.2614 | 917.0 | 643.6 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -9.96 | 338.33 | -7.44 | 156.23 | 0.3178 | 794.0 | 628.3 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -16.04 | 335.91 | -9.87 | 157.03 | 0.4238 | 432.0 | 471.5 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -8.64 | 334.76 | -11.02 | 144.65 | 0.3279 | 816.0 | 616.8 | |
| 8.27 | 30.93 | 4.37 | 16.36 | -9.58 | 333.57 | -12.21 | 143.48 | 0.3519 | 1065.2 | 592.0 | |
| 12.50 | -6.00 | 6.61 | -6.00 | -9.46 | 333.38 | -12.39 | 142.86 | 0.3521 | 1000.1 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -7.67 | 333.13 | -12.64 | 138.97 | 0.3319 | 665.0 | 512.2 | |
| 0.00 | 2.25 | 0.00 | 1.23 | -14.06 | 331.36 | -14.41 | 145.75 | 0.4308 | -714.0 | -604.5 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -5.28 | 330.78 | -14.99 | 128.84 | 0.3322 | 803.0 | 669.7 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -5.32 | 330.24 | -15.53 | 127.95 | 0.3396 | 554.0 | 495.2 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -8.64 | 329.97 | -15.81 | 134.43 | 0.3788 | 718.0 | 559.0 | |
| 0.00 | 3.24 | 0.00 | 1.75 | -10.78 | 329.60 | -16.17 | 137.59 | 0.4074 | 530.0 | 621.9 | |
| 0.00 | 1.53 | 0.00 | 0.84 | -11.74 | 328.41 | -17.36 | 137.14 | 0.4314 | -824.0 | -728.2 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -7.12 | 322.70 | -23.08 | 120.95 | 0.4554 | -622.0 | -444.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
