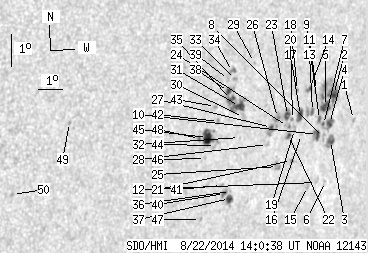

SDO HMI 2014-08-22 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.43 | 220.27 | 50.76 | 163.24 | -4.96 | 31.86 | 46.64 | 256.87 | 0.7455 | 119.2 | 216.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-22 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 1.28 | -5.16 | 35.24 | 50.02 | 257.68 | 0.7834 | 600.0 | 507.3 | |
| 7.82 | 57.17 | 6.05 | 44.05 | -4.29 | 34.22 | 48.99 | 258.48 | 0.7702 | 569.6 | 465.9 | |
| 4.13 | 8.72 | 3.22 | 6.79 | -5.72 | 34.22 | 48.99 | 256.68 | 0.7739 | 490.5 | 339.2 | |
| 3.51 | -2.00 | 2.72 | -2.00 | -5.18 | 34.11 | 48.89 | 257.33 | 0.7714 | 456.5 | 999999 | |
| 6.47 | -2.00 | 4.98 | -2.00 | -4.63 | 33.87 | 48.65 | 257.95 | 0.7674 | 768.5 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.28 | -6.98 | 34.15 | 48.92 | 255.08 | 0.7766 | 603.0 | 511.2 | |
| 0.63 | -2.00 | 0.48 | -2.00 | -5.18 | 33.84 | 48.61 | 257.24 | 0.7684 | 732.9 | 999999 | |
| 0.00 | 2.70 | 0.00 | 2.08 | -5.59 | 33.88 | 48.66 | 256.74 | 0.7699 | 602.0 | 501.3 | |
| 1.26 | -2.00 | 0.97 | -2.00 | -5.01 | 33.63 | 48.41 | 257.40 | 0.7657 | 800.3 | 999999 | |
| 3.33 | 7.10 | 2.55 | 5.45 | -5.47 | 33.59 | 48.36 | 256.80 | 0.7664 | 806.1 | 614.6 | |
| 0.00 | 0.36 | 0.00 | 0.27 | -4.10 | 33.41 | 48.19 | 258.50 | 0.7610 | 463.0 | 512.0 | |
| 0.00 | 0.81 | 0.00 | 0.63 | -6.97 | 33.73 | 48.50 | 254.95 | 0.7721 | 596.0 | 513.9 | |
| 1.17 | 6.74 | 0.89 | 5.12 | -4.73 | 33.29 | 48.06 | 257.65 | 0.7612 | 781.2 | 613.8 | |
| 1.35 | 3.06 | 1.02 | 2.31 | -4.00 | 33.09 | 47.86 | 258.53 | 0.7571 | 744.7 | 631.3 | |
| 0.00 | 2.25 | 0.00 | 1.73 | -7.06 | 33.32 | 48.10 | 254.70 | 0.7681 | 601.0 | 461.9 | |
| 0.00 | 0.90 | 0.00 | 0.68 | -5.40 | 32.85 | 47.63 | 256.65 | 0.7582 | 520.0 | 430.6 | |
| 4.04 | 6.83 | 3.05 | 5.14 | -4.81 | 32.75 | 47.52 | 257.39 | 0.7554 | 784.8 | 574.7 | |
| 0.00 | 1.17 | 0.00 | 0.87 | -4.02 | 32.54 | 47.32 | 258.35 | 0.7511 | 729.0 | 606.6 | |
| 0.00 | 2.70 | 0.00 | 2.03 | -5.22 | 32.51 | 47.29 | 256.78 | 0.7539 | 532.0 | 545.4 | |
| 0.00 | 1.17 | 0.00 | 0.87 | -4.90 | 32.39 | 47.17 | 257.16 | 0.7517 | 712.0 | 592.9 | |
| 0.36 | 1.53 | 0.27 | 1.15 | -6.17 | 32.48 | 47.26 | 255.54 | 0.7563 | 737.2 | 683.1 | |
| 1.53 | 2.79 | 1.14 | 2.08 | -5.38 | 32.26 | 47.04 | 256.49 | 0.7516 | 769.9 | 644.3 | |
| 3.33 | 6.38 | 2.47 | 4.75 | -4.75 | 32.16 | 46.93 | 257.27 | 0.7487 | 833.8 | 631.1 | |
| 0.00 | 2.97 | 0.00 | 2.21 | -5.09 | 32.19 | 46.96 | 256.84 | 0.7500 | 661.0 | 668.1 | |
| 0.00 | 4.94 | 0.00 | 3.69 | -6.30 | 31.87 | 46.64 | 255.16 | 0.7499 | 741.0 | 687.5 | |
| 0.00 | 5.21 | 0.00 | 3.85 | -4.77 | 31.71 | 46.49 | 257.10 | 0.7437 | 737.0 | 670.4 | |
| 1.53 | 8.00 | 1.12 | 5.89 | -5.06 | 31.47 | 46.25 | 256.65 | 0.7418 | 814.5 | 662.7 | |
| 0.00 | 1.98 | 0.00 | 1.46 | -5.58 | 31.34 | 46.12 | 255.93 | 0.7419 | 608.0 | 553.7 | |
| 0.00 | 0.90 | 0.00 | 0.65 | -2.98 | 30.58 | 45.35 | 259.14 | 0.7258 | -431.0 | -385.4 | |
| 0.00 | 4.31 | 0.00 | 3.10 | -4.64 | 30.21 | 44.99 | 256.79 | 0.7261 | 433.0 | 312.3 | |
| 6.20 | 28.22 | 4.43 | 20.07 | -4.28 | 30.01 | 44.79 | 257.20 | 0.7227 | -539.4 | -444.0 | |
| 0.00 | 0.72 | 0.00 | 0.52 | -5.25 | 30.09 | 44.87 | 255.93 | 0.7265 | 439.0 | 505.8 | |
| 0.00 | 1.89 | 0.00 | 1.34 | -3.43 | 29.78 | 44.56 | 258.28 | 0.7176 | -591.0 | -552.1 | |
| 0.00 | 3.60 | 0.00 | 2.54 | -3.17 | 29.64 | 44.42 | 258.59 | 0.7152 | -704.0 | -622.8 | |
| 2.79 | -31.00 | 1.98 | -31.00 | -4.03 | 29.65 | 44.43 | 257.42 | 0.7178 | -863.8 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.58 | -6.90 | 29.88 | 44.65 | 253.65 | 0.7294 | -324.0 | -272.8 | |
| 3.60 | 10.07 | 2.60 | 7.26 | -7.12 | 29.86 | 44.64 | 253.36 | 0.7299 | -603.7 | -419.0 | |
| 2.61 | -31.00 | 1.84 | -31.00 | -3.78 | 29.51 | 44.28 | 257.72 | 0.7153 | -846.2 | 999999 | |
| 0.00 | 1.89 | 0.00 | 1.33 | -3.40 | 29.48 | 44.26 | 258.22 | 0.7140 | -750.0 | -518.8 | |
| 1.62 | -37.00 | 1.16 | -37.00 | -6.94 | 29.62 | 44.40 | 253.50 | 0.7266 | -735.0 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.29 | -6.68 | 29.46 | 44.24 | 253.79 | 0.7239 | -641.0 | -503.2 | |
| 0.00 | 1.98 | 0.00 | 1.39 | -4.67 | 29.14 | 43.92 | 256.38 | 0.7137 | -662.0 | -489.0 | |
| 0.00 | 1.71 | 0.00 | 1.20 | -4.19 | 28.98 | 43.76 | 256.97 | 0.7103 | -808.0 | -656.6 | |
| 0.00 | 2.97 | 0.00 | 2.10 | -5.41 | 29.08 | 43.86 | 255.36 | 0.7152 | -299.0 | -306.5 | |
| 10.52 | 14.92 | 7.38 | 10.47 | -5.13 | 28.72 | 43.49 | 255.60 | 0.7100 | -775.9 | -493.5 | |
| 0.00 | 0.99 | 0.00 | 0.69 | -5.78 | 28.69 | 43.47 | 254.71 | 0.7119 | -478.0 | -377.0 | |
| 0.00 | 1.35 | 0.00 | 0.96 | -7.67 | 28.69 | 43.47 | 252.16 | 0.7185 | -478.0 | -478.4 | |
| 0.63 | 1.89 | 0.44 | 1.32 | -5.13 | 28.38 | 43.16 | 255.47 | 0.7061 | -781.6 | -736.9 | |
| 0.00 | 1.26 | 0.00 | 0.81 | -4.21 | 23.10 | 37.87 | 254.66 | 0.6371 | -553.0 | -487.2 | |
| 0.00 | 1.53 | 0.00 | 0.96 | -6.28 | 21.06 | 35.84 | 250.51 | 0.6196 | -708.0 | -530.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
