SDO HMI 2014-08-22 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.40 | 51.88 | 10.74 | 27.42 | -9.74 | 333.37 | -11.31 | 146.21 | 0.3489 | 481.9 | 345.2 | |
|
previous
or next observation for the same group /

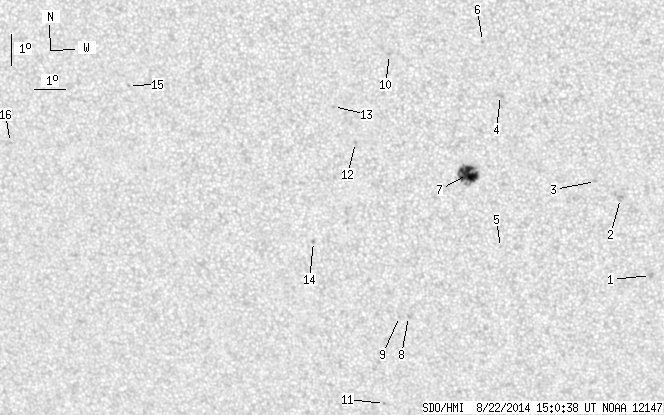

back to the solar disc SDO HMI 2014-08-22 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.88 | 0.00 | 1.52 | -12.64 | 339.13 | -5.54 | 164.27 | 0.3491 | 814.0 | 689.5 | |
| 0.00 | 3.59 | 0.00 | 1.88 | -10.19 | 338.25 | -6.42 | 159.47 | 0.3151 | 749.0 | 673.0 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -9.66 | 337.49 | -7.18 | 156.60 | 0.3117 | 858.0 | 665.6 | |
| 0.00 | 2.52 | 0.00 | 1.30 | -7.01 | 334.61 | -10.07 | 144.05 | 0.2968 | 688.0 | 587.3 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -11.82 | 334.46 | -10.21 | 151.50 | 0.3653 | -722.0 | -601.7 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -5.34 | 334.08 | -10.59 | 139.03 | 0.2802 | 730.0 | 589.4 | |
| 20.40 | 29.84 | 10.74 | 15.72 | -9.52 | 333.51 | -11.17 | 145.80 | 0.3412 | 1054.6 | 619.5 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -14.12 | 331.42 | -13.25 | 148.03 | 0.4216 | -862.0 | -689.0 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -14.13 | 331.13 | -13.54 | 147.48 | 0.4242 | -714.0 | -621.6 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -5.82 | 331.18 | -13.50 | 133.13 | 0.3195 | 748.0 | 651.6 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -17.00 | 330.44 | -14.23 | 149.69 | 0.4678 | -782.0 | -646.4 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -8.60 | 330.01 | -14.66 | 136.54 | 0.3653 | 688.0 | 500.0 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -7.49 | 329.36 | -15.31 | 133.09 | 0.3601 | 529.0 | 495.1 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -11.79 | 328.51 | -16.17 | 139.26 | 0.4194 | -882.0 | -731.6 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -7.09 | 322.76 | -21.91 | 122.26 | 0.4398 | -664.0 | -538.6 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -9.08 | 318.67 | -26.00 | 121.37 | 0.5090 | -102.0 | -255.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
