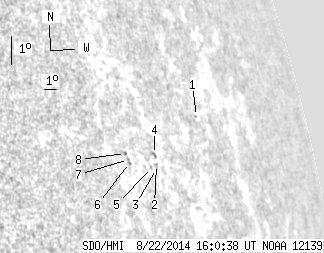

SDO HMI 2014-08-22 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.19 | 0.00 | 9.91 | 15.19 | 50.90 | 66.78 | 283.58 | 0.9137 | 249.1 | 242.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-22 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.45 | 0.00 | 0.67 | 15.92 | 55.74 | 71.63 | 284.48 | 0.9440 | -417.0 | -396.2 | |
| 0.00 | 1.26 | 0.00 | 1.55 | 14.91 | 51.36 | 67.24 | 283.27 | 0.9172 | 327.0 | 279.9 | |
| 0.00 | 0.27 | 0.00 | 0.33 | 14.79 | 51.28 | 67.16 | 283.14 | 0.9167 | 296.0 | 285.7 | |
| 0.00 | 2.16 | 0.00 | 2.66 | 15.22 | 51.39 | 67.27 | 283.61 | 0.9174 | 277.0 | 246.7 | |
| 0.00 | 0.99 | 0.00 | 1.20 | 14.86 | 50.92 | 66.80 | 283.21 | 0.9143 | 428.0 | 398.5 | |
| 0.00 | 1.08 | 0.00 | 1.24 | 15.18 | 49.40 | 65.28 | 283.55 | 0.9035 | 393.0 | 292.3 | |
| 0.00 | 0.90 | 0.00 | 1.03 | 15.28 | 49.38 | 65.26 | 283.65 | 0.9034 | 394.0 | 305.6 | |
| 0.00 | 1.08 | 0.00 | 1.23 | 15.48 | 49.27 | 65.15 | 283.87 | 0.9026 | 295.0 | 268.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
