SDO HMI 2014-08-22 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.58 | 0.00 | 3.81 | 7.10 | 27.64 | 43.52 | 273.27 | 0.6839 | -208.2 | -194.4 | |
|
previous
or next observation for the same group /

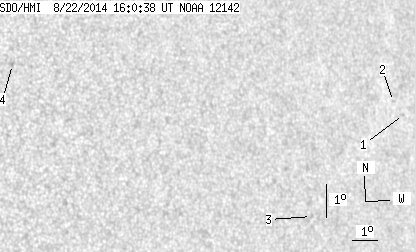

back to the solar disc SDO HMI 2014-08-22 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.74 | 7.36 | 32.78 | 48.66 | 273.69 | 0.7485 | -555.0 | -421.7 | |
| 0.00 | 1.17 | 0.00 | 0.86 | 7.79 | 32.38 | 48.27 | 274.25 | 0.7437 | -426.0 | -316.8 | |
| 0.00 | 1.98 | 0.00 | 1.36 | 4.64 | 28.38 | 44.26 | 269.51 | 0.6980 | -556.0 | -427.8 | |
| 0.00 | 1.44 | 0.00 | 0.85 | 10.12 | 17.19 | 33.07 | 277.92 | 0.5444 | 704.0 | 502.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
