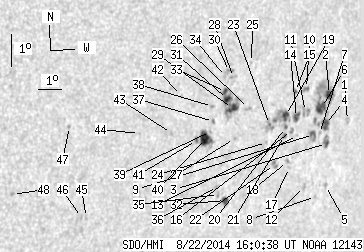

SDO HMI 2014-08-22 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.81 | 225.69 | 47.50 | 170.71 | -4.96 | 31.84 | 47.72 | 257.21 | 0.7575 | 79.2 | 222.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-22 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.06 | 0.00 | 2.48 | -5.20 | 35.24 | 51.13 | 257.95 | 0.7950 | 651.0 | 366.3 | |
| 5.30 | 60.38 | 4.20 | 47.67 | -4.31 | 34.29 | 50.17 | 258.79 | 0.7829 | 626.8 | 444.7 | |
| 2.43 | 6.20 | 1.94 | 4.95 | -5.82 | 34.30 | 50.18 | 256.91 | 0.7868 | 448.1 | 378.6 | |
| 5.39 | -2.00 | 4.28 | -2.00 | -5.22 | 34.19 | 50.07 | 257.62 | 0.7840 | 444.4 | 999999 | |
| 0.00 | 2.16 | 0.00 | 1.74 | -7.14 | 34.43 | 50.32 | 255.33 | 0.7916 | 490.0 | 384.2 | |
| 8.36 | -2.00 | 6.58 | -2.00 | -4.67 | 33.94 | 49.82 | 258.23 | 0.7801 | 766.8 | 999999 | |
| 0.00 | 1.44 | 0.00 | 1.14 | -5.48 | 33.93 | 49.81 | 257.23 | 0.7820 | 552.0 | 493.9 | |
| 0.00 | 0.81 | 0.00 | 0.65 | -7.44 | 34.00 | 49.88 | 254.82 | 0.7879 | 538.0 | 493.9 | |
| 2.79 | 7.01 | 2.19 | 5.51 | -5.48 | 33.65 | 49.53 | 257.14 | 0.7790 | 803.6 | 652.1 | |
| 0.99 | 3.32 | 0.76 | 2.57 | -4.02 | 33.18 | 49.06 | 258.85 | 0.7703 | 753.5 | 656.6 | |
| 0.00 | 6.56 | 0.00 | 5.09 | -4.73 | 33.19 | 49.07 | 257.95 | 0.7722 | 715.0 | 630.7 | |
| 0.00 | 1.98 | 0.00 | 1.56 | -7.07 | 33.42 | 49.31 | 255.08 | 0.7809 | 553.0 | 464.9 | |
| 0.00 | 0.72 | 0.00 | 0.56 | -5.44 | 32.89 | 48.77 | 256.96 | 0.7708 | 570.0 | 412.8 | |
| 3.41 | 5.84 | 2.63 | 4.50 | -4.87 | 32.79 | 48.67 | 257.65 | 0.7682 | 775.3 | 533.6 | |
| 0.54 | 1.80 | 0.41 | 1.38 | -4.06 | 32.67 | 48.55 | 258.65 | 0.7648 | 671.3 | 594.3 | |
| 0.00 | 2.52 | 0.00 | 1.94 | -5.26 | 32.59 | 48.48 | 257.10 | 0.7671 | 602.0 | 536.0 | |
| 0.00 | 1.17 | 0.00 | 0.90 | -6.41 | 32.63 | 48.52 | 255.66 | 0.7707 | 608.0 | 514.5 | |
| 0.00 | 1.71 | 0.00 | 1.32 | -6.21 | 32.52 | 48.40 | 255.87 | 0.7689 | 723.0 | 675.3 | |
| 4.31 | 19.77 | 3.29 | 15.03 | -4.76 | 32.27 | 48.15 | 257.63 | 0.7623 | 922.4 | 657.8 | |
| 0.63 | -19.00 | 0.48 | -19.00 | -5.14 | 32.31 | 48.19 | 257.16 | 0.7636 | 813.0 | 999999 | |
| 0.81 | 2.07 | 0.62 | 1.58 | -5.38 | 32.29 | 48.17 | 256.84 | 0.7641 | 805.2 | 698.0 | |
| 0.00 | 4.22 | 0.00 | 3.22 | -6.25 | 31.93 | 47.81 | 255.62 | 0.7626 | 792.0 | 699.9 | |
| 0.45 | 7.55 | 0.34 | 5.68 | -4.98 | 31.56 | 47.44 | 257.14 | 0.7550 | 923.0 | 682.1 | |
| 0.00 | 0.99 | 0.00 | 0.74 | -5.53 | 31.48 | 47.36 | 256.40 | 0.7556 | 676.0 | 604.5 | |
| 0.00 | 0.81 | 0.00 | 0.59 | -2.98 | 30.61 | 46.49 | 259.46 | 0.7390 | -525.0 | -374.9 | |
| 0.00 | 2.52 | 0.00 | 1.85 | -4.39 | 30.57 | 46.45 | 257.59 | 0.7423 | -394.0 | -292.9 | |
| 0.00 | 0.99 | 0.00 | 0.72 | -5.27 | 30.03 | 45.91 | 256.26 | 0.7386 | 677.0 | 664.7 | |
| 0.00 | 2.61 | 0.00 | 1.88 | -3.37 | 29.84 | 45.72 | 258.71 | 0.7311 | -455.0 | -454.7 | |
| 5.75 | 31.99 | 4.18 | 23.19 | -4.33 | 29.86 | 45.74 | 257.45 | 0.7339 | -528.0 | -361.9 | |
| 0.00 | 3.32 | 0.00 | 2.39 | -3.17 | 29.65 | 45.53 | 258.93 | 0.7284 | -622.0 | -607.6 | |
| 3.86 | -29.00 | 2.79 | -29.00 | -4.03 | 29.62 | 45.50 | 257.77 | 0.7303 | -836.3 | 999999 | |
| 3.41 | 5.57 | 2.52 | 4.10 | -7.18 | 29.85 | 45.73 | 253.70 | 0.7425 | -671.3 | -397.5 | |
| 2.07 | -29.00 | 1.49 | -29.00 | -3.77 | 29.52 | 45.40 | 258.08 | 0.7284 | -800.4 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.77 | -3.31 | 29.49 | 45.37 | 258.69 | 0.7268 | -787.0 | -648.3 | |
| 0.00 | 2.34 | 0.00 | 1.71 | -6.96 | 29.51 | 45.39 | 253.85 | 0.7380 | -738.0 | -473.2 | |
| 0.00 | 1.35 | 0.00 | 0.98 | -6.71 | 29.44 | 45.32 | 254.16 | 0.7363 | -759.0 | -584.0 | |
| 0.00 | 1.44 | 0.00 | 1.03 | -4.66 | 29.06 | 44.94 | 256.74 | 0.7256 | -445.0 | -390.8 | |
| 0.00 | 1.17 | 0.00 | 0.84 | -4.19 | 28.98 | 44.86 | 257.35 | 0.7233 | -829.0 | -711.6 | |
| 0.00 | 0.90 | 0.00 | 0.64 | -4.96 | 28.96 | 44.84 | 256.30 | 0.7253 | -519.0 | -400.5 | |
| 11.41 | 19.14 | 8.16 | 13.69 | -5.16 | 28.76 | 44.64 | 255.97 | 0.7236 | -715.3 | -447.7 | |
| 0.90 | -40.00 | 0.64 | -40.00 | -5.19 | 28.38 | 44.26 | 255.79 | 0.7192 | -787.0 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -3.73 | 27.63 | 43.51 | 257.52 | 0.7060 | -472.0 | -509.3 | |
| 0.00 | 1.71 | 0.00 | 1.19 | -4.88 | 27.29 | 43.17 | 255.82 | 0.7055 | -89.0 | -99.1 | |
| 0.00 | 0.99 | 0.00 | 0.67 | -4.77 | 25.96 | 41.84 | 255.48 | 0.6890 | -537.0 | -453.5 | |
| 0.00 | 1.71 | 0.00 | 1.14 | -7.21 | 24.04 | 39.92 | 251.21 | 0.6747 | -462.0 | -363.6 | |
| 0.00 | 1.62 | 0.00 | 1.08 | -7.20 | 23.83 | 39.71 | 251.13 | 0.6722 | -597.0 | -520.5 | |
| 0.00 | 1.17 | 0.00 | 0.76 | -4.32 | 23.12 | 39.00 | 254.98 | 0.6521 | -734.0 | -629.0 | |
| 0.00 | 1.71 | 0.00 | 1.09 | -6.27 | 21.05 | 36.93 | 251.11 | 0.6336 | -785.0 | -679.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
