SDO HMI 2014-08-22 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.44 | 399.19 | 31.45 | 197.95 | 9.11 | 343.70 | -0.42 | 7.61 | 0.0399 | -950.5 | -434.6 | |
|
previous
or next observation for the same group /

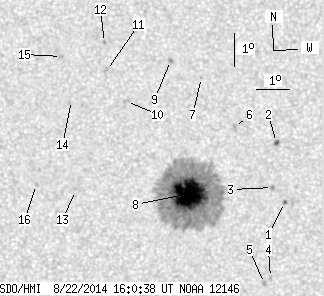

back to the solar disc SDO HMI 2014-08-22 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.54 | 1.89 | 0.27 | 0.94 | 8.73 | 346.63 | 2.51 | 305.94 | 0.0537 | 819.8 | 649.7 | |
| 1.17 | 2.34 | 0.58 | 1.16 | 10.55 | 346.40 | 2.28 | 328.24 | 0.0745 | 1111.2 | 869.7 | |
| 0.00 | 2.07 | 0.00 | 1.03 | 9.19 | 346.26 | 2.14 | 316.79 | 0.0542 | 1043.0 | 892.3 | |
| 0.00 | 1.62 | 0.00 | 0.80 | 6.46 | 346.18 | 2.06 | 256.94 | 0.0369 | -878.0 | -722.6 | |
| 0.00 | 1.89 | 0.00 | 0.94 | 6.28 | 346.00 | 1.88 | 250.62 | 0.0347 | -954.0 | -739.7 | |
| 0.00 | 2.52 | 0.00 | 1.25 | 11.01 | 345.10 | 0.98 | 346.65 | 0.0734 | 871.0 | 738.0 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 12.54 | 344.09 | -0.03 | 0.33 | 0.0980 | -913.0 | -657.2 | |
| 61.73 | 373.81 | 30.60 | 185.33 | 9.01 | 343.71 | -0.41 | 10.93 | 0.0370 | -1465.5 | -475.0 | |
| 0.00 | 1.89 | 0.00 | 0.94 | 13.06 | 343.12 | -1.00 | 9.04 | 0.1084 | -990.0 | -848.0 | |
| 0.00 | 2.61 | 0.00 | 1.30 | 11.80 | 341.76 | -2.36 | 25.37 | 0.0944 | -816.0 | -676.0 | |
| 0.00 | 2.43 | 0.00 | 1.21 | 12.74 | 341.13 | -2.99 | 26.64 | 0.1138 | 887.0 | 694.3 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 13.60 | 341.06 | -3.06 | 24.06 | 0.1277 | -902.0 | -682.8 | |
| 0.00 | 0.45 | 0.00 | 0.22 | 9.09 | 340.21 | -3.91 | 60.65 | 0.0775 | 447.0 | 585.4 | |
| 0.00 | 0.45 | 0.00 | 0.22 | 11.83 | 340.06 | -4.06 | 39.06 | 0.1105 | 255.0 | 347.0 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 13.16 | 339.73 | -4.39 | 34.46 | 0.1325 | 1045.0 | 789.3 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 9.27 | 339.01 | -5.11 | 64.98 | 0.0975 | 865.0 | 681.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
