SDO HMI 2014-08-22 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.55 | 212.66 | 47.14 | 162.49 | -4.99 | 31.78 | 48.21 | 257.32 | 0.7629 | 81.7 | 212.5 | |
|
previous
or next observation for the same group /

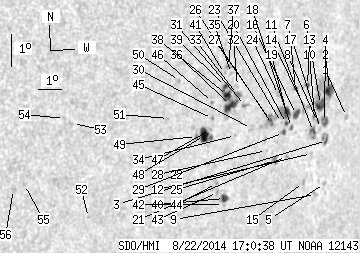

back to the solar disc SDO HMI 2014-08-22 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.16 | 0.00 | 1.78 | -5.20 | 35.27 | 51.71 | 258.11 | 0.8010 | 522.0 | 342.8 | |
| 6.56 | 40.43 | 5.27 | 32.29 | -4.30 | 34.35 | 50.79 | 258.96 | 0.7894 | 557.3 | 459.2 | |
| 1.44 | 6.92 | 1.16 | 5.59 | -5.85 | 34.37 | 50.81 | 257.06 | 0.7933 | 306.5 | 368.5 | |
| 3.50 | 6.83 | 2.82 | 5.50 | -5.25 | 34.21 | 50.64 | 257.75 | 0.7901 | 405.2 | 316.7 | |
| 0.00 | 1.62 | 0.00 | 1.32 | -7.20 | 34.47 | 50.90 | 255.44 | 0.7977 | 413.0 | 371.1 | |
| 7.55 | -2.00 | 6.02 | -2.00 | -4.70 | 33.96 | 50.39 | 258.36 | 0.7862 | 766.4 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.79 | -5.45 | 34.04 | 50.47 | 257.46 | 0.7888 | 581.0 | 478.3 | |
| 0.00 | 1.44 | 0.00 | 1.15 | -5.21 | 33.86 | 50.30 | 257.70 | 0.7865 | 722.0 | 695.4 | |
| 0.00 | 2.25 | 0.00 | 1.82 | -7.50 | 34.08 | 50.51 | 254.95 | 0.7946 | 405.0 | 377.4 | |
| 0.63 | 2.16 | 0.50 | 1.71 | -5.04 | 33.70 | 50.14 | 257.86 | 0.7843 | 758.7 | 655.9 | |
| 2.34 | 7.55 | 1.86 | 6.01 | -5.51 | 33.71 | 50.14 | 257.28 | 0.7855 | 822.0 | 619.8 | |
| 0.00 | 1.26 | 0.00 | 1.01 | -6.19 | 33.69 | 50.13 | 256.44 | 0.7871 | 218.0 | 217.4 | |
| 1.17 | 2.70 | 0.92 | 2.11 | -4.05 | 33.28 | 49.71 | 258.99 | 0.7774 | 757.6 | 669.5 | |
| 0.00 | 4.58 | 0.00 | 3.60 | -4.75 | 33.25 | 49.68 | 258.09 | 0.7788 | 733.0 | 650.1 | |
| 0.00 | 1.98 | 0.00 | 1.58 | -7.06 | 33.43 | 49.87 | 255.27 | 0.7868 | 549.0 | 433.3 | |
| 3.41 | 5.21 | 2.66 | 4.07 | -4.90 | 32.84 | 49.27 | 257.79 | 0.7748 | 718.8 | 520.2 | |
| 0.63 | 1.80 | 0.49 | 1.39 | -4.09 | 32.72 | 49.15 | 258.78 | 0.7715 | 696.9 | 671.2 | |
| 0.81 | 2.07 | 0.63 | 1.61 | -5.28 | 32.64 | 49.08 | 257.25 | 0.7737 | 617.0 | 499.9 | |
| 4.85 | 15.18 | 3.75 | 11.71 | -4.79 | 32.36 | 48.79 | 257.78 | 0.7694 | 894.9 | 670.1 | |
| 0.90 | -19.00 | 0.70 | -19.00 | -5.14 | 32.39 | 48.83 | 257.36 | 0.7706 | 782.7 | 999999 | |
| 0.00 | 1.53 | 0.00 | 1.19 | -6.17 | 32.51 | 48.94 | 256.09 | 0.7746 | 716.0 | 665.8 | |
| 1.17 | 2.07 | 0.90 | 1.60 | -5.40 | 32.28 | 48.72 | 256.99 | 0.7701 | 786.3 | 676.6 | |
| 0.00 | 0.90 | 0.00 | 0.69 | -5.08 | 32.16 | 48.59 | 257.35 | 0.7679 | 581.0 | 492.6 | |
| 0.00 | 3.59 | 0.00 | 2.74 | -4.20 | 31.94 | 48.37 | 258.42 | 0.7632 | 300.0 | 318.0 | |
| 0.00 | 4.40 | 0.00 | 3.40 | -6.25 | 32.01 | 48.44 | 255.84 | 0.7694 | 786.0 | 696.5 | |
| 0.27 | 10.33 | 0.21 | 7.88 | -5.11 | 31.74 | 48.18 | 257.20 | 0.7635 | 790.7 | 724.8 | |
| 1.08 | -26.00 | 0.82 | -26.00 | -4.97 | 31.64 | 48.07 | 257.34 | 0.7620 | 945.2 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -5.89 | 31.55 | 47.99 | 256.13 | 0.7635 | 524.0 | 518.0 | |
| 0.00 | 1.62 | 0.00 | 1.23 | -5.55 | 31.47 | 47.90 | 256.55 | 0.7616 | 635.0 | 535.0 | |
| 0.00 | 2.25 | 0.00 | 1.68 | -5.14 | 30.79 | 47.23 | 256.85 | 0.7531 | 283.0 | 259.0 | |
| 0.00 | 2.70 | 0.00 | 2.00 | -4.40 | 30.46 | 46.89 | 257.71 | 0.7473 | -455.0 | -275.9 | |
| 0.00 | 0.99 | 0.00 | 0.73 | -3.78 | 30.06 | 46.49 | 258.40 | 0.7410 | -227.0 | -225.4 | |
| 0.00 | 4.40 | 0.00 | 3.24 | -4.03 | 30.07 | 46.51 | 258.08 | 0.7419 | 183.0 | 120.2 | |
| 0.00 | 0.90 | 0.00 | 0.67 | -5.30 | 30.09 | 46.53 | 256.43 | 0.7456 | 721.0 | 637.6 | |
| 0.00 | 1.26 | 0.00 | 0.92 | -3.35 | 29.76 | 46.20 | 258.88 | 0.7366 | -676.0 | -536.1 | |
| 8.09 | 27.13 | 5.93 | 19.84 | -4.34 | 29.79 | 46.22 | 257.58 | 0.7395 | -523.7 | -472.3 | |
| 0.00 | 2.34 | 0.00 | 1.70 | -3.12 | 29.62 | 46.05 | 259.14 | 0.7343 | -649.0 | -586.5 | |
| 3.86 | -36.00 | 2.82 | -36.00 | -4.02 | 29.63 | 46.06 | 257.96 | 0.7368 | -810.2 | 999999 | |
| 1.17 | -36.00 | 0.85 | -36.00 | -3.73 | 29.52 | 45.96 | 258.31 | 0.7348 | -787.7 | 999999 | |
| 3.23 | 5.03 | 2.41 | 3.74 | -7.23 | 29.83 | 46.26 | 253.83 | 0.7485 | -667.0 | -436.0 | |
| 0.00 | 0.90 | 0.00 | 0.65 | -3.32 | 29.45 | 45.89 | 258.83 | 0.7329 | -435.0 | -528.2 | |
| 0.00 | 1.53 | 0.00 | 1.14 | -7.41 | 29.81 | 46.24 | 253.59 | 0.7489 | -332.0 | -281.1 | |
| 0.00 | 2.07 | 0.00 | 1.53 | -7.01 | 29.49 | 45.92 | 253.99 | 0.7441 | -747.0 | -479.5 | |
| 0.00 | 1.44 | 0.00 | 1.06 | -6.72 | 29.41 | 45.84 | 254.33 | 0.7423 | -658.0 | -567.5 | |
| 0.00 | 1.17 | 0.00 | 0.85 | -4.67 | 29.02 | 45.46 | 256.89 | 0.7317 | -465.0 | -485.8 | |
| 0.00 | 1.26 | 0.00 | 0.91 | -4.18 | 28.99 | 45.42 | 257.54 | 0.7298 | -839.0 | -643.8 | |
| 0.00 | 1.17 | 0.00 | 0.85 | -5.01 | 28.97 | 45.40 | 256.43 | 0.7320 | -436.0 | -351.8 | |
| 8.89 | 13.93 | 6.42 | 10.06 | -5.17 | 28.72 | 45.15 | 256.13 | 0.7296 | -786.8 | -434.2 | |
| 0.00 | 1.89 | 0.00 | 1.35 | -5.17 | 28.37 | 44.81 | 256.00 | 0.7256 | -818.0 | -727.7 | |
| 0.00 | 0.90 | 0.00 | 0.63 | -3.37 | 27.52 | 43.95 | 258.16 | 0.7102 | -613.0 | -571.8 | |
| 0.00 | 0.81 | 0.00 | 0.57 | -4.51 | 27.13 | 43.56 | 256.47 | 0.7089 | -524.0 | -467.1 | |
| 0.00 | 0.99 | 0.00 | 0.67 | -7.33 | 24.09 | 40.53 | 251.33 | 0.6826 | -537.0 | -445.8 | |
| 0.00 | 0.54 | 0.00 | 0.35 | -4.34 | 23.20 | 39.63 | 255.21 | 0.6601 | -712.0 | -630.7 | |
| 0.00 | 1.08 | 0.00 | 0.71 | -4.16 | 22.87 | 39.30 | 255.34 | 0.6553 | -703.0 | -516.8 | |
| 0.00 | 1.80 | 0.00 | 1.16 | -6.09 | 21.44 | 37.88 | 251.85 | 0.6448 | -623.0 | -575.0 | |
| 0.00 | 2.34 | 0.00 | 1.50 | -6.21 | 21.03 | 37.46 | 251.46 | 0.6401 | -765.0 | -564.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
