SDO HMI 2014-08-22 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.35 | 415.20 | 34.88 | 205.86 | 9.08 | 343.60 | 0.59 | 335.57 | 0.0404 | -715.5 | -367.5 | |
|
previous
or next observation for the same group /

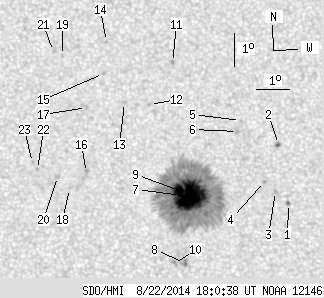

back to the solar disc SDO HMI 2014-08-22 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 0.89 | 8.73 | 346.75 | 3.74 | 295.95 | 0.0720 | 1046.0 | 825.5 | |
| 0.81 | 1.80 | 0.40 | 0.89 | 10.52 | 346.46 | 3.45 | 316.60 | 0.0865 | 1080.8 | 905.8 | |
| 0.00 | 1.62 | 0.00 | 0.80 | 9.10 | 346.35 | 3.34 | 303.23 | 0.0691 | 1112.0 | 836.3 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 9.40 | 346.02 | 3.01 | 309.73 | 0.0676 | 910.0 | 797.2 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 11.26 | 345.30 | 2.28 | 332.56 | 0.0852 | 657.0 | 587.4 | |
| 0.00 | 1.80 | 0.00 | 0.89 | 10.93 | 345.20 | 2.19 | 331.64 | 0.0793 | 941.0 | 726.2 | |
| 58.31 | 380.38 | 28.91 | 188.59 | 8.96 | 343.74 | 0.73 | 340.27 | 0.0375 | -1510.7 | -457.9 | |
| 0.00 | 4.67 | 0.00 | 2.31 | 6.96 | 343.52 | 0.51 | 271.36 | 0.0089 | 540.0 | 581.1 | |
| 11.23 | -7.00 | 5.57 | -7.00 | 9.14 | 343.38 | 0.36 | 350.73 | 0.0390 | -1447.6 | 999999 | |
| 0.00 | 2.61 | 0.00 | 1.29 | 6.93 | 343.25 | 0.24 | 265.62 | 0.0041 | 763.0 | 475.9 | |
| 0.00 | 1.53 | 0.00 | 0.76 | 13.03 | 343.20 | 0.19 | 358.29 | 0.1065 | -1095.0 | -906.6 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 11.75 | 342.48 | -0.53 | 6.15 | 0.0847 | -909.0 | -687.7 | |
| 0.00 | 1.80 | 0.00 | 0.89 | 11.81 | 341.71 | -1.30 | 14.69 | 0.0881 | -835.0 | -711.3 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 13.67 | 341.14 | -1.87 | 15.16 | 0.1219 | -963.0 | -737.5 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 12.70 | 341.05 | -1.96 | 18.40 | 0.1061 | 953.0 | 753.0 | |
| 0.00 | 2.52 | 0.00 | 1.25 | 9.69 | 340.55 | -2.46 | 41.53 | 0.0642 | 888.0 | 748.6 | |
| 0.00 | 1.71 | 0.00 | 0.85 | 11.66 | 340.53 | -2.48 | 27.25 | 0.0929 | 831.0 | 742.8 | |
| 0.00 | 0.81 | 0.00 | 0.40 | 9.20 | 340.03 | -2.98 | 52.51 | 0.0651 | 835.0 | 556.4 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 13.24 | 339.77 | -3.24 | 26.62 | 0.1233 | 837.0 | 680.2 | |
| 0.00 | 2.07 | 0.00 | 1.03 | 9.56 | 339.66 | -3.36 | 51.59 | 0.0740 | 910.0 | 789.4 | |
| 0.00 | 0.72 | 0.00 | 0.36 | 13.36 | 339.49 | -3.52 | 28.11 | 0.1274 | 911.0 | 709.6 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 9.77 | 339.04 | -3.97 | 54.08 | 0.0847 | 926.0 | 763.1 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 9.98 | 338.88 | -4.13 | 53.14 | 0.0891 | 988.0 | 769.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
