SDO HMI 2014-08-22 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.47 | 54.66 | 7.57 | 28.96 | -10.05 | 332.47 | -10.54 | 149.41 | 0.3504 | 316.6 | 300.4 | |
|
previous
or next observation for the same group /

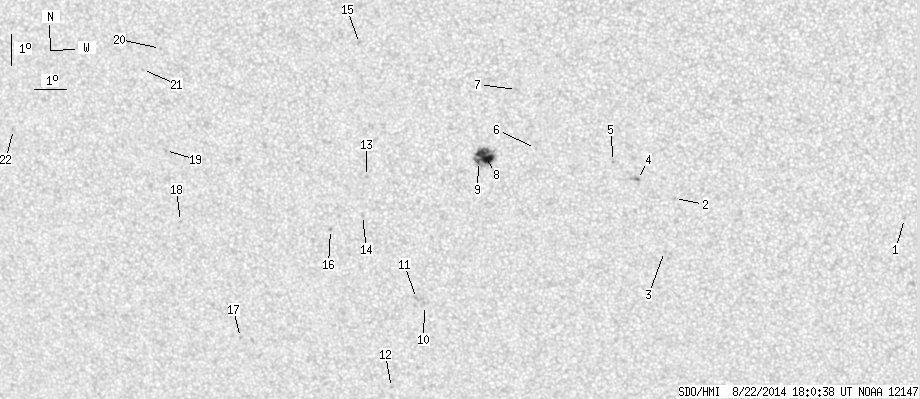

back to the solar disc SDO HMI 2014-08-22 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.61 | -11.40 | 346.57 | 3.56 | 190.94 | 0.3218 | 882.0 | 728.5 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -10.75 | 339.46 | -3.55 | 168.68 | 0.3112 | 768.0 | 569.0 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -12.45 | 339.13 | -3.88 | 168.73 | 0.3399 | 755.0 | 603.8 | |
| 0.45 | 3.41 | 0.23 | 1.78 | -10.16 | 338.33 | -4.68 | 164.70 | 0.3059 | 984.2 | 739.5 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -9.60 | 337.60 | -5.42 | 161.87 | 0.3004 | 657.0 | 574.6 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -9.22 | 335.19 | -7.82 | 154.16 | 0.3095 | 686.0 | 575.5 | |
| 0.00 | 1.89 | 0.00 | 0.98 | -7.37 | 334.65 | -8.37 | 149.61 | 0.2865 | 795.0 | 456.0 | |
| 12.76 | 27.94 | 6.68 | 14.63 | -9.50 | 333.63 | -9.38 | 150.27 | 0.3256 | 1175.5 | 779.0 | |
| 1.26 | -8.00 | 0.66 | -8.00 | -9.66 | 333.41 | -9.60 | 149.94 | 0.3298 | 778.2 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -14.32 | 331.51 | -11.50 | 151.81 | 0.4106 | -557.0 | -511.4 | |
| 0.00 | 1.71 | 0.00 | 0.93 | -14.10 | 331.27 | -11.74 | 151.04 | 0.4093 | -834.0 | -729.2 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -17.04 | 330.28 | -12.73 | 152.44 | 0.4573 | -887.0 | -669.5 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -10.22 | 329.87 | -13.14 | 142.54 | 0.3695 | 778.0 | 607.6 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -11.46 | 329.69 | -13.33 | 144.15 | 0.3874 | 804.0 | 549.9 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -6.05 | 329.80 | -13.22 | 134.28 | 0.3189 | 693.0 | 665.4 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -11.94 | 328.64 | -14.37 | 142.81 | 0.4035 | -961.0 | -736.3 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -15.55 | 325.46 | -17.55 | 142.39 | 0.4781 | -671.0 | -527.6 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -11.86 | 323.79 | -19.22 | 134.42 | 0.4530 | -607.0 | -511.0 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -9.61 | 323.45 | -19.56 | 130.12 | 0.4335 | -953.0 | -763.2 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -6.42 | 323.46 | -19.56 | 123.98 | 0.4028 | -724.0 | -538.7 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -7.10 | 322.84 | -20.17 | 124.51 | 0.4170 | -722.0 | -639.5 | |
| 0.00 | 2.16 | 0.00 | 1.23 | -9.18 | 318.44 | -24.57 | 123.04 | 0.4917 | -751.0 | -437.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
