SDO HMI 2014-08-22 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.13 | 123.89 | 13.70 | 87.69 | 16.62 | 27.91 | 45.45 | 286.59 | 0.7143 | -552.5 | -206.2 | |
|
previous
or next observation for the same group /

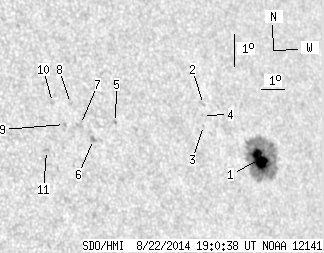

back to the solar disc SDO HMI 2014-08-22 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.13 | 107.80 | 13.70 | 77.30 | 16.43 | 28.75 | 46.29 | 286.14 | 0.7240 | -1072.9 | -302.9 | |
| 0.00 | 0.63 | 0.00 | 0.44 | 18.31 | 26.81 | 44.35 | 289.09 | 0.7046 | -632.0 | -506.7 | |
| 0.00 | 0.27 | 0.00 | 0.19 | 17.67 | 26.60 | 44.14 | 288.23 | 0.7010 | -631.0 | -534.7 | |
| 0.00 | 0.27 | 0.00 | 0.19 | 17.98 | 26.66 | 44.20 | 288.66 | 0.7022 | -604.0 | -571.3 | |
| 0.00 | 0.90 | 0.00 | 0.59 | 18.06 | 22.91 | 40.46 | 289.64 | 0.6573 | -462.0 | -370.8 | |
| 0.00 | 3.23 | 0.00 | 2.09 | 17.61 | 21.88 | 39.42 | 289.24 | 0.6433 | 670.0 | 551.5 | |
| 0.00 | 4.58 | 0.00 | 2.94 | 18.11 | 21.47 | 39.01 | 290.12 | 0.6394 | 489.0 | 422.1 | |
| 0.00 | 1.35 | 0.00 | 0.87 | 18.78 | 21.24 | 38.78 | 291.22 | 0.6384 | 599.0 | 489.5 | |
| 0.00 | 1.44 | 0.00 | 0.92 | 18.16 | 20.83 | 38.37 | 290.38 | 0.6315 | 751.0 | 687.5 | |
| 0.00 | 1.35 | 0.00 | 0.86 | 18.87 | 20.53 | 38.07 | 291.58 | 0.6297 | 748.0 | 504.1 | |
| 0.00 | 2.07 | 0.00 | 1.30 | 17.41 | 19.91 | 37.45 | 289.49 | 0.6178 | 676.0 | 596.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
