SDO HMI 2014-08-22 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.51 | 122.73 | 13.38 | 87.54 | 16.56 | 27.86 | 45.95 | 286.43 | 0.7199 | -372.7 | -209.7 | |
|
previous
or next observation for the same group /

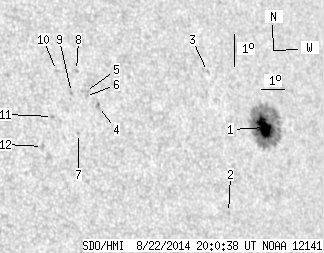

back to the solar disc SDO HMI 2014-08-22 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.51 | 104.57 | 13.38 | 75.73 | 16.41 | 28.79 | 46.88 | 286.02 | 0.7308 | -1042.9 | -318.4 | |
| 0.00 | 1.26 | 0.00 | 0.87 | 13.98 | 26.48 | 44.57 | 282.91 | 0.7010 | -112.0 | -141.3 | |
| 0.00 | 1.53 | 0.00 | 1.07 | 18.33 | 26.80 | 44.90 | 289.00 | 0.7109 | -590.0 | -508.2 | |
| 0.00 | 3.14 | 0.00 | 2.04 | 17.63 | 21.87 | 39.96 | 289.12 | 0.6501 | 706.0 | 549.1 | |
| 0.00 | 3.23 | 0.00 | 2.09 | 18.13 | 21.46 | 39.56 | 289.99 | 0.6463 | 531.0 | 436.4 | |
| 0.00 | 0.99 | 0.00 | 0.64 | 17.98 | 21.42 | 39.52 | 289.77 | 0.6454 | 188.0 | 232.5 | |
| 0.00 | 1.08 | 0.00 | 0.69 | 16.87 | 20.85 | 38.94 | 288.22 | 0.6355 | 627.0 | 445.3 | |
| 0.00 | 1.17 | 0.00 | 0.76 | 18.80 | 21.28 | 39.37 | 291.07 | 0.6458 | 597.0 | 536.0 | |
| 0.00 | 0.90 | 0.00 | 0.58 | 18.14 | 20.89 | 38.98 | 290.17 | 0.6391 | 816.0 | 738.5 | |
| 0.00 | 1.44 | 0.00 | 0.92 | 18.86 | 20.47 | 38.56 | 291.41 | 0.6359 | 756.0 | 581.9 | |
| 0.00 | 1.26 | 0.00 | 0.80 | 17.47 | 19.94 | 38.03 | 289.40 | 0.6253 | 771.0 | 653.4 | |
| 0.00 | 2.16 | 0.00 | 1.35 | 16.58 | 19.32 | 37.42 | 288.16 | 0.6151 | 577.0 | 439.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
