SDO HMI 2014-08-22 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.59 | 126.80 | 14.45 | 92.32 | 16.62 | 27.96 | 47.16 | 286.30 | 0.7339 | -342.8 | -207.7 | |
|
previous
or next observation for the same group /

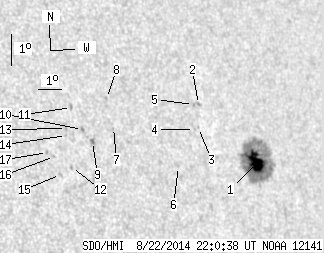

back to the solar disc SDO HMI 2014-08-22 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.59 | 107.90 | 14.45 | 79.73 | 16.42 | 28.81 | 48.01 | 285.87 | 0.7436 | -955.7 | -294.9 | |
| 0.00 | 0.72 | 0.00 | 0.51 | 18.41 | 26.78 | 45.98 | 288.89 | 0.7234 | -580.0 | -529.6 | |
| 0.00 | 0.81 | 0.00 | 0.57 | 17.71 | 26.54 | 45.74 | 287.97 | 0.7195 | -598.0 | -538.4 | |
| 0.00 | 0.90 | 0.00 | 0.64 | 17.66 | 26.34 | 45.54 | 287.94 | 0.7172 | -419.0 | -384.7 | |
| 0.00 | 1.35 | 0.00 | 0.96 | 18.42 | 26.55 | 45.75 | 288.96 | 0.7209 | -646.0 | -562.3 | |
| 0.00 | 0.72 | 0.00 | 0.50 | 16.60 | 25.29 | 44.49 | 286.63 | 0.7032 | -645.0 | -501.8 | |
| 0.00 | 0.54 | 0.00 | 0.36 | 18.01 | 22.86 | 42.06 | 289.15 | 0.6767 | -366.0 | -335.5 | |
| 0.00 | 1.35 | 0.00 | 0.91 | 18.92 | 22.84 | 42.04 | 290.48 | 0.6785 | 591.0 | 429.8 | |
| 0.00 | 2.16 | 0.00 | 1.42 | 17.65 | 21.86 | 41.06 | 288.86 | 0.6638 | 693.0 | 579.5 | |
| 0.00 | 2.07 | 0.00 | 1.36 | 18.05 | 21.55 | 40.75 | 289.53 | 0.6608 | 573.0 | 475.5 | |
| 0.00 | 2.16 | 0.00 | 1.42 | 18.76 | 21.29 | 40.49 | 290.66 | 0.6594 | 589.0 | 481.1 | |
| 0.00 | 0.99 | 0.00 | 0.64 | 16.93 | 20.79 | 39.99 | 288.03 | 0.6488 | 546.0 | 492.1 | |
| 0.00 | 0.99 | 0.00 | 0.64 | 18.13 | 20.90 | 40.10 | 289.83 | 0.6530 | 809.0 | 697.3 | |
| 0.00 | 0.54 | 0.00 | 0.35 | 17.92 | 20.84 | 40.04 | 289.52 | 0.6518 | 682.0 | 555.2 | |
| 0.00 | 1.53 | 0.00 | 0.98 | 16.75 | 20.29 | 39.49 | 287.88 | 0.6421 | 638.0 | 554.1 | |
| 0.00 | 0.90 | 0.00 | 0.58 | 17.31 | 20.18 | 39.38 | 288.77 | 0.6421 | 723.0 | 560.8 | |
| 0.00 | 1.17 | 0.00 | 0.75 | 17.46 | 19.93 | 39.13 | 289.06 | 0.6392 | 781.0 | 586.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
