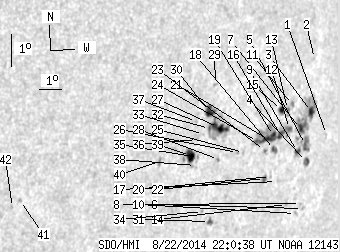

SDO HMI 2014-08-22 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.19 | 211.95 | 56.92 | 172.58 | -4.94 | 32.04 | 51.24 | 258.26 | 0.7950 | 147.6 | 254.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-22 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.63 | -5.16 | 35.37 | 54.57 | 258.90 | 0.8291 | 413.0 | 284.2 | |
| 0.00 | 0.63 | 0.00 | 0.54 | -2.73 | 34.51 | 53.71 | 261.60 | 0.8160 | 358.0 | 334.0 | |
| 5.30 | 59.03 | 4.55 | 50.45 | -4.36 | 34.49 | 53.69 | 259.63 | 0.8190 | 488.1 | 440.1 | |
| 2.79 | 4.58 | 2.41 | 3.96 | -5.90 | 34.42 | 53.62 | 257.77 | 0.8216 | 381.3 | 221.4 | |
| 4.49 | -3.00 | 3.86 | -3.00 | -5.36 | 34.30 | 53.50 | 258.38 | 0.8192 | 383.3 | 999999 | |
| 0.00 | 1.26 | 0.00 | 1.10 | -7.36 | 34.44 | 53.64 | 256.05 | 0.8251 | 405.0 | 354.5 | |
| 3.59 | -3.00 | 3.06 | -3.00 | -4.83 | 33.98 | 53.18 | 258.93 | 0.8149 | 744.7 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.94 | -7.19 | 34.31 | 53.51 | 256.21 | 0.8235 | 549.0 | 453.5 | |
| 2.07 | -3.00 | 1.76 | -3.00 | -5.54 | 33.91 | 53.11 | 258.07 | 0.8158 | 680.3 | 999999 | |
| 0.00 | 1.44 | 0.00 | 1.24 | -7.48 | 34.10 | 53.30 | 255.81 | 0.8222 | 482.0 | 428.4 | |
| 0.00 | 1.98 | 0.00 | 1.66 | -4.04 | 33.49 | 52.69 | 259.76 | 0.8084 | 686.0 | 597.5 | |
| 1.98 | 44.38 | 1.66 | 36.52 | -4.77 | 33.41 | 52.61 | 258.85 | 0.8092 | 682.4 | 590.2 | |
| 0.54 | 3.05 | 0.45 | 2.55 | -4.17 | 33.25 | 52.45 | 259.54 | 0.8063 | 574.5 | 556.8 | |
| 0.00 | 1.44 | 0.00 | 1.23 | -7.15 | 33.58 | 52.78 | 256.05 | 0.8164 | 436.0 | 399.6 | |
| 2.43 | 4.13 | 2.01 | 3.42 | -4.17 | 32.95 | 52.15 | 259.46 | 0.8032 | 706.5 | 589.2 | |
| 4.13 | -12.00 | 3.43 | -12.00 | -4.92 | 32.98 | 52.18 | 258.57 | 0.8051 | 698.3 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.83 | -6.37 | 32.96 | 52.16 | 256.80 | 0.8084 | 216.0 | 189.6 | |
| 2.07 | 3.68 | 1.71 | 3.05 | -5.36 | 32.73 | 51.93 | 257.96 | 0.8036 | 691.1 | 508.6 | |
| 3.14 | -12.00 | 2.59 | -12.00 | -4.91 | 32.63 | 51.83 | 258.48 | 0.8016 | 815.1 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.67 | -6.18 | 32.64 | 51.84 | 256.93 | 0.8046 | 343.0 | 376.3 | |
| 5.57 | -12.00 | 4.56 | -12.00 | -5.01 | 32.34 | 51.54 | 258.28 | 0.7989 | 815.1 | 999999 | |
| 1.35 | 2.96 | 1.11 | 2.45 | -6.22 | 32.34 | 51.54 | 256.81 | 0.8018 | 686.7 | 540.7 | |
| 0.36 | 1.98 | 0.29 | 1.62 | -5.34 | 32.23 | 51.43 | 257.85 | 0.7985 | 698.0 | 634.2 | |
| 2.34 | -12.00 | 1.89 | -12.00 | -5.02 | 31.85 | 51.05 | 258.13 | 0.7939 | 808.8 | 999999 | |
| 0.00 | 1.35 | 0.00 | 1.08 | -5.30 | 31.21 | 50.41 | 257.60 | 0.7879 | 719.0 | 602.3 | |
| 0.00 | 1.26 | 0.00 | 1.00 | -5.27 | 30.92 | 50.12 | 257.55 | 0.7847 | 647.0 | 588.3 | |
| 10.60 | 43.39 | 8.23 | 33.58 | -4.41 | 29.93 | 49.13 | 258.35 | 0.7721 | -415.7 | -144.9 | |
| 0.00 | 1.26 | 0.00 | 0.98 | -5.41 | 30.03 | 49.23 | 257.12 | 0.7757 | 746.0 | 683.9 | |
| 0.00 | 1.80 | 0.00 | 1.38 | -3.06 | 29.69 | 48.89 | 260.00 | 0.7663 | -612.0 | -487.5 | |
| 7.10 | -27.00 | 5.45 | -27.00 | -3.87 | 29.47 | 48.67 | 258.91 | 0.7658 | -774.7 | 999999 | |
| 1.62 | 3.41 | 1.27 | 2.69 | -7.31 | 29.86 | 49.06 | 254.68 | 0.7790 | -561.3 | -418.9 | |
| 0.72 | -27.00 | 0.55 | -27.00 | -4.40 | 29.51 | 48.71 | 258.24 | 0.7675 | -521.8 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -4.56 | 29.25 | 48.45 | 257.96 | 0.7651 | -601.0 | -546.3 | |
| 0.00 | 1.17 | 0.00 | 0.91 | -6.97 | 29.48 | 48.68 | 254.99 | 0.7741 | -616.0 | -433.1 | |
| 0.00 | 0.81 | 0.00 | 0.62 | -5.26 | 29.09 | 48.29 | 257.03 | 0.7651 | -249.0 | -190.3 | |
| 0.00 | 0.99 | 0.00 | 0.75 | -4.69 | 28.99 | 48.19 | 257.72 | 0.7625 | -295.0 | -370.1 | |
| 0.00 | 1.08 | 0.00 | 0.82 | -4.13 | 28.89 | 48.09 | 258.41 | 0.7600 | -566.0 | -413.4 | |
| 0.00 | 1.26 | 0.00 | 0.96 | -5.49 | 28.97 | 48.17 | 256.69 | 0.7645 | -144.0 | -275.9 | |
| 8.00 | 14.28 | 6.08 | 10.85 | -5.16 | 28.71 | 47.91 | 257.03 | 0.7607 | -731.0 | -535.1 | |
| 0.00 | 2.96 | 0.00 | 2.20 | -5.22 | 27.32 | 46.52 | 256.51 | 0.7454 | -593.0 | -533.2 | |
| 0.00 | 1.53 | 0.00 | 1.03 | -5.92 | 21.51 | 40.71 | 253.36 | 0.6794 | -697.0 | -600.8 | |
| 0.00 | 0.99 | 0.00 | 0.66 | -6.11 | 21.21 | 40.41 | 252.96 | 0.6764 | -670.0 | -547.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
