SDO HMI 2014-08-22 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.57 | 440.88 | 33.53 | 218.89 | 8.92 | 343.67 | 2.87 | 304.49 | 0.0618 | -795.9 | -413.1 | |
|
previous
or next observation for the same group /

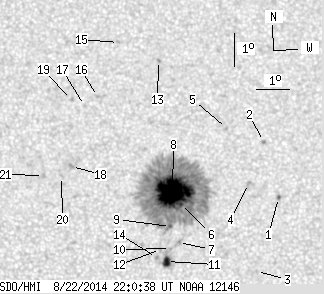

back to the solar disc SDO HMI 2014-08-22 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.45 | 1.62 | 0.22 | 0.81 | 8.75 | 346.97 | 6.17 | 286.67 | 0.1114 | 972.6 | 687.3 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 10.45 | 346.54 | 5.74 | 301.99 | 0.1165 | 1029.0 | 825.7 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 6.52 | 346.26 | 5.46 | 265.57 | 0.0953 | -721.0 | -539.3 | |
| 0.00 | 2.43 | 0.00 | 1.21 | 9.19 | 346.05 | 5.25 | 293.46 | 0.0990 | 748.0 | 655.1 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 10.86 | 345.40 | 4.60 | 310.94 | 0.1047 | 789.0 | 688.0 | |
| 1.26 | 400.96 | 0.62 | 199.04 | 8.60 | 343.95 | 3.15 | 297.81 | 0.0618 | -1176.6 | -478.9 | |
| 0.00 | 3.86 | 0.00 | 1.92 | 7.42 | 343.88 | 3.08 | 278.60 | 0.0542 | -588.0 | -183.7 | |
| 59.39 | -6.00 | 29.48 | -6.00 | 8.97 | 343.71 | 2.91 | 304.93 | 0.0615 | -1554.8 | 999999 | |
| 0.90 | -6.00 | 0.45 | -6.00 | 7.90 | 343.64 | 2.84 | 288.61 | 0.0520 | -757.6 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.36 | 7.24 | 343.64 | 2.84 | 275.70 | 0.0495 | -687.0 | -453.5 | |
| 5.57 | 9.79 | 2.76 | 4.86 | 6.85 | 343.51 | 2.71 | 267.59 | 0.0472 | 1052.0 | 311.1 | |
| 0.00 | 1.89 | 0.00 | 0.94 | 7.21 | 343.33 | 2.53 | 275.71 | 0.0442 | -458.0 | -387.3 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 12.95 | 343.32 | 2.52 | 337.67 | 0.1133 | -1022.0 | -859.3 | |
| 0.00 | 1.62 | 0.00 | 0.80 | 6.97 | 343.21 | 2.41 | 270.20 | 0.0419 | 728.0 | 512.7 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 13.50 | 342.08 | 1.28 | 349.21 | 0.1165 | -753.0 | -629.8 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 11.86 | 341.42 | 0.62 | 352.94 | 0.0864 | -863.0 | -696.8 | |
| 0.00 | 1.44 | 0.00 | 0.71 | 11.59 | 341.02 | 0.22 | 357.38 | 0.0810 | 726.0 | 514.4 | |
| 0.00 | 3.05 | 0.00 | 1.52 | 9.74 | 340.61 | -0.19 | 3.82 | 0.0487 | 939.0 | 773.8 | |
| 0.00 | 1.89 | 0.00 | 0.94 | 11.77 | 340.61 | -0.19 | 2.18 | 0.0842 | 995.0 | 682.4 | |
| 0.00 | 1.44 | 0.00 | 0.71 | 9.43 | 340.30 | -0.50 | 11.20 | 0.0441 | 706.0 | 607.1 | |
| 0.00 | 2.16 | 0.00 | 1.07 | 9.46 | 339.75 | -1.05 | 22.49 | 0.0474 | 994.0 | 831.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
