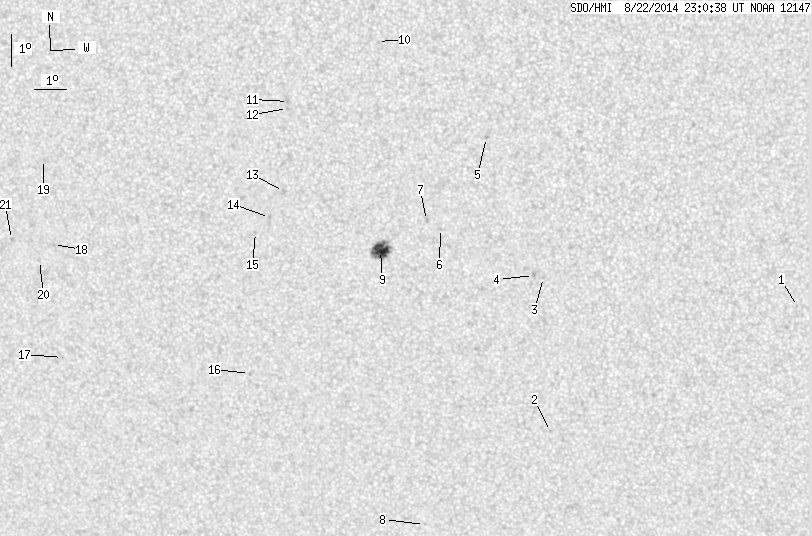

SDO HMI 2014-08-22 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.06 | 51.51 | 9.39 | 26.91 | -9.45 | 332.62 | -7.63 | 155.56 | 0.3173 | 566.2 | 405.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-22 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.36 | 0.00 | 0.19 | -11.32 | 346.57 | 6.32 | 199.02 | 0.3326 | 613.0 | 492.2 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -15.31 | 338.89 | -1.36 | 176.55 | 0.3814 | 738.0 | 493.2 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -10.35 | 338.71 | -1.54 | 174.93 | 0.3001 | 698.0 | 594.2 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -10.28 | 338.40 | -1.85 | 173.90 | 0.2995 | 776.0 | 674.5 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -5.95 | 336.99 | -3.26 | 165.82 | 0.2315 | 978.0 | 831.2 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -8.81 | 335.55 | -4.69 | 163.42 | 0.2846 | 719.0 | 553.8 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -8.57 | 335.13 | -5.12 | 161.73 | 0.2828 | 757.0 | 737.3 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -18.42 | 334.83 | -5.42 | 168.19 | 0.4393 | 643.0 | 453.4 | |
| 18.06 | 27.49 | 9.39 | 14.30 | -9.53 | 333.69 | -6.56 | 158.31 | 0.3061 | 1108.0 | 696.1 | |
| 0.00 | 0.63 | 0.00 | 0.32 | -3.02 | 333.69 | -6.56 | 146.54 | 0.2078 | 528.0 | 414.3 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -4.91 | 330.94 | -9.31 | 141.73 | 0.2614 | 794.0 | 592.5 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -5.13 | 330.90 | -9.34 | 142.14 | 0.2647 | 792.0 | 516.5 | |
| 0.00 | 3.14 | 0.00 | 1.63 | -7.72 | 330.73 | -9.52 | 146.95 | 0.3019 | 784.0 | 663.0 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -8.54 | 330.27 | -9.98 | 147.18 | 0.3175 | 949.0 | 741.4 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -9.03 | 329.82 | -10.43 | 146.84 | 0.3282 | 722.0 | 511.3 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -13.54 | 329.46 | -10.79 | 152.40 | 0.3946 | -659.0 | -544.5 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -13.19 | 323.47 | -16.77 | 140.40 | 0.4427 | -664.0 | -512.6 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -9.59 | 323.41 | -16.84 | 134.41 | 0.4016 | -769.0 | -645.2 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -6.93 | 323.21 | -17.04 | 128.92 | 0.3755 | -730.0 | -668.0 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -10.11 | 322.93 | -17.32 | 134.53 | 0.4128 | -681.0 | -575.1 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -9.48 | 322.06 | -18.19 | 132.00 | 0.4160 | -750.0 | -628.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
