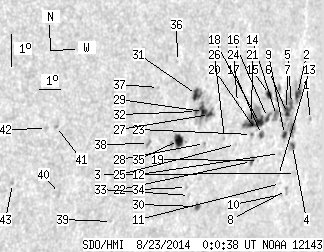

SDO HMI 2014-08-23 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.90 | 193.40 | 47.93 | 161.25 | -4.99 | 32.00 | 52.31 | 258.48 | 0.8059 | 114.3 | 254.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-23 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 1.14 | -5.20 | 35.34 | 55.65 | 259.11 | 0.8394 | 373.0 | 280.5 | |
| 4.31 | 55.35 | 3.81 | 48.56 | -4.35 | 34.54 | 54.85 | 259.92 | 0.8302 | 449.4 | 439.0 | |
| 0.00 | 0.99 | 0.00 | 0.89 | -6.82 | 34.78 | 55.08 | 257.08 | 0.8375 | 412.0 | 392.5 | |
| 1.98 | 4.94 | 1.76 | 4.39 | -5.92 | 34.48 | 54.78 | 258.05 | 0.8327 | 332.5 | 239.8 | |
| 0.27 | -2.00 | 0.24 | -2.00 | -4.59 | 34.25 | 54.56 | 259.56 | 0.8279 | 600.7 | 999999 | |
| 1.71 | -2.00 | 1.49 | -2.00 | -4.88 | 34.07 | 54.38 | 259.17 | 0.8268 | 629.1 | 999999 | |
| 1.98 | -2.00 | 1.73 | -2.00 | -4.75 | 34.01 | 54.31 | 259.31 | 0.8258 | 696.1 | 999999 | |
| 0.00 | 2.70 | 0.00 | 2.41 | -7.30 | 34.38 | 54.69 | 256.40 | 0.8349 | 485.0 | 402.2 | |
| 2.61 | -2.00 | 2.29 | -2.00 | -5.53 | 34.00 | 54.30 | 258.39 | 0.8274 | 629.4 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.96 | -7.40 | 34.14 | 54.44 | 256.22 | 0.8328 | 507.0 | 447.7 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -7.05 | 34.02 | 54.32 | 256.60 | 0.8309 | 591.0 | 501.7 | |
| 0.00 | 1.17 | 0.00 | 1.02 | -6.10 | 33.82 | 54.12 | 257.67 | 0.8268 | 429.0 | 426.3 | |
| 0.00 | 0.72 | 0.00 | 0.63 | -6.78 | 33.87 | 54.17 | 256.87 | 0.8289 | 496.0 | 441.8 | |
| 0.00 | 6.02 | 0.00 | 5.20 | -4.89 | 33.50 | 53.80 | 259.02 | 0.8212 | 732.0 | 624.4 | |
| 3.06 | 4.76 | 2.60 | 4.05 | -4.20 | 33.07 | 53.37 | 259.74 | 0.8155 | 709.7 | 603.7 | |
| 2.52 | 34.42 | 2.15 | 28.99 | -4.90 | 33.04 | 53.34 | 258.88 | 0.8167 | 632.1 | 600.0 | |
| 2.07 | 4.04 | 1.76 | 3.44 | -5.40 | 32.79 | 53.09 | 258.22 | 0.8154 | 625.0 | 437.9 | |
| 6.47 | -16.00 | 5.48 | -16.00 | -5.02 | 32.64 | 52.95 | 258.64 | 0.8131 | 748.8 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.46 | -6.21 | 32.75 | 53.05 | 257.24 | 0.8168 | 454.0 | 395.5 | |
| 0.00 | 0.63 | 0.00 | 0.53 | -5.25 | 32.52 | 52.82 | 258.32 | 0.8124 | 481.0 | 496.7 | |
| 3.41 | -16.00 | 2.86 | -16.00 | -5.01 | 32.24 | 52.54 | 258.54 | 0.8090 | 796.8 | 999999 | |
| 1.53 | 3.41 | 1.29 | 2.89 | -6.20 | 32.39 | 52.69 | 257.15 | 0.8132 | 615.9 | 517.9 | |
| 0.54 | 1.80 | 0.45 | 1.51 | -5.35 | 32.28 | 52.58 | 258.14 | 0.8102 | 642.8 | 521.1 | |
| 0.00 | 0.99 | 0.00 | 0.81 | -4.28 | 31.46 | 51.77 | 259.22 | 0.7996 | -268.0 | -147.1 | |
| 0.00 | 0.99 | 0.00 | 0.82 | -5.59 | 31.51 | 51.81 | 257.64 | 0.8030 | 474.0 | 430.5 | |
| 0.00 | 0.72 | 0.00 | 0.59 | -5.35 | 30.94 | 51.24 | 257.78 | 0.7966 | 718.0 | 620.2 | |
| 2.70 | 35.40 | 2.15 | 27.98 | -4.52 | 30.12 | 50.43 | 258.57 | 0.7862 | -367.4 | -245.8 | |
| 0.00 | 1.26 | 0.00 | 1.01 | -5.41 | 29.97 | 50.28 | 257.43 | 0.7868 | 646.0 | 526.2 | |
| 5.93 | -27.00 | 4.70 | -27.00 | -4.40 | 29.82 | 50.13 | 258.63 | 0.7828 | -495.2 | 999999 | |
| 1.98 | 3.41 | 1.59 | 2.75 | -7.36 | 29.90 | 50.20 | 255.00 | 0.7911 | -511.5 | -336.4 | |
| 6.02 | -27.00 | 4.72 | -27.00 | -3.84 | 29.44 | 49.75 | 259.23 | 0.7774 | -743.4 | 999999 | |
| 1.08 | -27.00 | 0.85 | -27.00 | -4.37 | 29.49 | 49.79 | 258.58 | 0.7791 | -574.5 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.79 | -6.97 | 29.46 | 49.76 | 255.33 | 0.7855 | -501.0 | -402.6 | |
| 0.00 | 1.17 | 0.00 | 0.93 | -6.71 | 29.28 | 49.58 | 255.61 | 0.7829 | -264.0 | -242.8 | |
| 7.73 | 12.40 | 6.01 | 9.63 | -5.19 | 28.72 | 49.03 | 257.32 | 0.7730 | -670.7 | -576.8 | |
| 0.00 | 0.81 | 0.00 | 0.62 | -2.74 | 28.48 | 48.78 | 260.38 | 0.7644 | -574.0 | -453.8 | |
| 0.00 | 0.81 | 0.00 | 0.61 | -3.46 | 27.65 | 47.96 | 259.23 | 0.7569 | -623.0 | -570.8 | |
| 0.00 | 2.70 | 0.00 | 2.04 | -5.16 | 27.34 | 47.64 | 256.94 | 0.7578 | -707.0 | -600.1 | |
| 0.00 | 0.45 | 0.00 | 0.33 | -7.45 | 25.95 | 46.25 | 253.51 | 0.7493 | -418.0 | -351.0 | |
| 0.00 | 2.61 | 0.00 | 1.85 | -6.37 | 23.56 | 43.86 | 254.03 | 0.7186 | -141.0 | -142.6 | |
| 0.00 | 1.44 | 0.00 | 1.01 | -4.27 | 23.24 | 43.55 | 256.76 | 0.7081 | -600.0 | -489.4 | |
| 0.00 | 1.98 | 0.00 | 1.37 | -4.29 | 22.83 | 43.13 | 256.58 | 0.7032 | -619.0 | -467.0 | |
| 0.00 | 1.17 | 0.00 | 0.80 | -5.89 | 21.55 | 41.85 | 253.88 | 0.6931 | -713.0 | -620.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
