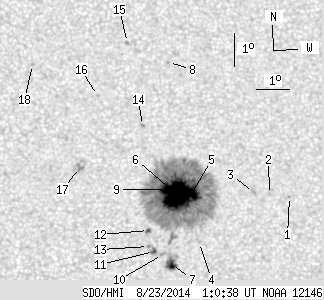

SDO HMI 2014-08-23 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.16 | 456.48 | 36.38 | 227.00 | 8.91 | 343.71 | 4.56 | 293.51 | 0.0868 | -900.4 | -403.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-23 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.54 | 8.82 | 347.17 | 8.02 | 283.61 | 0.1426 | 813.0 | 669.8 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 8.89 | 346.55 | 7.41 | 285.15 | 0.1325 | 962.0 | 716.8 | |
| 0.00 | 2.88 | 0.00 | 1.44 | 8.96 | 346.06 | 6.91 | 286.64 | 0.1247 | 703.0 | 651.2 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 7.47 | 344.37 | 5.23 | 275.77 | 0.0912 | -684.0 | -431.9 | |
| 12.49 | 422.03 | 6.22 | 209.89 | 8.96 | 344.15 | 5.00 | 292.15 | 0.0934 | -1284.4 | -457.5 | |
| 42.96 | -5.00 | 21.36 | -5.00 | 8.90 | 343.71 | 4.57 | 293.37 | 0.0861 | -1524.6 | 999999 | |
| 5.66 | 9.89 | 2.81 | 4.91 | 6.81 | 343.51 | 4.36 | 268.11 | 0.0759 | 951.5 | 624.8 | |
| 0.00 | 0.81 | 0.00 | 0.40 | 12.95 | 343.50 | 4.36 | 324.65 | 0.1285 | -849.0 | -694.1 | |
| 9.98 | -5.00 | 4.96 | -5.00 | 9.09 | 343.41 | 4.26 | 296.86 | 0.0827 | -1489.1 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.03 | 7.12 | 343.23 | 4.09 | 272.27 | 0.0711 | 781.0 | 549.6 | |
| 1.17 | 3.15 | 0.58 | 1.56 | 7.21 | 342.96 | 3.81 | 273.81 | 0.0664 | 936.8 | 626.2 | |
| 0.90 | 2.34 | 0.45 | 1.16 | 7.85 | 342.81 | 3.67 | 283.76 | 0.0655 | -918.5 | -696.9 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 7.37 | 342.81 | 3.66 | 276.35 | 0.0640 | 737.0 | 437.8 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 11.04 | 342.66 | 3.52 | 319.71 | 0.0936 | -982.0 | -831.1 | |
| 0.00 | 1.53 | 0.00 | 0.76 | 13.57 | 342.23 | 3.09 | 335.52 | 0.1269 | -940.0 | -754.5 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 11.96 | 341.28 | 2.13 | 337.26 | 0.0947 | -696.0 | -553.3 | |
| 0.00 | 4.49 | 0.00 | 2.23 | 9.78 | 340.71 | 1.56 | 331.20 | 0.0560 | 896.0 | 807.3 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 12.91 | 339.27 | 0.12 | 358.85 | 0.1039 | 852.0 | 631.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
