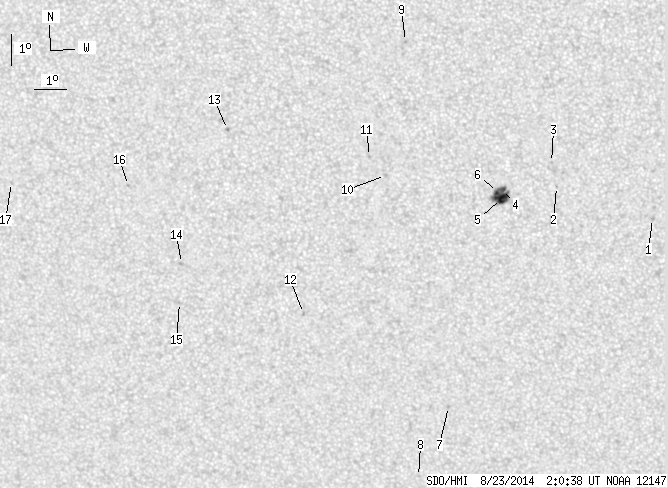

SDO HMI 2014-08-23 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.71 | 40.92 | 9.18 | 21.42 | -9.95 | 331.52 | -7.07 | 158.42 | 0.3219 | 603.5 | 319.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-23 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.75 | -10.21 | 338.44 | -0.15 | 179.48 | 0.2968 | 919.0 | 792.1 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -9.20 | 335.49 | -3.10 | 169.14 | 0.2849 | 633.0 | 529.9 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -8.45 | 335.35 | -3.25 | 168.09 | 0.2729 | 882.0 | 685.7 | |
| 3.33 | 24.36 | 1.72 | 12.63 | -9.31 | 333.83 | -4.77 | 163.68 | 0.2931 | 1151.6 | 707.8 | |
| 12.22 | -4.00 | 6.34 | -4.00 | -9.60 | 333.80 | -4.80 | 163.84 | 0.2979 | 1069.2 | 999999 | |
| 2.16 | -4.00 | 1.12 | -4.00 | -9.41 | 333.67 | -4.92 | 163.27 | 0.2954 | 1111.6 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -16.33 | 331.97 | -6.63 | 164.34 | 0.4119 | 732.0 | 632.9 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -18.68 | 330.91 | -7.68 | 163.66 | 0.4520 | 706.0 | 522.4 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -4.72 | 330.92 | -7.68 | 146.56 | 0.2428 | 874.0 | 772.3 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -8.92 | 330.22 | -8.37 | 152.17 | 0.3096 | 785.0 | 542.2 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -8.33 | 329.74 | -8.86 | 149.88 | 0.3049 | 798.0 | 599.8 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -13.38 | 327.49 | -11.11 | 151.53 | 0.3948 | -746.0 | -639.5 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -7.58 | 325.33 | -13.27 | 137.49 | 0.3381 | 943.0 | 736.4 | |
| 0.00 | 1.89 | 0.00 | 1.02 | -11.87 | 323.68 | -14.92 | 141.71 | 0.4083 | -663.0 | -581.5 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -13.13 | 323.54 | -15.06 | 143.32 | 0.4254 | -521.0 | -366.5 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -9.44 | 322.11 | -16.48 | 134.78 | 0.3960 | -692.0 | -572.9 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -9.49 | 318.32 | -20.28 | 128.93 | 0.4413 | -665.0 | -515.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
