SDO HMI 2014-08-23 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.67 | 113.90 | 16.11 | 87.93 | 16.51 | 28.34 | 50.29 | 285.75 | 0.7682 | -405.5 | -219.6 | |
|
previous
or next observation for the same group /

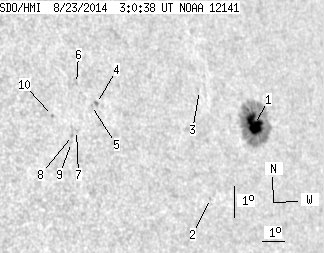

back to the solar disc SDO HMI 2014-08-23 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.67 | 104.18 | 16.11 | 81.25 | 16.45 | 28.87 | 50.82 | 285.60 | 0.7741 | -817.2 | -276.9 | |
| 0.00 | 0.72 | 0.00 | 0.53 | 14.41 | 26.07 | 48.02 | 283.16 | 0.7417 | -611.0 | -553.0 | |
| 0.00 | 0.72 | 0.00 | 0.54 | 17.72 | 26.62 | 48.57 | 287.53 | 0.7513 | -532.0 | -548.2 | |
| 0.00 | 2.07 | 0.00 | 1.42 | 17.72 | 21.86 | 43.82 | 288.34 | 0.6971 | 649.0 | 502.6 | |
| 0.00 | 0.99 | 0.00 | 0.68 | 17.68 | 21.63 | 43.58 | 288.33 | 0.6942 | 534.0 | 518.3 | |
| 0.00 | 0.90 | 0.00 | 0.61 | 18.40 | 21.19 | 43.15 | 289.46 | 0.6905 | 545.0 | 511.6 | |
| 0.00 | 1.17 | 0.00 | 0.79 | 16.97 | 20.77 | 42.72 | 287.48 | 0.6826 | 563.0 | 480.5 | |
| 0.00 | 1.26 | 0.00 | 0.85 | 16.83 | 20.55 | 42.51 | 287.32 | 0.6797 | 578.0 | 460.6 | |
| 0.00 | 0.90 | 0.00 | 0.60 | 16.62 | 20.45 | 42.40 | 287.04 | 0.6781 | 597.0 | 533.6 | |
| 0.00 | 0.99 | 0.00 | 0.66 | 17.51 | 19.89 | 41.84 | 288.46 | 0.6729 | 660.0 | 563.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
