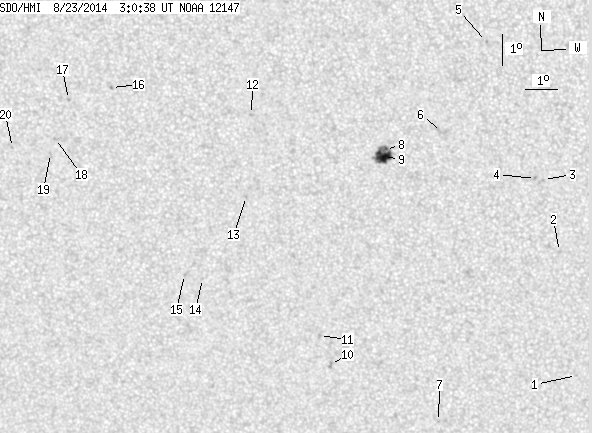

SDO HMI 2014-08-23 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.62 | 51.35 | 9.13 | 26.83 | -10.39 | 332.87 | -5.18 | 163.90 | 0.3183 | 463.2 | 342.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-23 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.44 | -16.63 | 339.78 | 1.73 | 184.13 | 0.4032 | 671.0 | 514.6 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -12.58 | 339.22 | 1.18 | 183.42 | 0.3368 | 669.0 | 565.9 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -10.28 | 338.72 | 0.68 | 182.24 | 0.2982 | 496.0 | 435.1 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -10.24 | 338.48 | 0.43 | 181.43 | 0.2975 | 949.0 | 810.0 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -5.94 | 336.98 | -1.06 | 175.28 | 0.2253 | 892.0 | 739.2 | |
| 0.00 | 5.84 | 0.00 | 3.01 | -8.76 | 335.59 | -2.45 | 171.13 | 0.2757 | 300.0 | 513.6 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -18.16 | 335.39 | -2.66 | 174.07 | 0.4288 | 725.0 | 553.3 | |
| 1.89 | 24.45 | 0.98 | 12.67 | -9.34 | 333.86 | -4.18 | 165.62 | 0.2910 | 1171.7 | 711.5 | |
| 15.73 | -8.00 | 8.15 | -8.00 | -9.56 | 333.80 | -4.25 | 165.59 | 0.2949 | 1073.6 | 999999 | |
| 0.00 | 2.70 | 0.00 | 1.46 | -16.29 | 331.99 | -6.05 | 165.61 | 0.4089 | 797.0 | 608.6 | |
| 0.00 | 1.53 | 0.00 | 0.82 | -15.34 | 331.68 | -6.37 | 164.23 | 0.3956 | -809.0 | -638.8 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -8.29 | 329.75 | -8.30 | 151.40 | 0.2998 | 634.0 | 625.4 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -10.89 | 329.52 | -8.52 | 154.52 | 0.3398 | 823.0 | 596.0 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -13.55 | 328.04 | -10.01 | 154.16 | 0.3892 | -889.0 | -652.0 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -13.43 | 327.48 | -10.57 | 152.77 | 0.3916 | -667.0 | -603.6 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -7.53 | 325.41 | -12.64 | 138.79 | 0.3307 | 898.0 | 765.7 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -7.95 | 324.04 | -14.00 | 136.66 | 0.3508 | -802.0 | -627.5 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -9.19 | 323.58 | -14.47 | 138.08 | 0.3707 | -703.0 | -715.0 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -9.67 | 323.40 | -14.65 | 138.59 | 0.3784 | -721.0 | -588.1 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -9.52 | 322.20 | -15.85 | 136.05 | 0.3897 | -595.0 | -470.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
