SDO HMI 2014-08-23 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.33 | 110.06 | 15.36 | 86.54 | 16.62 | 28.13 | 51.18 | 285.83 | 0.7776 | -407.8 | -229.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-23 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

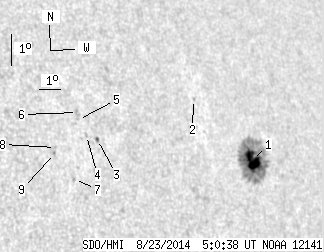

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.79 | 97.82 | 14.98 | 78.00 | 16.48 | 28.86 | 51.91 | 285.53 | 0.7855 | -889.6 | -308.6 | |
| 0.00 | 0.99 | 0.00 | 0.76 | 18.59 | 26.70 | 49.75 | 288.50 | 0.7651 | -357.0 | -435.2 | |
| 0.54 | 1.80 | 0.38 | 1.26 | 17.76 | 21.86 | 44.91 | 288.18 | 0.7099 | 530.8 | 444.3 | |
| 0.00 | 1.44 | 0.00 | 1.00 | 17.92 | 21.41 | 44.46 | 288.50 | 0.7051 | 540.0 | 445.9 | |
| 0.00 | 0.63 | 0.00 | 0.44 | 18.44 | 21.22 | 44.27 | 289.26 | 0.7038 | 516.0 | 470.6 | |
| 0.00 | 3.24 | 0.00 | 2.25 | 18.66 | 21.25 | 44.30 | 289.56 | 0.7045 | 540.0 | 422.2 | |
| 0.00 | 1.53 | 0.00 | 1.05 | 16.63 | 20.49 | 43.54 | 286.83 | 0.6919 | 609.0 | 438.5 | |
| 0.00 | 1.26 | 0.00 | 0.86 | 17.67 | 19.96 | 43.01 | 288.43 | 0.6874 | 435.0 | 452.1 | |
| 0.00 | 1.35 | 0.00 | 0.92 | 17.49 | 19.87 | 42.92 | 288.19 | 0.6859 | 785.0 | 645.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
