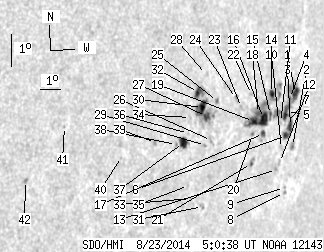

SDO HMI 2014-08-23 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.94 | 215.02 | 64.67 | 192.60 | -4.94 | 32.16 | 55.21 | 259.28 | 0.8342 | 224.2 | 221.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-23 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.57 | 112.74 | 5.31 | 104.53 | -4.36 | 34.63 | 57.68 | 260.55 | 0.8563 | 454.8 | 466.7 | |
| 0.90 | 3.60 | 0.87 | 3.46 | -6.01 | 34.70 | 57.74 | 258.68 | 0.8597 | 442.6 | 293.5 | |
| 3.87 | -1.00 | 3.69 | -1.00 | -5.37 | 34.48 | 57.53 | 259.36 | 0.8567 | 290.8 | 999999 | |
| 0.81 | -1.00 | 0.77 | -1.00 | -4.48 | 34.30 | 57.35 | 260.34 | 0.8536 | 687.9 | 999999 | |
| 6.47 | -1.00 | 6.11 | -1.00 | -4.87 | 34.18 | 57.23 | 259.86 | 0.8532 | 573.6 | 999999 | |
| 3.33 | -1.00 | 3.16 | -1.00 | -5.62 | 34.29 | 57.34 | 259.02 | 0.8555 | 499.7 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.53 | -5.27 | 34.18 | 57.23 | 259.40 | 0.8539 | 555.0 | 484.2 | |
| 0.00 | 1.53 | 0.00 | 1.48 | -7.42 | 34.50 | 57.55 | 257.03 | 0.8607 | 531.0 | 389.2 | |
| 0.00 | 0.63 | 0.00 | 0.61 | -7.26 | 34.47 | 57.51 | 257.20 | 0.8601 | 428.0 | 409.3 | |
| 0.00 | 2.61 | 0.00 | 2.47 | -6.00 | 34.07 | 57.12 | 258.53 | 0.8542 | 624.0 | 411.2 | |
| 0.00 | 1.89 | 0.00 | 1.77 | -5.18 | 33.89 | 56.94 | 259.44 | 0.8511 | 537.0 | 437.9 | |
| 0.00 | 1.98 | 0.00 | 1.88 | -6.43 | 34.03 | 57.08 | 258.03 | 0.8547 | 554.0 | 452.8 | |
| 0.00 | 1.44 | 0.00 | 1.36 | -6.64 | 33.89 | 56.94 | 257.76 | 0.8539 | 541.0 | 496.4 | |
| 3.24 | -1.00 | 2.97 | -1.00 | -4.22 | 33.27 | 56.31 | 260.41 | 0.8437 | 715.4 | 999999 | |
| 1.62 | -1.00 | 1.49 | -1.00 | -4.87 | 33.29 | 56.34 | 259.66 | 0.8451 | 513.4 | 999999 | |
| 10.88 | -1.00 | 9.93 | -1.00 | -4.95 | 32.91 | 55.96 | 259.47 | 0.8418 | 822.4 | 999999 | |
| 2.25 | 3.78 | 2.06 | 3.46 | -5.43 | 32.98 | 56.02 | 258.94 | 0.8433 | 555.2 | 384.7 | |
| 3.42 | -1.00 | 3.09 | -1.00 | -4.77 | 32.62 | 55.67 | 259.61 | 0.8387 | 705.7 | 999999 | |
| 7.10 | -1.00 | 6.39 | -1.00 | -4.99 | 32.37 | 55.42 | 259.29 | 0.8369 | 831.4 | 999999 | |
| 0.00 | 1.53 | 0.00 | 1.38 | -5.39 | 32.37 | 55.42 | 258.82 | 0.8377 | 674.0 | 599.2 | |
| 0.81 | 3.78 | 0.73 | 3.43 | -6.30 | 32.45 | 55.50 | 257.79 | 0.8402 | 615.8 | 559.2 | |
| 0.00 | 2.16 | 0.00 | 1.92 | -4.14 | 32.17 | 55.22 | 260.25 | 0.8333 | 371.0 | 342.1 | |
| 0.00 | 1.62 | 0.00 | 1.43 | -4.49 | 31.67 | 54.72 | 259.72 | 0.8293 | 238.0 | 240.1 | |
| 0.00 | 2.70 | 0.00 | 2.36 | -4.18 | 31.37 | 54.42 | 260.01 | 0.8258 | -213.0 | -119.7 | |
| 0.63 | 2.07 | 0.54 | 1.76 | -4.17 | 30.39 | 53.43 | 259.78 | 0.8161 | -292.6 | -190.9 | |
| 0.00 | 3.42 | 0.00 | 2.92 | -5.36 | 30.21 | 53.26 | 258.31 | 0.8169 | 607.0 | 475.3 | |
| 3.69 | 31.47 | 3.11 | 26.48 | -4.58 | 29.87 | 52.91 | 259.15 | 0.8118 | -310.3 | -131.1 | |
| 0.00 | 1.53 | 0.00 | 1.28 | -3.28 | 29.75 | 52.80 | 260.71 | 0.8080 | -187.0 | -313.5 | |
| 0.00 | 0.81 | 0.00 | 0.69 | -5.49 | 29.92 | 52.97 | 258.08 | 0.8143 | 678.0 | 612.1 | |
| 6.47 | -27.00 | 5.43 | -27.00 | -4.28 | 29.63 | 52.68 | 259.46 | 0.8089 | -567.9 | 999999 | |
| 0.00 | 3.06 | 0.00 | 2.63 | -7.39 | 30.05 | 53.10 | 255.84 | 0.8201 | -482.0 | -373.4 | |
| 4.68 | 10.52 | 3.89 | 8.76 | -3.80 | 29.39 | 52.44 | 259.99 | 0.8054 | -749.8 | -544.2 | |
| 0.00 | 0.81 | 0.00 | 0.69 | -7.08 | 29.44 | 52.49 | 256.03 | 0.8134 | -468.0 | -367.4 | |
| 0.00 | 1.26 | 0.00 | 1.04 | -4.53 | 29.06 | 52.10 | 259.00 | 0.8036 | -581.0 | -502.9 | |
| 0.00 | 0.81 | 0.00 | 0.68 | -6.66 | 29.22 | 52.27 | 256.48 | 0.8102 | -242.0 | -259.8 | |
| 0.00 | 0.90 | 0.00 | 0.75 | -5.02 | 29.01 | 52.06 | 258.39 | 0.8042 | -421.0 | -334.2 | |
| 6.20 | 8.54 | 5.13 | 7.06 | -5.28 | 28.79 | 51.84 | 258.02 | 0.8026 | -698.4 | -486.9 | |
| 0.00 | 1.17 | 0.00 | 0.96 | -5.31 | 28.45 | 51.50 | 257.89 | 0.7992 | -622.0 | -608.6 | |
| 0.00 | 2.25 | 0.00 | 1.80 | -5.15 | 27.41 | 50.46 | 257.80 | 0.7880 | -686.0 | -566.5 | |
| 0.00 | 0.36 | 0.00 | 0.28 | -5.43 | 25.83 | 48.88 | 256.98 | 0.7720 | -232.0 | -330.2 | |
| 0.00 | 0.81 | 0.00 | 0.59 | -4.25 | 23.14 | 46.19 | 257.65 | 0.7389 | -582.0 | -521.4 | |
| 0.00 | 1.62 | 0.00 | 1.16 | -5.78 | 21.58 | 44.62 | 255.09 | 0.7255 | -661.0 | -597.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
