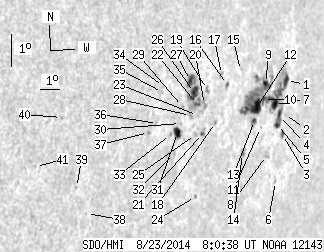

SDO HMI 2014-08-23 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.23 | 208.64 | 51.78 | 195.35 | -4.92 | 32.34 | 57.03 | 259.75 | 0.8508 | 106.9 | 277.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-23 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.23 | 118.50 | 4.23 | 115.32 | -4.34 | 34.75 | 59.44 | 260.96 | 0.8714 | 449.9 | 506.2 | |
| 0.00 | 1.35 | 0.00 | 1.36 | -5.39 | 34.78 | 59.47 | 259.78 | 0.8734 | -348.0 | -263.4 | |
| 1.17 | 2.97 | 1.18 | 3.01 | -6.01 | 34.76 | 59.46 | 259.08 | 0.8743 | 315.1 | 190.2 | |
| 4.05 | -1.00 | 4.05 | -1.00 | -5.39 | 34.48 | 59.17 | 259.71 | 0.8708 | 346.5 | 999999 | |
| 2.88 | -1.00 | 2.88 | -1.00 | -5.66 | 34.40 | 59.09 | 259.39 | 0.8707 | 493.9 | 999999 | |
| 0.00 | 0.99 | 0.00 | 1.01 | -7.45 | 34.63 | 59.32 | 257.43 | 0.8757 | 346.0 | 355.1 | |
| 5.04 | -1.00 | 4.98 | -1.00 | -5.01 | 34.12 | 58.82 | 260.06 | 0.8672 | 651.9 | 999999 | |
| 0.00 | 2.52 | 0.00 | 2.50 | -6.57 | 33.91 | 58.60 | 258.25 | 0.8681 | 295.0 | 367.0 | |
| 2.43 | -1.00 | 2.35 | -1.00 | -4.30 | 33.50 | 58.19 | 260.74 | 0.8606 | 589.8 | 999999 | |
| 1.80 | -1.00 | 1.74 | -1.00 | -4.78 | 33.45 | 58.14 | 260.17 | 0.8610 | 605.8 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.87 | -5.64 | 33.40 | 58.09 | 259.18 | 0.8621 | 219.0 | 286.7 | |
| 11.06 | -1.00 | 10.60 | -1.00 | -4.99 | 33.07 | 57.76 | 259.85 | 0.8581 | 851.4 | 999999 | |
| 1.62 | 4.23 | 1.55 | 4.05 | -5.39 | 33.01 | 57.70 | 259.38 | 0.8583 | 546.8 | 526.4 | |
| 0.36 | 3.51 | 0.34 | 3.34 | -6.35 | 32.48 | 57.17 | 258.15 | 0.8554 | 405.5 | 529.5 | |
| 0.00 | 0.72 | 0.00 | 0.67 | -3.74 | 32.02 | 56.71 | 261.06 | 0.8464 | 139.0 | 144.6 | |
| 0.63 | 2.16 | 0.57 | 1.96 | -4.10 | 31.33 | 56.03 | 260.48 | 0.8408 | -138.7 | -82.7 | |
| 0.00 | 2.34 | 0.00 | 2.10 | -3.75 | 30.97 | 55.66 | 260.81 | 0.8368 | -124.0 | -154.8 | |
| 0.00 | 1.26 | 0.00 | 1.14 | -5.22 | 30.81 | 55.51 | 259.05 | 0.8381 | 417.0 | 490.1 | |
| 0.00 | 3.15 | 0.00 | 2.79 | -4.14 | 30.26 | 54.95 | 260.18 | 0.8308 | -346.0 | -160.8 | |
| 0.00 | 3.69 | 0.00 | 3.26 | -4.59 | 30.15 | 54.84 | 259.62 | 0.8306 | 171.0 | 156.0 | |
| 0.81 | 3.06 | 0.72 | 2.72 | -5.49 | 30.15 | 54.84 | 258.57 | 0.8324 | 614.1 | 634.3 | |
| 1.71 | 32.73 | 1.50 | 28.44 | -4.56 | 29.77 | 54.46 | 259.58 | 0.8269 | -260.6 | -333.8 | |
| 0.00 | 0.72 | 0.00 | 0.63 | -4.90 | 29.81 | 54.50 | 259.18 | 0.8280 | 183.0 | 208.5 | |
| 0.00 | 0.99 | 0.00 | 0.89 | -7.44 | 30.09 | 54.78 | 256.27 | 0.8361 | -376.0 | -384.6 | |
| 0.00 | 2.07 | 0.00 | 1.82 | -5.48 | 29.78 | 54.47 | 258.48 | 0.8289 | 519.0 | 483.4 | |
| 7.28 | -22.00 | 6.34 | -22.00 | -4.17 | 29.57 | 54.26 | 259.99 | 0.8242 | -645.2 | 999999 | |
| 4.50 | -22.00 | 3.88 | -22.00 | -3.77 | 29.33 | 54.02 | 260.41 | 0.8211 | -695.8 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.57 | -4.86 | 29.44 | 54.13 | 259.13 | 0.8243 | 9.0 | 81.6 | |
| 0.00 | 1.17 | 0.00 | 1.01 | -4.54 | 28.99 | 53.68 | 259.40 | 0.8193 | -340.0 | -418.8 | |
| 0.00 | 0.81 | 0.00 | 0.70 | -5.06 | 28.94 | 53.63 | 258.77 | 0.8199 | -378.0 | -382.2 | |
| 5.66 | 8.00 | 4.87 | 6.88 | -5.33 | 28.82 | 53.51 | 258.42 | 0.8193 | -668.0 | -473.8 | |
| 0.00 | 1.35 | 0.00 | 1.16 | -5.97 | 28.75 | 53.44 | 257.63 | 0.8200 | -180.0 | -214.9 | |
| 0.00 | 1.08 | 0.00 | 0.92 | -5.35 | 28.46 | 53.16 | 258.29 | 0.8159 | -485.0 | -455.6 | |
| 0.00 | 0.63 | 0.00 | 0.53 | -3.82 | 27.95 | 52.64 | 260.01 | 0.8075 | -317.0 | -444.3 | |
| 0.00 | 0.90 | 0.00 | 0.75 | -4.00 | 27.91 | 52.60 | 259.78 | 0.8075 | -171.0 | -323.0 | |
| 0.00 | 0.54 | 0.00 | 0.45 | -4.94 | 27.76 | 52.45 | 258.60 | 0.8079 | -477.0 | -401.3 | |
| 0.00 | 1.08 | 0.00 | 0.90 | -5.18 | 27.33 | 52.02 | 258.20 | 0.8042 | -220.0 | -351.5 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -7.43 | 24.63 | 49.32 | 254.62 | 0.7822 | -416.0 | -400.3 | |
| 0.00 | 0.81 | 0.00 | 0.63 | -6.57 | 24.04 | 48.73 | 255.50 | 0.7735 | -383.0 | -377.8 | |
| 0.00 | 1.44 | 0.00 | 1.09 | -4.31 | 23.11 | 47.80 | 258.08 | 0.7573 | -162.0 | -297.5 | |
| 0.00 | 0.90 | 0.00 | 0.67 | -5.73 | 22.07 | 46.77 | 255.91 | 0.7497 | -392.0 | -353.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
