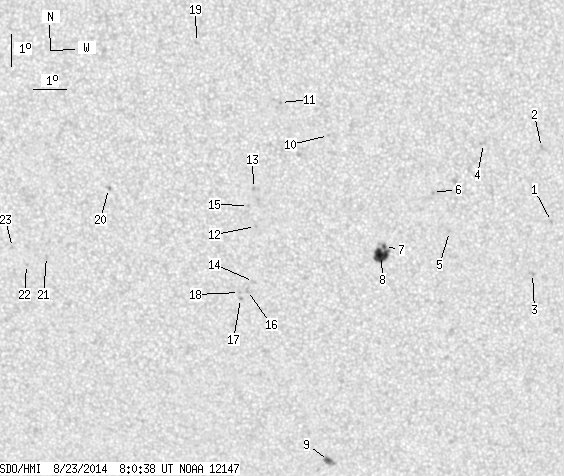

SDO HMI 2014-08-23 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.54 | 57.57 | 9.12 | 29.89 | -9.70 | 332.45 | -2.86 | 170.75 | 0.2991 | 745.3 | 586.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-23 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.56 | -8.53 | 339.11 | 3.80 | 193.80 | 0.2762 | 872.0 | 722.8 | |
| 0.00 | 1.80 | 0.00 | 0.92 | -6.21 | 338.79 | 3.48 | 194.83 | 0.2368 | 803.0 | 736.2 | |
| 0.00 | 2.16 | 0.00 | 1.12 | -10.17 | 338.54 | 3.23 | 190.67 | 0.3011 | 872.0 | 774.5 | |
| 0.00 | 2.70 | 0.00 | 1.37 | -6.08 | 337.02 | 1.71 | 187.48 | 0.2287 | 803.0 | 651.2 | |
| 0.00 | 1.62 | 0.00 | 0.83 | -8.83 | 335.98 | 0.67 | 182.44 | 0.2738 | 860.0 | 641.8 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -7.60 | 335.46 | 0.15 | 180.60 | 0.2528 | 648.0 | 593.9 | |
| 1.44 | 21.40 | 0.74 | 11.06 | -9.30 | 333.98 | -1.32 | 175.35 | 0.2824 | 1151.2 | 807.2 | |
| 13.22 | -7.00 | 6.83 | -7.00 | -9.58 | 333.89 | -1.42 | 175.11 | 0.2873 | 1083.9 | 999999 | |
| 2.88 | 6.65 | 1.55 | 3.59 | -16.21 | 332.17 | -3.14 | 172.39 | 0.3987 | 939.2 | 671.2 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -5.83 | 332.29 | -3.02 | 166.70 | 0.2286 | 887.0 | 662.9 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -4.81 | 330.83 | -4.47 | 159.14 | 0.2192 | 1007.0 | 832.3 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -8.69 | 330.02 | -5.28 | 161.34 | 0.2858 | 842.0 | 707.3 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -7.50 | 329.98 | -5.33 | 159.74 | 0.2671 | 891.0 | 685.0 | |
| 0.00 | 2.52 | 0.00 | 1.31 | -10.43 | 329.93 | -5.38 | 162.85 | 0.3139 | 785.0 | 571.6 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -8.03 | 329.82 | -5.49 | 159.87 | 0.2765 | 895.0 | 725.6 | |
| 0.00 | 2.16 | 0.00 | 1.13 | -10.72 | 329.74 | -5.57 | 162.56 | 0.3194 | 816.0 | 717.5 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -10.98 | 329.52 | -5.79 | 162.16 | 0.3246 | 859.0 | 751.2 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -10.79 | 329.49 | -5.82 | 161.89 | 0.3217 | 874.0 | 655.3 | |
| 0.00 | 1.62 | 0.00 | 0.82 | -2.99 | 328.28 | -7.02 | 144.64 | 0.2120 | 768.0 | 607.1 | |
| 0.00 | 1.98 | 0.00 | 1.03 | -7.57 | 325.50 | -9.80 | 145.90 | 0.3024 | 911.0 | 813.5 | |
| 0.00 | 1.62 | 0.00 | 0.86 | -9.75 | 323.50 | -11.81 | 144.75 | 0.3509 | -880.0 | -713.3 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -10.02 | 322.86 | -12.45 | 143.75 | 0.3606 | -667.0 | -595.8 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -9.50 | 322.44 | -12.87 | 141.94 | 0.3578 | -854.0 | -705.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
