SDO HMI 2014-08-23 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.07 | 103.76 | 15.13 | 85.99 | 16.59 | 28.43 | 53.67 | 285.55 | 0.8032 | -467.1 | -204.8 | |
|
previous
or next observation for the same group /

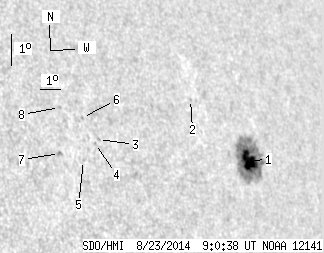

back to the solar disc SDO HMI 2014-08-23 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.07 | 95.57 | 15.13 | 80.05 | 16.48 | 28.94 | 54.18 | 285.35 | 0.8085 | -863.1 | -256.3 | |
| 0.00 | 0.81 | 0.00 | 0.65 | 18.61 | 26.70 | 51.94 | 288.23 | 0.7879 | -343.0 | -332.2 | |
| 0.00 | 1.44 | 0.00 | 1.05 | 17.79 | 21.84 | 47.08 | 287.85 | 0.7348 | 497.0 | 422.6 | |
| 0.00 | 1.08 | 0.00 | 0.78 | 17.68 | 21.66 | 46.90 | 287.73 | 0.7327 | 536.0 | 443.3 | |
| 0.00 | 0.99 | 0.00 | 0.71 | 17.21 | 20.95 | 46.19 | 287.20 | 0.7239 | 407.0 | 347.5 | |
| 0.00 | 0.99 | 0.00 | 0.71 | 18.52 | 21.35 | 46.59 | 288.93 | 0.7305 | 456.0 | 361.0 | |
| 0.00 | 1.62 | 0.00 | 1.14 | 17.52 | 19.95 | 45.19 | 287.79 | 0.7128 | 724.0 | 624.9 | |
| 0.00 | 1.26 | 0.00 | 0.90 | 18.92 | 20.42 | 45.66 | 289.64 | 0.7207 | 444.0 | 379.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
