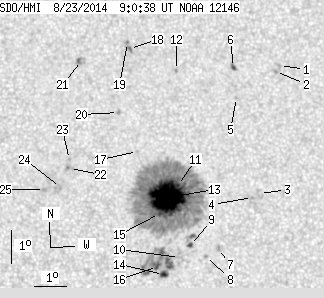

SDO HMI 2014-08-23 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.61 | 535.24 | 38.45 | 268.61 | 8.76 | 343.76 | 9.00 | 281.90 | 0.1599 | -947.1 | -318.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-23 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.64 | 12.82 | 347.45 | 12.69 | 296.06 | 0.2395 | -856.0 | -607.5 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 12.64 | 347.31 | 12.55 | 295.59 | 0.2362 | -1051.0 | -878.9 | |
| 0.00 | 3.96 | 0.00 | 2.00 | 8.95 | 346.65 | 11.89 | 280.31 | 0.2078 | 510.0 | 560.1 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 8.83 | 346.43 | 11.67 | 279.91 | 0.2037 | 815.0 | 651.2 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 11.88 | 346.04 | 11.28 | 294.65 | 0.2115 | 724.0 | 504.1 | |
| 1.08 | 3.60 | 0.55 | 1.82 | 12.80 | 345.99 | 11.23 | 298.65 | 0.2173 | 896.9 | 628.1 | |
| 0.00 | 2.52 | 0.00 | 1.27 | 7.31 | 345.32 | 10.56 | 272.51 | 0.1828 | -923.0 | -665.5 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 7.08 | 344.91 | 10.15 | 271.22 | 0.1757 | -1032.0 | -810.7 | |
| 1.26 | 8.09 | 0.63 | 4.07 | 7.42 | 344.45 | 9.69 | 273.28 | 0.1680 | -974.0 | -794.3 | |
| 0.00 | 9.26 | 0.00 | 4.65 | 7.07 | 344.10 | 9.34 | 271.14 | 0.1619 | 56.0 | 78.0 | |
| 0.27 | 423.46 | 0.14 | 212.51 | 9.25 | 344.10 | 9.34 | 284.47 | 0.1661 | -1105.3 | -466.9 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 12.74 | 344.18 | 9.42 | 302.61 | 0.1904 | -842.0 | -695.2 | |
| 67.79 | -11.00 | 34.02 | -11.00 | 8.89 | 343.78 | 9.02 | 282.73 | 0.1595 | -1533.7 | 999999 | |
| 3.24 | 55.83 | 1.62 | 27.98 | 6.56 | 343.60 | 8.84 | 267.84 | 0.1535 | 1081.8 | 408.3 | |
| 1.17 | -11.00 | 0.59 | -11.00 | 8.41 | 343.52 | 8.76 | 279.98 | 0.1536 | -1195.1 | 999999 | |
| 1.80 | -14.00 | 0.90 | -14.00 | 6.81 | 343.42 | 8.66 | 269.41 | 0.1502 | 1023.6 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 10.31 | 342.88 | 8.12 | 293.12 | 0.1518 | -788.0 | -593.2 | |
| 0.00 | 3.15 | 0.00 | 1.58 | 13.44 | 342.73 | 7.97 | 310.17 | 0.1772 | -1140.0 | -878.1 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 13.63 | 342.67 | 7.91 | 311.17 | 0.1785 | -1169.0 | -904.0 | |
| 0.00 | 2.07 | 0.00 | 1.04 | 11.50 | 342.32 | 7.56 | 301.80 | 0.1524 | -1099.0 | -833.2 | |
| 0.00 | 6.02 | 0.00 | 3.02 | 13.10 | 341.21 | 6.45 | 314.50 | 0.1541 | 490.0 | 781.3 | |
| 0.00 | 2.70 | 0.00 | 1.35 | 9.82 | 340.76 | 6.00 | 296.06 | 0.1152 | 804.0 | 690.5 | |
| 0.00 | 0.81 | 0.00 | 0.40 | 10.10 | 340.77 | 6.01 | 298.16 | 0.1174 | 849.0 | 674.6 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 9.25 | 340.47 | 5.71 | 292.32 | 0.1067 | 780.0 | 683.1 | |
| 0.00 | 2.43 | 0.00 | 1.21 | 9.20 | 339.98 | 5.22 | 293.64 | 0.0984 | 1048.0 | 800.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
