SDO HMI 2014-08-23 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.37 | 203.41 | 48.02 | 196.85 | -4.89 | 32.34 | 58.13 | 260.04 | 0.8605 | 168.5 | 257.8 | |
|
previous
or next observation for the same group /

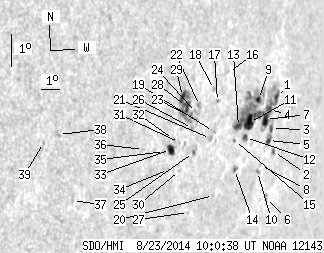

back to the solar disc SDO HMI 2014-08-23 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.70 | 120.92 | 2.80 | 121.62 | -4.36 | 34.75 | 60.54 | 261.16 | 0.8805 | 321.0 | 477.5 | |
| 1.08 | 2.25 | 1.13 | 2.36 | -6.04 | 34.83 | 60.62 | 259.31 | 0.8838 | 264.2 | 180.5 | |
| 1.53 | -1.00 | 1.58 | -1.00 | -5.30 | 34.58 | 60.37 | 260.08 | 0.8806 | 72.9 | 999999 | |
| 2.16 | -1.00 | 2.22 | -1.00 | -4.69 | 34.36 | 60.15 | 260.71 | 0.8778 | 375.2 | 999999 | |
| 1.89 | -1.00 | 1.96 | -1.00 | -5.66 | 34.45 | 60.24 | 259.65 | 0.8801 | 364.6 | 999999 | |
| 0.00 | 2.25 | 0.00 | 2.37 | -7.45 | 34.69 | 60.48 | 257.71 | 0.8850 | 459.0 | 360.8 | |
| 6.20 | -1.00 | 6.34 | -1.00 | -4.97 | 34.16 | 59.94 | 260.35 | 0.8766 | 559.1 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.65 | -6.39 | 34.09 | 59.88 | 258.75 | 0.8784 | 438.0 | 394.1 | |
| 2.43 | -1.00 | 2.43 | -1.00 | -4.30 | 33.64 | 59.43 | 261.00 | 0.8712 | 837.5 | 999999 | |
| 0.36 | 1.62 | 0.37 | 1.66 | -6.56 | 33.94 | 59.73 | 258.52 | 0.8775 | 487.0 | 430.9 | |
| 10.43 | -1.00 | 10.34 | -1.00 | -4.96 | 33.19 | 58.98 | 260.15 | 0.8685 | 823.8 | 999999 | |
| 1.71 | 3.15 | 1.69 | 3.11 | -5.41 | 33.02 | 58.81 | 259.61 | 0.8678 | 627.3 | 484.5 | |
| 3.69 | -1.00 | 3.59 | -1.00 | -5.02 | 32.55 | 58.34 | 259.95 | 0.8631 | 773.8 | 999999 | |
| 0.63 | 2.52 | 0.62 | 2.48 | -6.35 | 32.53 | 58.32 | 258.43 | 0.8653 | 652.9 | 503.0 | |
| 0.00 | 0.90 | 0.00 | 0.87 | -5.43 | 32.37 | 58.16 | 259.44 | 0.8623 | 631.0 | 577.2 | |
| 0.00 | 1.62 | 0.00 | 1.53 | -3.27 | 31.77 | 57.56 | 261.78 | 0.8533 | -273.0 | -187.9 | |
| 0.00 | 1.17 | 0.00 | 1.09 | -4.11 | 31.23 | 57.02 | 260.70 | 0.8499 | -305.0 | -261.9 | |
| 0.00 | 1.08 | 0.00 | 1.00 | -3.72 | 31.02 | 56.81 | 261.11 | 0.8473 | -293.0 | -257.2 | |
| 0.00 | 1.26 | 0.00 | 1.18 | -5.02 | 31.11 | 56.90 | 259.62 | 0.8505 | 654.0 | 652.3 | |
| 0.00 | 0.72 | 0.00 | 0.69 | -7.04 | 31.44 | 57.23 | 257.38 | 0.8572 | -274.0 | -232.8 | |
| 0.00 | 2.88 | 0.00 | 2.68 | -5.22 | 30.97 | 56.76 | 259.35 | 0.8496 | 762.0 | 570.7 | |
| 0.00 | 2.97 | 0.00 | 2.70 | -4.13 | 30.23 | 56.02 | 260.45 | 0.8408 | -358.0 | -188.6 | |
| 0.00 | 1.80 | 0.00 | 1.64 | -4.59 | 30.17 | 55.96 | 259.90 | 0.8411 | 340.0 | 250.0 | |
| 0.00 | 2.16 | 0.00 | 1.96 | -4.33 | 30.09 | 55.88 | 260.18 | 0.8398 | 239.0 | 124.1 | |
| 0.54 | 3.87 | 0.49 | 3.54 | -5.57 | 30.08 | 55.87 | 258.74 | 0.8421 | 715.0 | 560.8 | |
| 0.00 | 2.43 | 0.00 | 2.20 | -4.81 | 29.93 | 55.71 | 259.59 | 0.8392 | 225.0 | 164.1 | |
| 0.00 | 0.72 | 0.00 | 0.66 | -7.43 | 30.12 | 55.91 | 256.59 | 0.8463 | -347.0 | -344.5 | |
| 4.85 | 29.04 | 4.34 | 25.90 | -4.09 | 29.52 | 55.31 | 260.34 | 0.8341 | -626.7 | -455.7 | |
| 4.23 | -28.00 | 3.75 | -28.00 | -3.75 | 29.27 | 55.06 | 260.67 | 0.8311 | -751.2 | 999999 | |
| 0.00 | 1.17 | 0.00 | 1.05 | -6.05 | 29.39 | 55.18 | 258.00 | 0.8368 | -192.0 | -164.0 | |
| 0.00 | 0.81 | 0.00 | 0.72 | -5.17 | 29.27 | 55.06 | 259.00 | 0.8338 | -256.0 | -195.0 | |
| 0.00 | 1.44 | 0.00 | 1.27 | -5.05 | 28.93 | 54.72 | 259.06 | 0.8304 | -467.0 | -385.2 | |
| 4.94 | 7.37 | 4.37 | 6.51 | -5.34 | 28.81 | 54.60 | 258.68 | 0.8298 | -647.5 | -430.7 | |
| 0.00 | 0.90 | 0.00 | 0.80 | -5.96 | 28.79 | 54.58 | 257.95 | 0.8309 | -323.0 | -368.3 | |
| 0.00 | 0.99 | 0.00 | 0.87 | -5.37 | 28.50 | 54.29 | 258.57 | 0.8269 | -626.0 | -481.0 | |
| 0.00 | 0.54 | 0.00 | 0.46 | -5.20 | 27.39 | 53.18 | 258.49 | 0.8158 | -631.0 | -559.7 | |
| 0.00 | 0.90 | 0.00 | 0.72 | -6.45 | 24.05 | 49.84 | 256.00 | 0.7849 | -567.0 | -454.8 | |
| 0.00 | 2.07 | 0.00 | 1.60 | -4.32 | 23.16 | 48.95 | 258.40 | 0.7699 | -639.0 | -362.2 | |
| 0.00 | 1.26 | 0.00 | 0.96 | -4.51 | 22.48 | 48.27 | 257.97 | 0.7630 | -457.0 | -382.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
