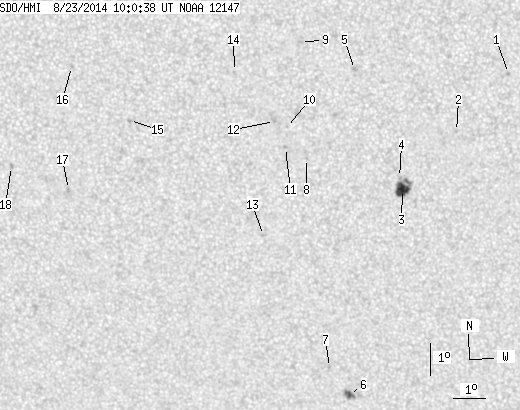

SDO HMI 2014-08-23 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.19 | 50.46 | 8.45 | 26.21 | -9.81 | 331.55 | -2.66 | 171.05 | 0.2997 | 626.6 | 456.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-23 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.59 | -5.96 | 337.14 | 2.93 | 192.79 | 0.2303 | 837.0 | 762.9 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -7.76 | 335.55 | 1.34 | 185.22 | 0.2565 | 797.0 | 649.0 | |
| 12.41 | 20.68 | 6.41 | 10.68 | -9.58 | 333.90 | -0.31 | 178.92 | 0.2862 | 1076.3 | 847.4 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -9.20 | 333.81 | -0.40 | 178.57 | 0.2799 | 563.0 | 637.1 | |
| 0.00 | 2.88 | 0.00 | 1.46 | -5.82 | 332.44 | -1.77 | 172.11 | 0.2245 | 908.0 | 686.2 | |
| 3.78 | 7.01 | 2.04 | 3.78 | -16.20 | 332.21 | -2.00 | 175.12 | 0.3965 | 965.2 | 703.4 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -15.32 | 331.59 | -2.62 | 173.36 | 0.3833 | -824.0 | -550.2 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -8.61 | 330.96 | -3.26 | 168.19 | 0.2755 | 763.0 | 591.7 | |
| 0.00 | 1.71 | 0.00 | 0.87 | -4.99 | 330.80 | -3.41 | 164.03 | 0.2164 | 954.0 | 714.3 | |
| 0.00 | 0.63 | 0.00 | 0.32 | -7.64 | 330.35 | -3.86 | 165.17 | 0.2619 | 874.0 | 736.3 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -8.27 | 330.31 | -3.90 | 165.64 | 0.2723 | 805.0 | 698.7 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -7.46 | 329.99 | -4.23 | 163.64 | 0.2605 | 975.0 | 741.4 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -11.06 | 329.60 | -4.61 | 165.67 | 0.3205 | 719.0 | 460.7 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -5.91 | 328.78 | -5.43 | 157.05 | 0.2426 | 632.0 | 572.1 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -7.48 | 325.52 | -8.69 | 148.90 | 0.2912 | 881.0 | 804.9 | |
| 0.00 | 1.80 | 0.00 | 0.93 | -5.83 | 323.76 | -10.45 | 140.60 | 0.2855 | -718.0 | -629.9 | |
| 0.00 | 2.07 | 0.00 | 1.09 | -9.69 | 323.56 | -10.65 | 147.40 | 0.3395 | -921.0 | -668.5 | |
| 0.00 | 1.71 | 0.00 | 0.90 | -9.01 | 321.80 | -12.41 | 142.09 | 0.3469 | -792.0 | -680.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
