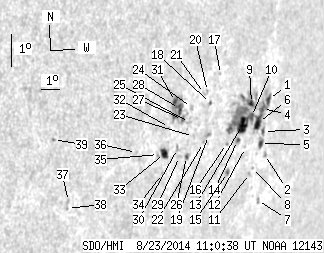

SDO HMI 2014-08-23 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.81 | 190.08 | 49.41 | 186.79 | -4.86 | 32.47 | 58.80 | 260.22 | 0.8662 | 195.1 | 260.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-23 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.15 | 105.08 | 3.32 | 107.07 | -4.33 | 34.76 | 61.10 | 261.31 | 0.8850 | 285.5 | 529.8 | |
| 0.00 | 2.16 | 0.00 | 2.31 | -6.03 | 34.79 | 61.12 | 259.43 | 0.8878 | 405.0 | 233.4 | |
| 0.00 | 3.42 | 0.00 | 3.61 | -5.30 | 34.59 | 60.93 | 260.20 | 0.8851 | -6.0 | 8.0 | |
| 2.88 | -1.00 | 3.01 | -1.00 | -4.57 | 34.42 | 60.75 | 260.97 | 0.8826 | 485.4 | 999999 | |
| 2.43 | 4.85 | 2.56 | 5.12 | -5.65 | 34.46 | 60.80 | 259.77 | 0.8846 | 309.9 | 241.0 | |
| 7.28 | -1.00 | 7.58 | -1.00 | -4.98 | 34.23 | 60.56 | 260.48 | 0.8817 | 486.1 | 999999 | |
| 0.00 | 2.16 | 0.00 | 2.32 | -7.44 | 34.64 | 60.98 | 257.83 | 0.8889 | 469.0 | 367.0 | |
| 0.00 | 0.90 | 0.00 | 0.94 | -6.36 | 34.09 | 60.43 | 258.91 | 0.8828 | 455.0 | 383.4 | |
| 2.43 | -1.00 | 2.48 | -1.00 | -4.34 | 33.70 | 60.04 | 261.09 | 0.8764 | 828.9 | 999999 | |
| 2.52 | -1.00 | 2.58 | -1.00 | -4.74 | 33.76 | 60.09 | 260.64 | 0.8775 | 674.8 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.84 | -6.53 | 33.94 | 60.28 | 258.69 | 0.8818 | 541.0 | 440.9 | |
| 0.00 | 0.54 | 0.00 | 0.55 | -5.68 | 33.54 | 59.87 | 259.55 | 0.8771 | 528.0 | 432.0 | |
| 12.31 | -1.00 | 12.45 | -1.00 | -4.93 | 33.23 | 59.57 | 260.31 | 0.8735 | 771.3 | 999999 | |
| 1.17 | 2.52 | 1.18 | 2.54 | -5.40 | 33.00 | 59.34 | 259.74 | 0.8723 | 606.2 | 520.4 | |
| 1.08 | 2.79 | 1.08 | 2.78 | -6.35 | 32.57 | 58.91 | 258.57 | 0.8703 | 626.8 | 526.0 | |
| 0.00 | 1.08 | 0.00 | 1.07 | -5.43 | 32.35 | 58.69 | 259.56 | 0.8668 | 590.0 | 589.8 | |
| 0.00 | 0.63 | 0.00 | 0.60 | -3.23 | 31.73 | 58.07 | 261.93 | 0.8578 | -245.0 | -181.1 | |
| 0.45 | 1.53 | 0.43 | 1.45 | -4.08 | 31.24 | 57.58 | 260.86 | 0.8549 | -282.0 | -239.2 | |
| 0.00 | 2.70 | 0.00 | 2.57 | -5.06 | 31.25 | 57.59 | 259.73 | 0.8567 | 707.0 | 598.1 | |
| 0.00 | 1.35 | 0.00 | 1.27 | -3.68 | 31.03 | 57.37 | 261.27 | 0.8523 | -224.0 | -203.3 | |
| 0.00 | 1.44 | 0.00 | 1.35 | -3.73 | 30.86 | 57.20 | 261.18 | 0.8509 | -340.0 | -236.1 | |
| 0.00 | 0.90 | 0.00 | 0.85 | -5.25 | 30.99 | 57.33 | 259.45 | 0.8547 | 657.0 | 556.4 | |
| 0.00 | 1.17 | 0.00 | 1.09 | -5.01 | 30.39 | 56.73 | 259.60 | 0.8489 | 351.0 | 281.5 | |
| 0.00 | 2.25 | 0.00 | 2.07 | -4.09 | 30.17 | 56.51 | 260.61 | 0.8452 | -367.0 | -216.8 | |
| 0.00 | 1.89 | 0.00 | 1.74 | -4.54 | 30.11 | 56.45 | 260.07 | 0.8455 | 211.0 | 156.8 | |
| 0.99 | 2.79 | 0.92 | 2.58 | -5.59 | 30.09 | 56.42 | 258.84 | 0.8472 | 691.8 | 596.1 | |
| 0.99 | 27.33 | 0.90 | 24.69 | -4.41 | 29.71 | 56.05 | 260.13 | 0.8416 | -375.9 | -502.2 | |
| 4.58 | -27.00 | 4.15 | -27.00 | -4.05 | 29.51 | 55.85 | 260.51 | 0.8390 | -634.9 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.57 | -5.55 | 29.69 | 56.03 | 258.80 | 0.8436 | 388.0 | 378.7 | |
| 0.00 | 2.52 | 0.00 | 2.29 | -5.29 | 29.55 | 55.89 | 259.07 | 0.8417 | 81.0 | 116.9 | |
| 2.61 | -27.00 | 2.34 | -27.00 | -3.81 | 29.27 | 55.60 | 260.73 | 0.8363 | -791.5 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.65 | -4.59 | 29.02 | 55.36 | 259.76 | 0.8355 | -557.0 | -503.6 | |
| 4.94 | 7.01 | 4.43 | 6.28 | -5.37 | 28.85 | 55.19 | 258.80 | 0.8355 | -652.9 | -421.5 | |
| 0.00 | 0.99 | 0.00 | 0.89 | -5.99 | 28.83 | 55.17 | 258.07 | 0.8365 | -521.0 | -420.1 | |
| 0.00 | 1.80 | 0.00 | 1.60 | -5.37 | 28.53 | 54.87 | 258.72 | 0.8324 | -628.0 | -398.0 | |
| 0.00 | 1.35 | 0.00 | 1.16 | -5.19 | 27.35 | 53.69 | 258.63 | 0.8208 | -417.0 | -356.5 | |
| 0.00 | 1.44 | 0.00 | 1.16 | -6.39 | 24.12 | 50.45 | 256.27 | 0.7911 | -599.0 | -465.6 | |
| 0.00 | 0.99 | 0.00 | 0.80 | -6.60 | 24.10 | 50.44 | 256.00 | 0.7915 | -598.0 | -524.6 | |
| 0.00 | 1.26 | 0.00 | 0.98 | -4.38 | 23.18 | 49.51 | 258.50 | 0.7762 | -559.0 | -412.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
