SDO HMI 2014-08-23 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.34 | 98.14 | 15.30 | 85.76 | 16.57 | 28.48 | 55.92 | 285.37 | 0.8250 | -397.1 | -163.8 | |
|
previous
or next observation for the same group /

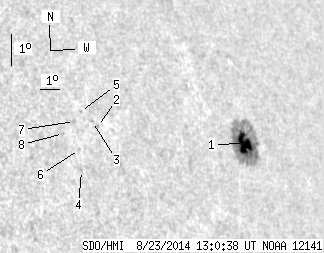

back to the solar disc SDO HMI 2014-08-23 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.34 | 91.75 | 15.30 | 81.01 | 16.51 | 28.92 | 56.36 | 285.25 | 0.8295 | -811.6 | -207.1 | |
| 0.00 | 1.08 | 0.00 | 0.81 | 17.73 | 21.67 | 49.10 | 287.47 | 0.7571 | 559.0 | 513.5 | |
| 0.00 | 0.99 | 0.00 | 0.74 | 17.90 | 21.49 | 48.92 | 287.72 | 0.7554 | 404.0 | 320.4 | |
| 0.00 | 0.99 | 0.00 | 0.73 | 16.46 | 20.45 | 47.89 | 285.94 | 0.7422 | 381.0 | 316.4 | |
| 0.00 | 0.72 | 0.00 | 0.54 | 18.25 | 21.04 | 48.47 | 288.25 | 0.7509 | 380.0 | 420.2 | |
| 0.00 | 0.27 | 0.00 | 0.20 | 17.11 | 20.57 | 48.01 | 286.79 | 0.7443 | 548.0 | 532.0 | |
| 0.00 | 1.71 | 0.00 | 1.27 | 17.98 | 20.64 | 48.08 | 287.94 | 0.7463 | 591.0 | 435.2 | |
| 0.00 | 0.63 | 0.00 | 0.46 | 17.66 | 20.01 | 47.44 | 287.61 | 0.7387 | 699.0 | 648.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
