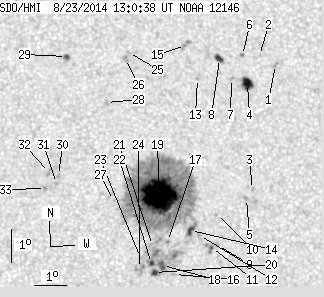

SDO HMI 2014-08-23 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 100.03 | 545.60 | 50.62 | 275.80 | 8.84 | 343.90 | 11.34 | 280.02 | 0.1993 | -733.1 | -322.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-23 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.52 | 0.00 | 1.30 | 12.71 | 347.65 | 15.08 | 292.29 | 0.2756 | -867.0 | -767.9 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 13.00 | 347.15 | 14.59 | 293.92 | 0.2697 | -656.0 | -541.1 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 8.94 | 346.72 | 14.16 | 278.93 | 0.2457 | 739.0 | 596.8 | |
| 8.72 | 12.22 | 4.47 | 6.26 | 12.16 | 346.72 | 14.15 | 291.48 | 0.2580 | -1029.1 | -612.3 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 8.67 | 346.52 | 13.96 | 277.93 | 0.2418 | 935.0 | 789.1 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 13.02 | 346.60 | 14.04 | 294.73 | 0.2614 | -827.0 | -623.4 | |
| 0.00 | 2.16 | 0.00 | 1.10 | 12.33 | 346.21 | 13.65 | 292.75 | 0.2512 | 506.0 | 288.5 | |
| 3.41 | 5.21 | 1.75 | 2.67 | 12.95 | 345.86 | 13.30 | 295.57 | 0.2497 | 869.1 | 503.0 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 7.27 | 345.56 | 12.99 | 272.15 | 0.2242 | -863.0 | -692.9 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 8.21 | 345.56 | 12.99 | 276.35 | 0.2249 | 685.0 | 408.4 | |
| 0.72 | 5.30 | 0.37 | 2.69 | 7.22 | 345.37 | 12.80 | 271.91 | 0.2210 | -829.4 | -674.1 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 7.59 | 345.00 | 12.44 | 273.67 | 0.2149 | -600.0 | -439.5 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 12.36 | 345.13 | 12.57 | 294.47 | 0.2346 | -805.0 | -619.0 | |
| 2.97 | 418.04 | 1.50 | 211.22 | 7.75 | 344.73 | 12.16 | 274.47 | 0.2104 | -1009.1 | -468.2 | |
| 0.00 | 5.30 | 0.00 | 2.70 | 13.37 | 344.80 | 12.24 | 298.97 | 0.2368 | 1043.0 | 716.3 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 6.43 | 344.19 | 11.63 | 268.02 | 0.2013 | 785.0 | 594.4 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 7.44 | 344.00 | 11.44 | 273.07 | 0.1978 | -845.0 | -725.5 | |
| 2.97 | 40.98 | 1.50 | 20.70 | 6.71 | 343.82 | 11.26 | 269.36 | 0.1948 | 954.2 | 287.8 | |
| 75.84 | -14.00 | 38.31 | -14.00 | 8.84 | 343.79 | 11.23 | 280.27 | 0.1964 | -1398.7 | 999999 | |
| 2.25 | 4.40 | 1.13 | 2.22 | 6.51 | 343.57 | 11.01 | 268.23 | 0.1907 | 1087.0 | 834.4 | |
| 0.00 | 7.73 | 0.00 | 3.90 | 7.33 | 343.53 | 10.97 | 272.56 | 0.1897 | -141.0 | -112.0 | |
| 1.80 | -18.00 | 0.91 | -18.00 | 6.78 | 343.48 | 10.92 | 269.67 | 0.1890 | 1003.5 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 6.97 | 343.15 | 10.58 | 270.65 | 0.1831 | -245.0 | -134.4 | |
| 0.00 | 8.00 | 0.00 | 4.03 | 6.64 | 343.11 | 10.54 | 268.82 | 0.1826 | 806.0 | 737.4 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 13.20 | 342.98 | 10.42 | 302.11 | 0.2088 | -814.0 | -715.7 | |
| 0.00 | 3.32 | 0.00 | 1.68 | 13.02 | 342.88 | 10.32 | 301.60 | 0.2058 | -955.0 | -833.7 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 8.72 | 342.35 | 9.79 | 280.86 | 0.1719 | -648.0 | -503.3 | |
| 0.00 | 2.43 | 0.00 | 1.22 | 11.70 | 342.23 | 9.67 | 297.09 | 0.1855 | -940.0 | -668.9 | |
| 1.35 | 3.15 | 0.68 | 1.58 | 13.12 | 341.02 | 8.46 | 307.12 | 0.1805 | 972.6 | 789.7 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 9.51 | 340.66 | 8.10 | 288.13 | 0.1469 | 750.0 | 679.1 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 9.27 | 340.59 | 8.03 | 286.66 | 0.1446 | 754.0 | 529.7 | |
| 0.00 | 2.88 | 0.00 | 1.44 | 9.61 | 340.39 | 7.82 | 289.34 | 0.1429 | 970.0 | 825.1 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 9.12 | 340.25 | 7.69 | 286.30 | 0.1383 | 878.0 | 775.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
